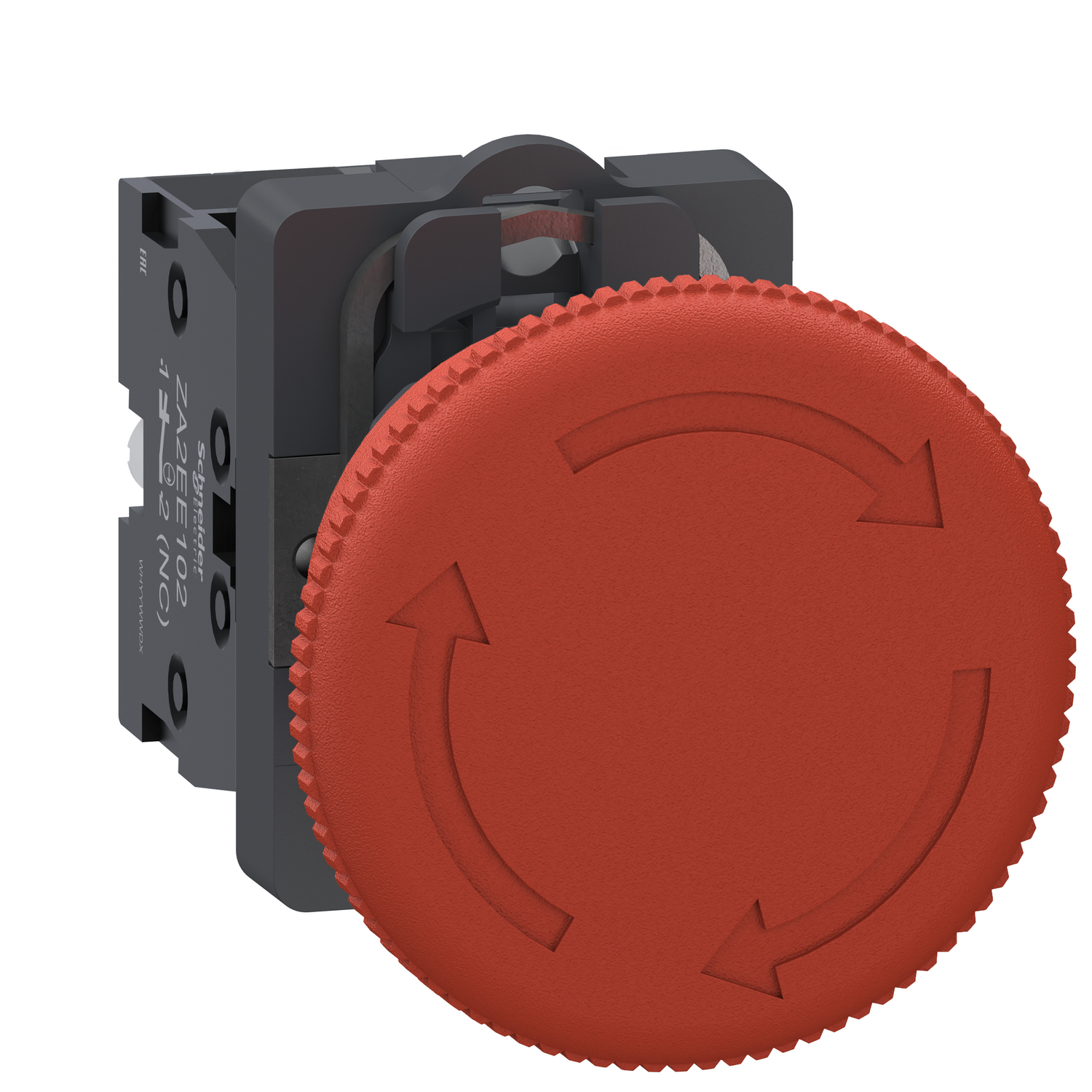

Complete emergency switching off push button, Easy Harmony XA2, plastic head, 22mm, turn to release, 60mm, 1NC, red
Manufacturer: Schneider Electric
SKU: XA2AS642
GTIN: 3606487513636
This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. It is a red Emergency switching off pushbutton with a mushroom head that operates using a spring return-impulse mechanism. This mushroom-headed pushbutton provides an ergonomic interface for controlling machines. It has 1 NC contact with slow-break operation. It provides an ergonomic interface for controlling machines. This Emergency switching off pushbutton features a 60mm diameter plastic mushroom head (turn-to-release push operation). This pushbutton meets CE, CCC, and UKCA certifications and conforms to GB 14048.1, IEC 60947-1, GB 14048.5, and IEC 60947-5-1 standards. With its IP65 rating, the pushbutton is resistant to impact, dust, water, and vibration, making it suitable for operation in harsh environments. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connection. The Easy Harmony XA2 is a fit-for-purpose range at an affordable price without compromising on ease, robustness, availability, or services.
Availability: Out of stock
Old price: $93.39 inc GST
$5.84 inc GST
This product has a minimum quantity of 10
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Mounting diameter 22.5 mm
Product or component type complete emergency switching off push-button
Bezel material plastic
Range of product Easy Harmony XA2
Device short name XA2
Component name XA2A
Device presentation complete product
Sale per indivisible quantity 1
Complementary
Short-circuit protection 10 A gL fuse conforming to IEC 60269-1
Fixing center >= 30 x 40 mm (panel) - thickness: 1-5 mm
Shape of signaling unit head round
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Operator profile red mushroom Ø 60 mm
Type of operator turn to release
Width 60 mm
Depth 74.0 mm
Mechanical durability 100000 cycles
Tightening torque 0.8-1.2 N.m
Positive opening with NC contact
Net weight 0.067 kg
Connections - terminals screw clamp terminal, <= 2 x 1.5 mm², screw clamp terminal, <= 1 x 2.5 mm², screw clamp terminal, >= 1 x 0.5 mm², Faston terminals, connection size: 6.3 mm
Contacts type and composition 1 NC
[Ui] rated insulation voltage 600 V conforming to IEC 60947-1
Reset turn to release
Height 60 mm
Fixing mode fixing nut recommended torque: 2.2 N.m (+/- 0.2 N.m)
Cap/operator or lens colour red
Electrical durability 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1, 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1
[Ie] rated operational current 3 A at 240 V, AC-15, A600, 0.27 A at 250 V, DC-13, Q600
Contact operation slow-break
Operating position any position
Electrical reliability λ < 10exp(-8) at 24 V, 5 mA conforming to IEC 60947-5-4
Device mounting fixing hole - diameter: 22.5 mm
Environment
Standards GB 14048.1, IEC 60947-1, IEC 60947-5-1, GB 14048.5
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Overvoltage category class I conforming to IEC 536
IK degree of protection IK07
Ambient air temperature for operation -25-55 °C
IP degree of protection IP65 conforming to IEC 60068-2-27
Protective treatment TC
Product certifications CCC, CE, UKCA
Ambient air temperature for storage -40-70 °C
Contractual warranty
Warranty 18
