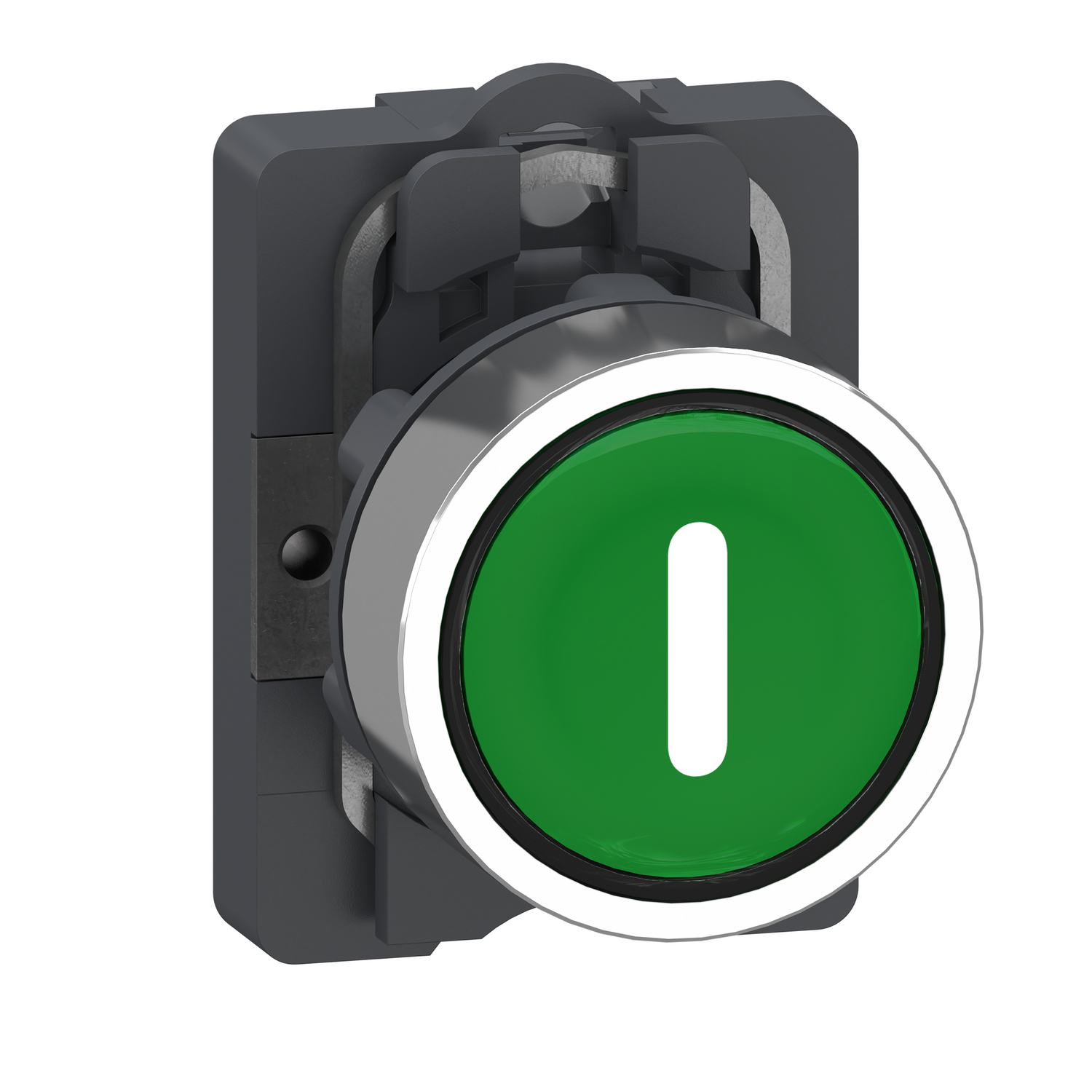

Complete push button with symbol, Easy Harmony XA2, plastic head, 22mm, green, vertical line, 1NO, spring return, marked
Manufacturer: Schneider Electric
SKU: XA2AA3311
GTIN: 3606487513247
This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. It is a modular, flush green pushbutton marked with “I” that operates using a spring-return impulse mechanism. This flush pushbutton provides an ergonomic interface for controlling machines. It has 1 NO contact with slow-break operation. It provides an ergonomic interface for controlling machines and, due to its clear color, is easily distinguishable from a distance. This is a plastic pushbutton with a metallic-look ring design bezel. This pushbutton meets CE, CCC, and UKCA certifications and conforms to GB 14048.1, IEC 60947-1, GB 14048.5, and IEC 60947-5-1 standards. With its IP65 rating, the pushbutton is resistant to impact, dust, water, and vibration, making it suitable for operation in harsh environments. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connection. The Easy Harmony XA2 is a fit-for-purpose range at an affordable price without compromising on ease, robustness, availability, or services.
Availability: Out of stock
Old price: $66.66 inc GST
$4.17 inc GST
This product has a minimum quantity of 10
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Product or component type complete push-button
Bezel material plastic
Range of product Easy Harmony XA2
Device short name XA2
Component name XA2A
Fixing collar material plastic
Device presentation complete product
Complementary
Short-circuit protection 10 A gL fuse conforming to IEC 60269-1
Fixing center >= 30 x 40 mm (panel) - thickness: 1-5 mm
Mounting diameter 22.5 mm
Shape of signaling unit head round
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-1
Operator profile green flush, I (white)
Type of operator spring return
Width 30 mm
Depth 54.5 mm
Mechanical durability 1500000 cycles
Tightening torque 0.8-1.2 N.m
Protective treatment TC
[Ith] conventional free air thermal current 10 A
Net weight 0.031 kg
Connections - terminals screw clamp terminal, <= 2 x 1.5 mm², screw clamp terminal, <= 1 x 2.5 mm², screw clamp terminal, >= 1 x 0.5 mm², Faston terminals, connection size: 6.3 mm
Contacts type and composition 1 NO
[Ui] rated insulation voltage 600 V conforming to IEC 60947-1
Height 43 mm
Fixing mode fixing nut: 2-2.4 N.m
Cap/operator or lens colour green
Electrical durability 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1, 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1
Sale per indivisible quantity 1
[Ie] rated operational current 3 A at 240 V, AC-15, A600, 0.27 A at 250 V, DC-13, Q600
Contact operation slow-break
Operating position any position
Electrical reliability λ < 10exp(-8) at 24 V and 5 mA conforming to IEC 60947-5-4
Environment
Standards GB 14048.1, IEC 60947-1, GB 14048.5, IEC 60947-5-1
Shock resistance 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27, 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
Vibration resistance 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Overvoltage category class I conforming to IEC 536
IK degree of protection IK03 conforming to IEC 60529
Ambient air temperature for operation -25-55 °C
IP degree of protection IP65 conforming to IEC 60529
Product certifications CCC, CE, UKCA
Ambient air temperature for storage -40-70 °C
Contractual warranty
Warranty 18
