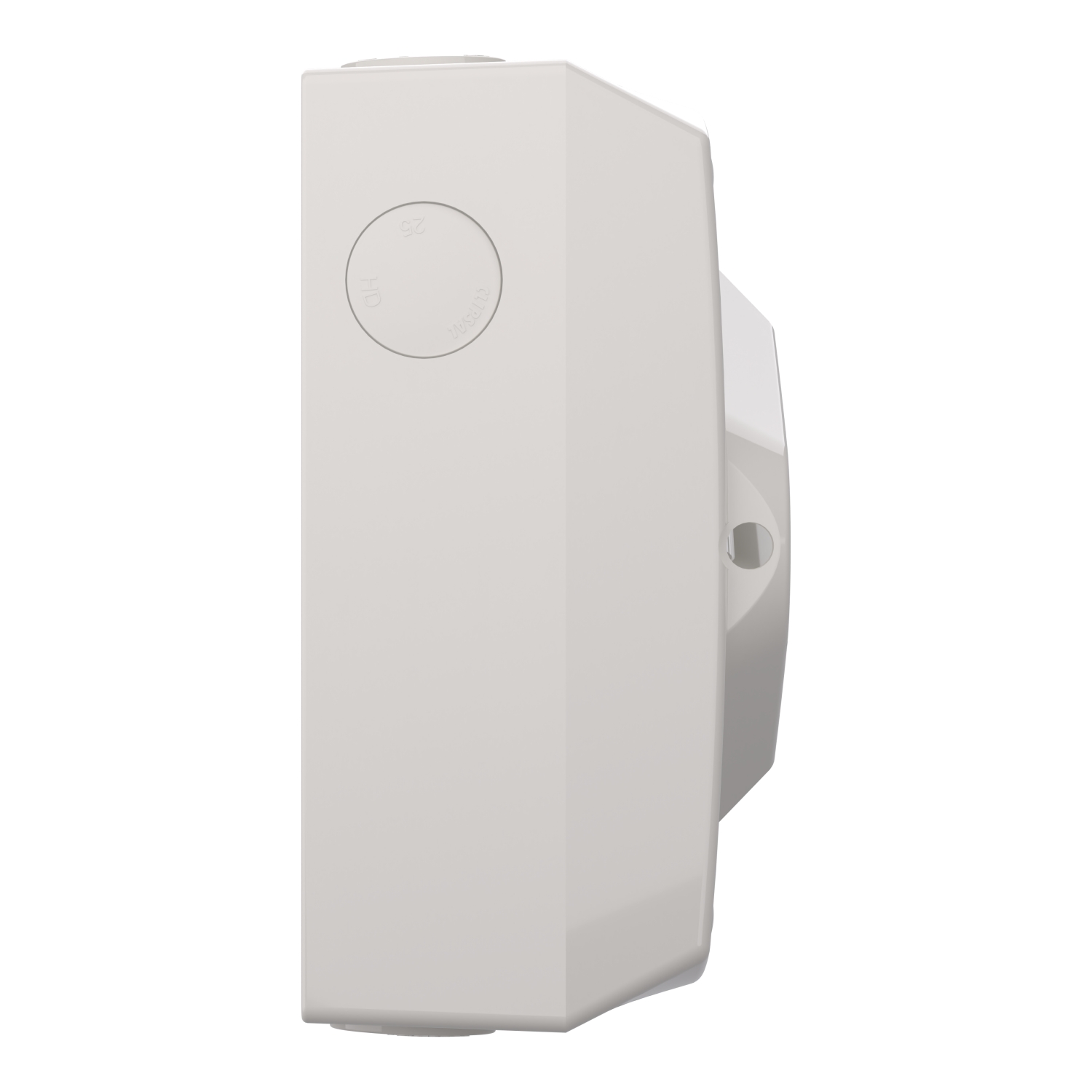

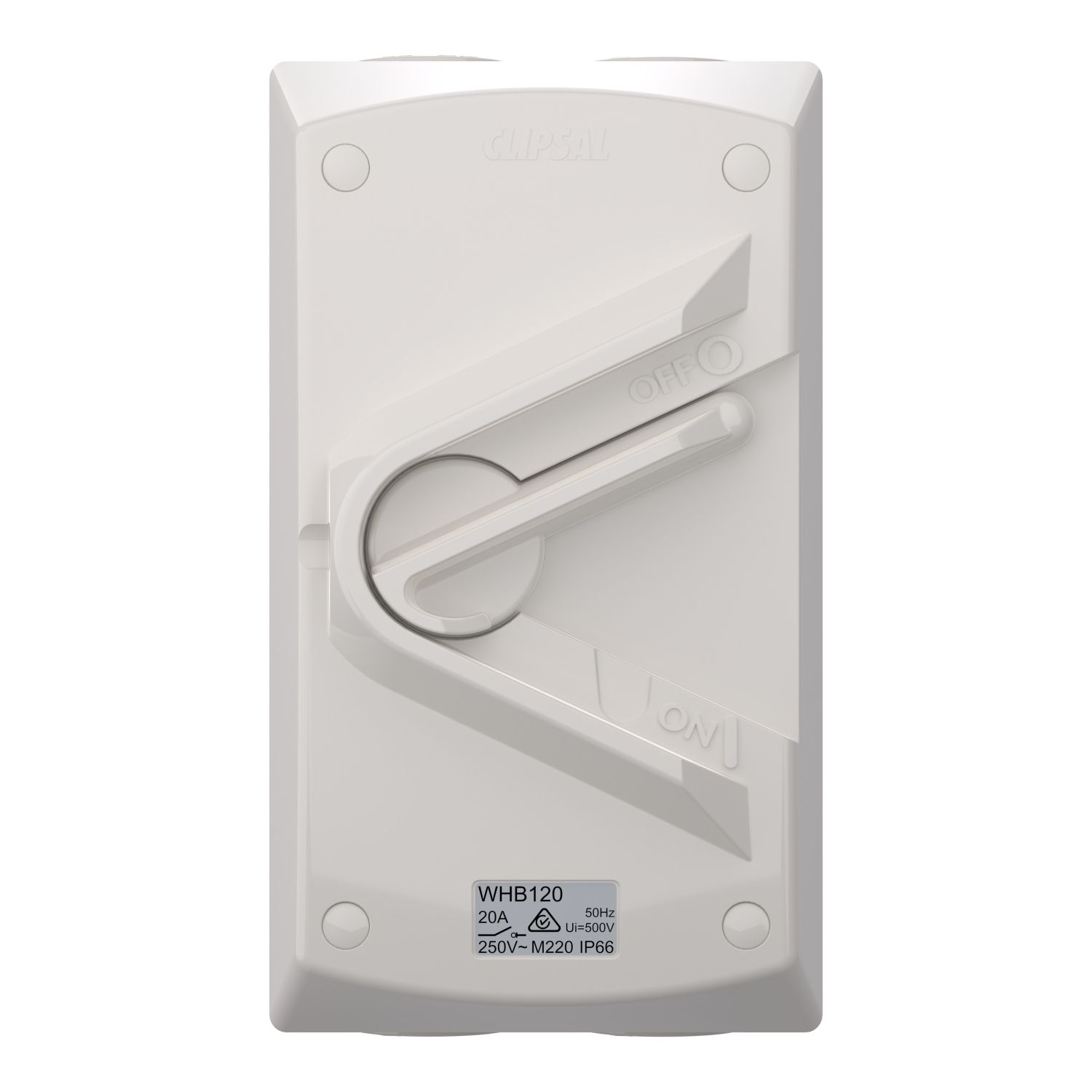

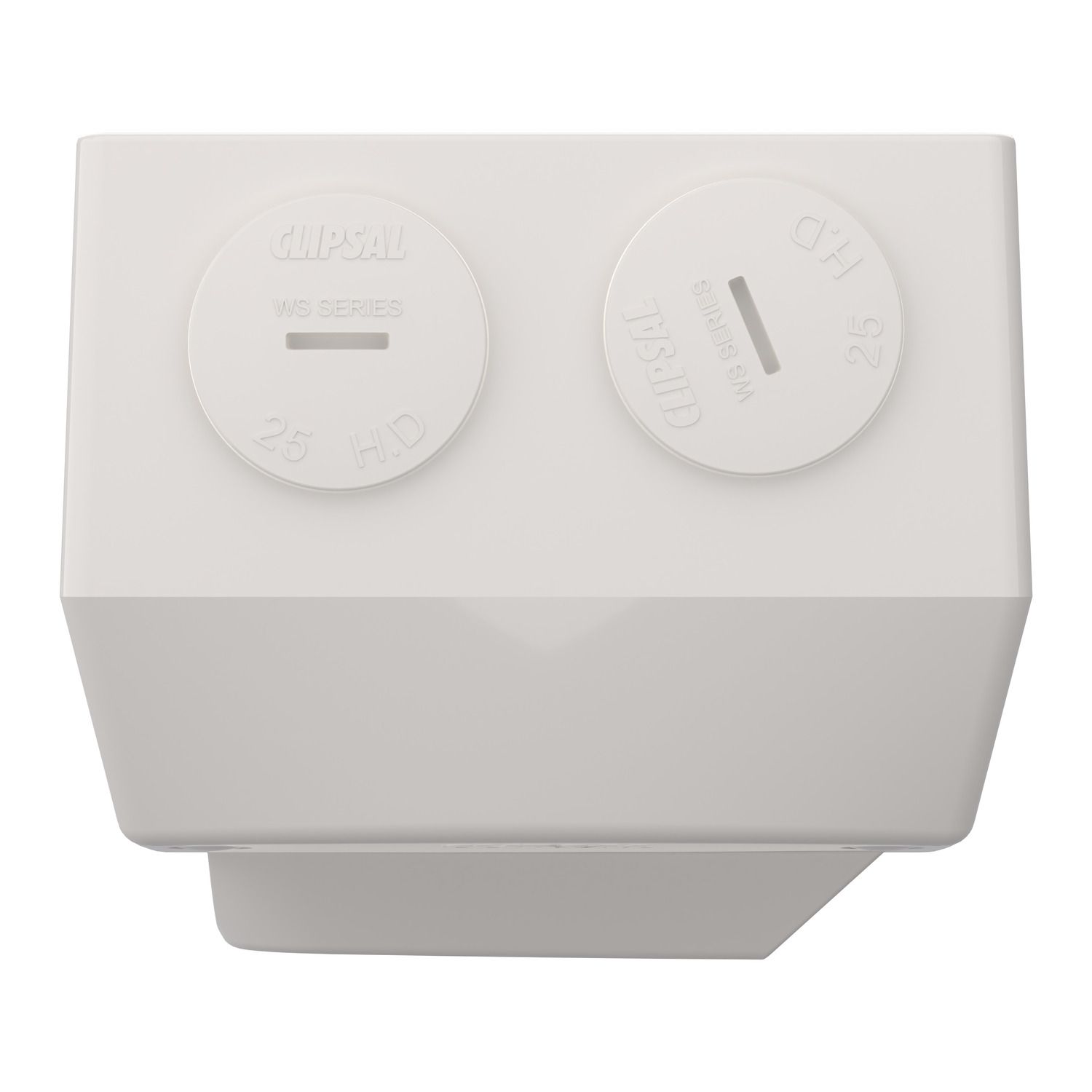

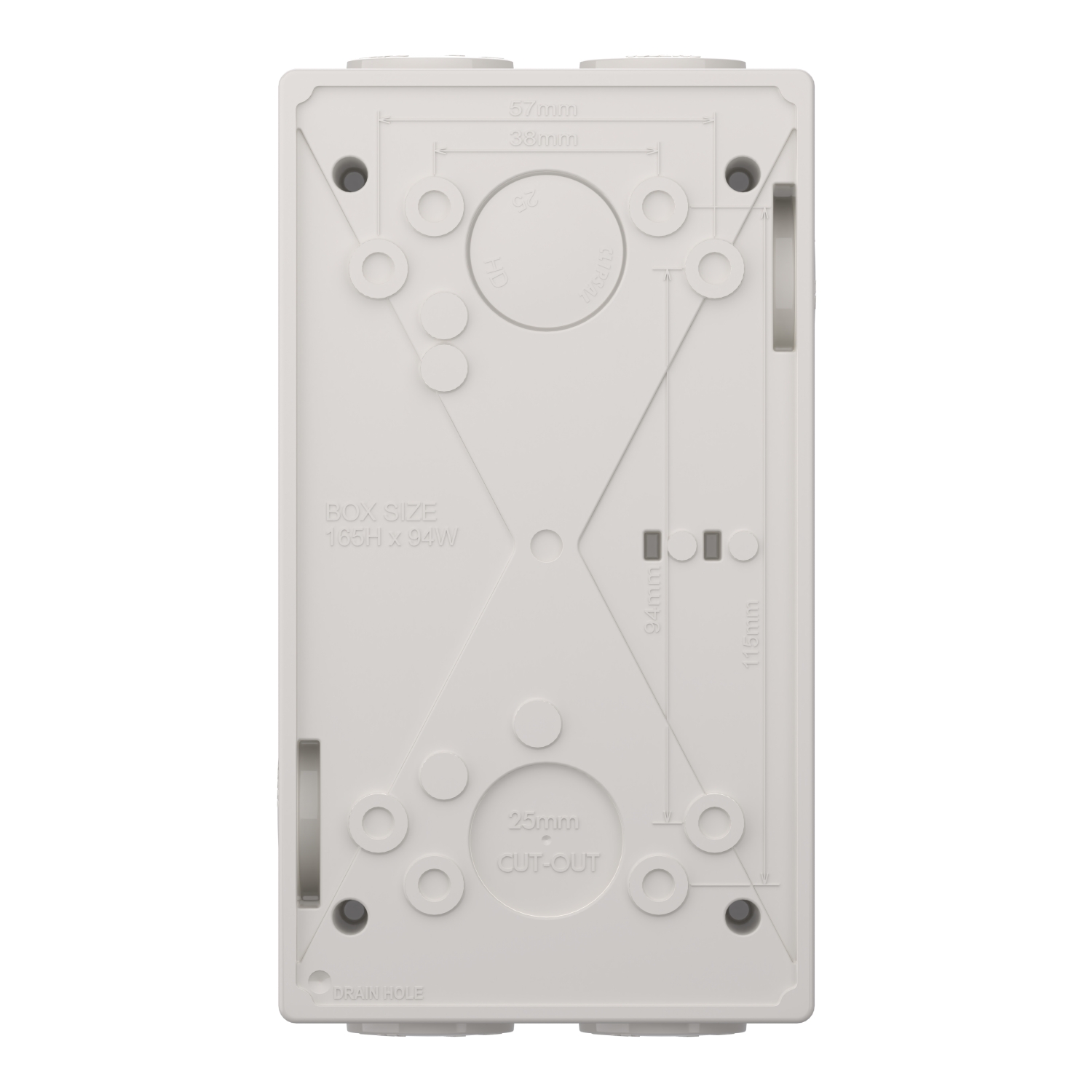

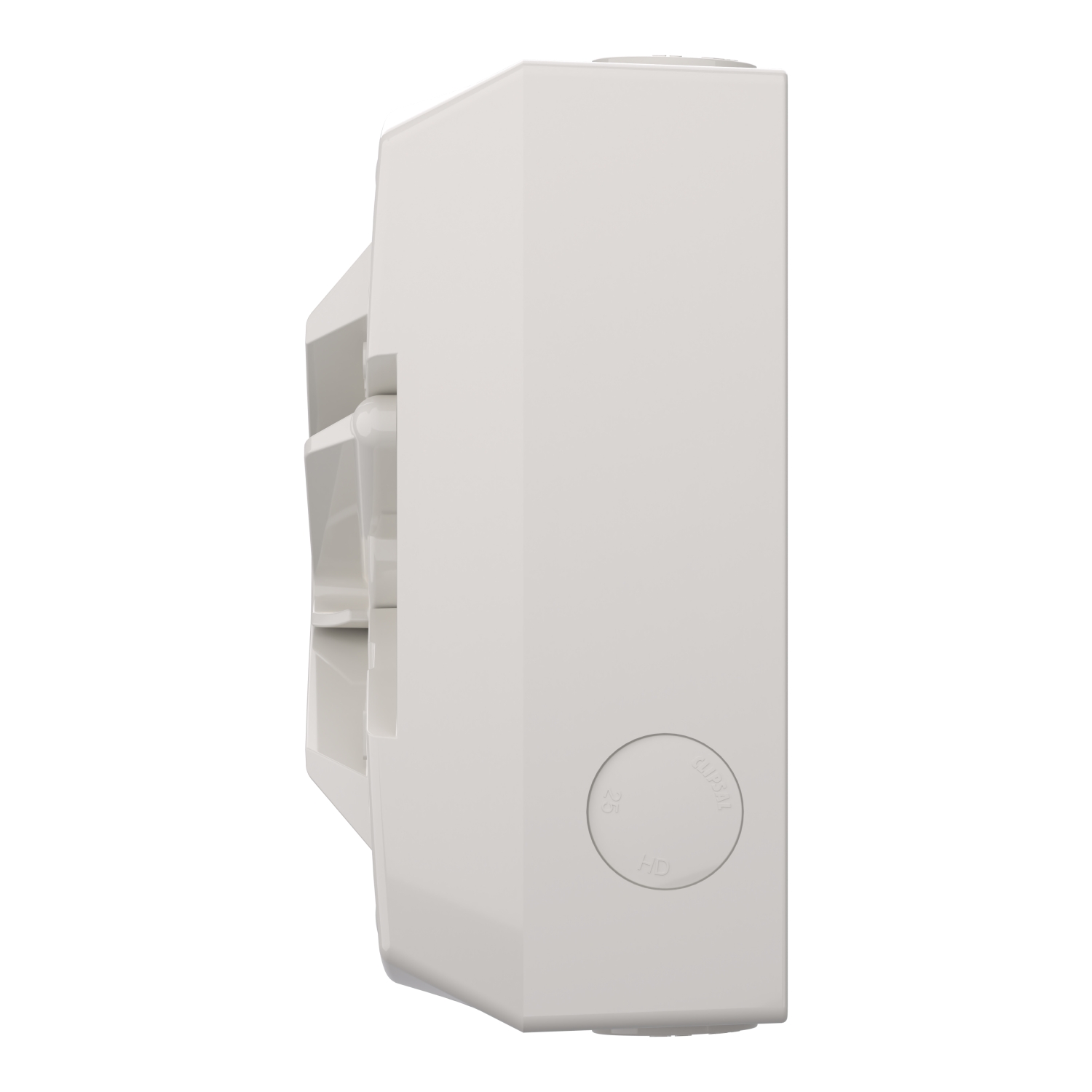

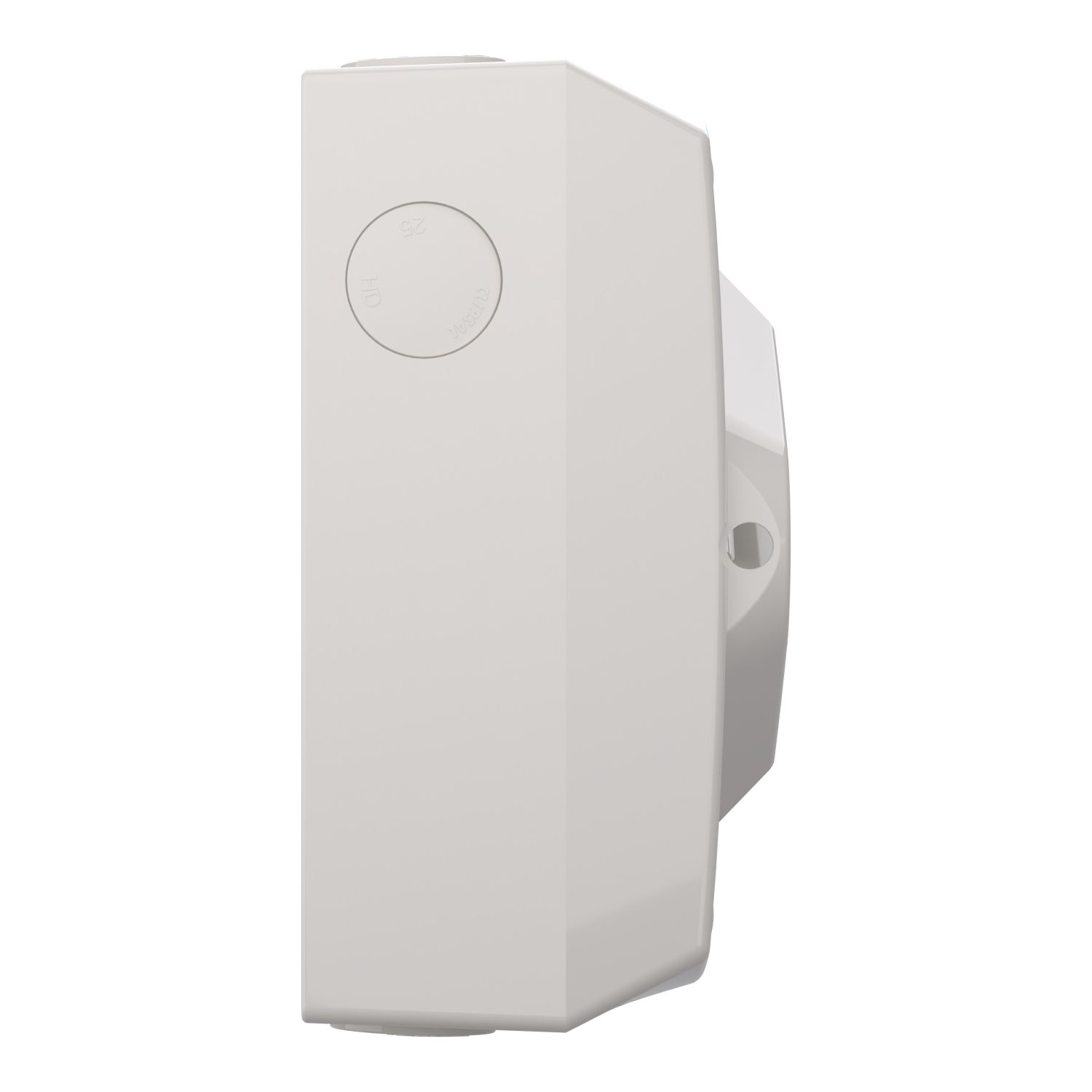

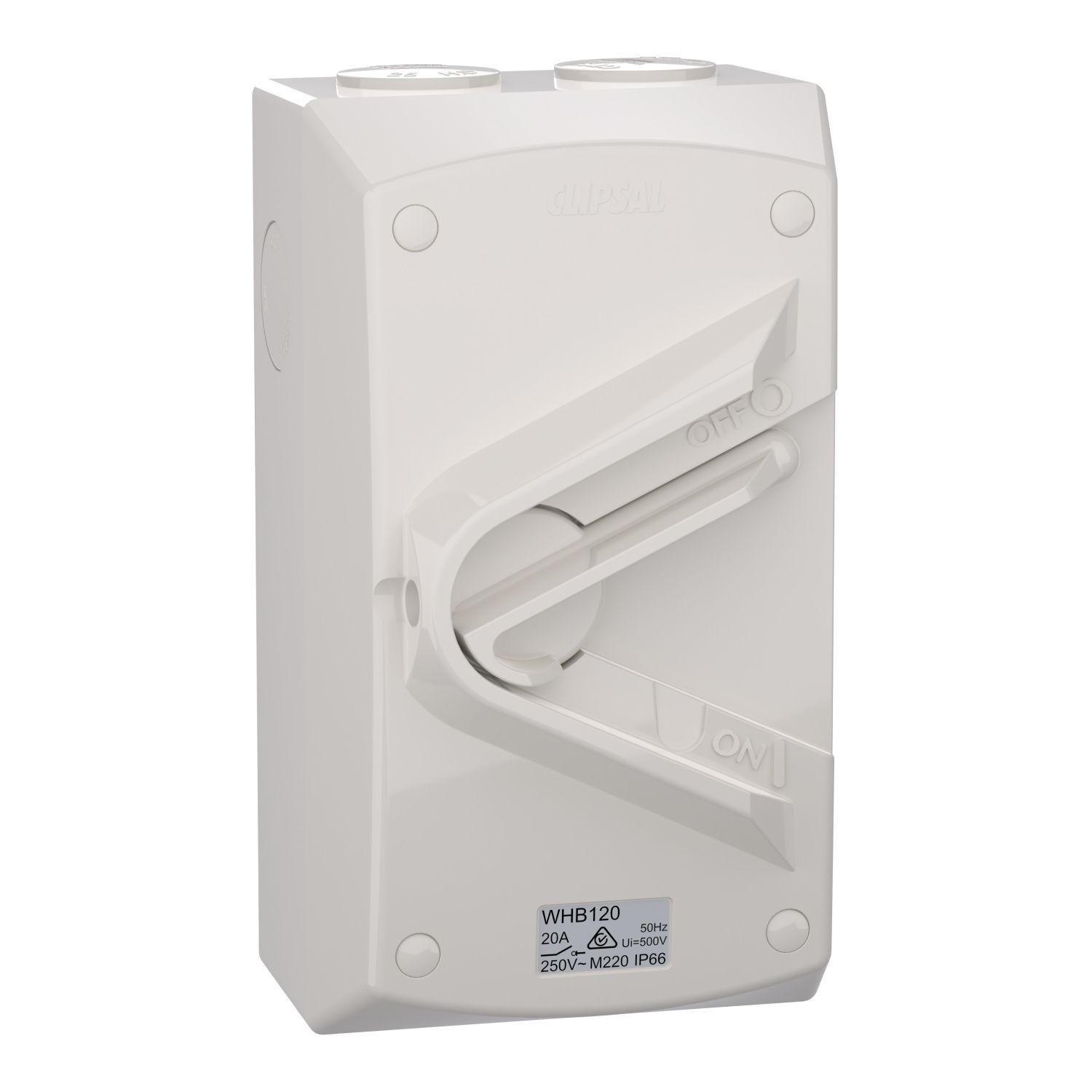

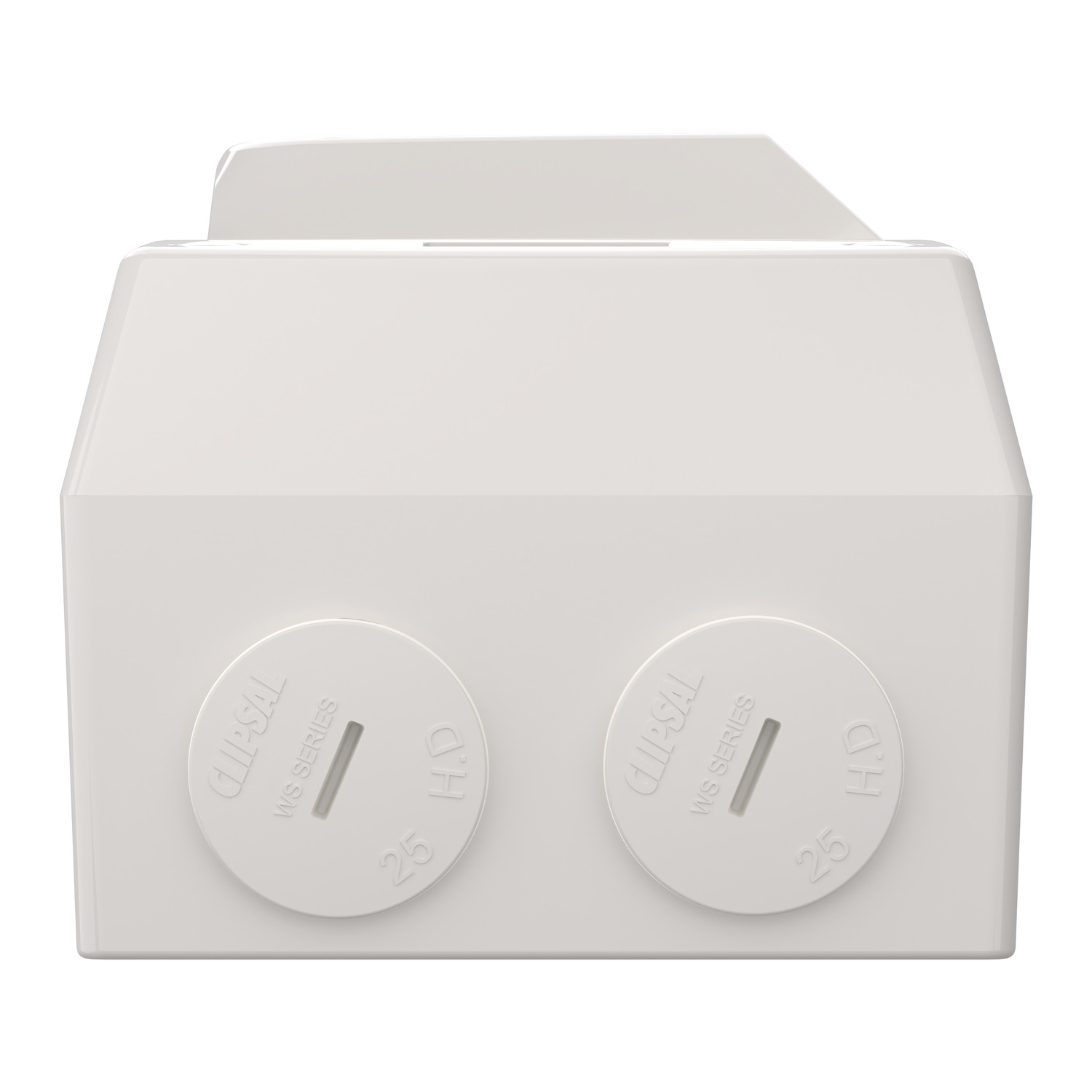

Switch, Weathershield, 1-Gang, 1 Pole, 20A, 250VAC, IP66
Manufacturer: Clipsal
SKU: WHB120-RG
GTIN: 9311554644307
Old price: $43.78 inc GST
$63.04 inc GST
Supported cards
Supported cards
Designed for durability and performance, the Clipsal Weathershield Switch is the perfect solution for outdoor and industrial environments where reliability and protection are essential. Single-Pole Configuration Simplifies installation while maintaining effective control over connected appliances. Its impact-resistant base and cover, combined with a co-injection gasket seal, provide superior resilience against physical damage and environmental stress. The rated current is 20A/16AX and the rated operational voltage is 230/240VAC. The device comes with a screw terminal that offers a more secure connection for larger wires, reducing the risk of loose wires caused by external factors. Screws are available for installation. This device allows for surface mounting. ON-OFF marking for clear operational visibility. It is made of PC (polycarbonate), which is resistant to wear and tear. It has an IP66 rating for dust and water resistance. Compliance with international standards including AS 60529, AS/NZS 60947-3, IEC 60669-1.

Products specifications

Attribute name Attribute value
Main
Device presentation basic element with complete housing
Range of product Weathershield
Product brand Clipsal
Complementary
Number of poles 1
Switch function 1-pole
Local signalling without
Colour code RG
Marking location marking on surface
Marking ON-OFF
Fixing mode by screws
Rated current 20 A
Device mounting surface
[Ue] rated operational voltage 250 V AC
Environment
Standards AS/NZS 3947-3:approval number S/1, IEC 60669-1, AS/NZS 60947-3, AS 60529
