Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | control |
| Range | C-Bus |

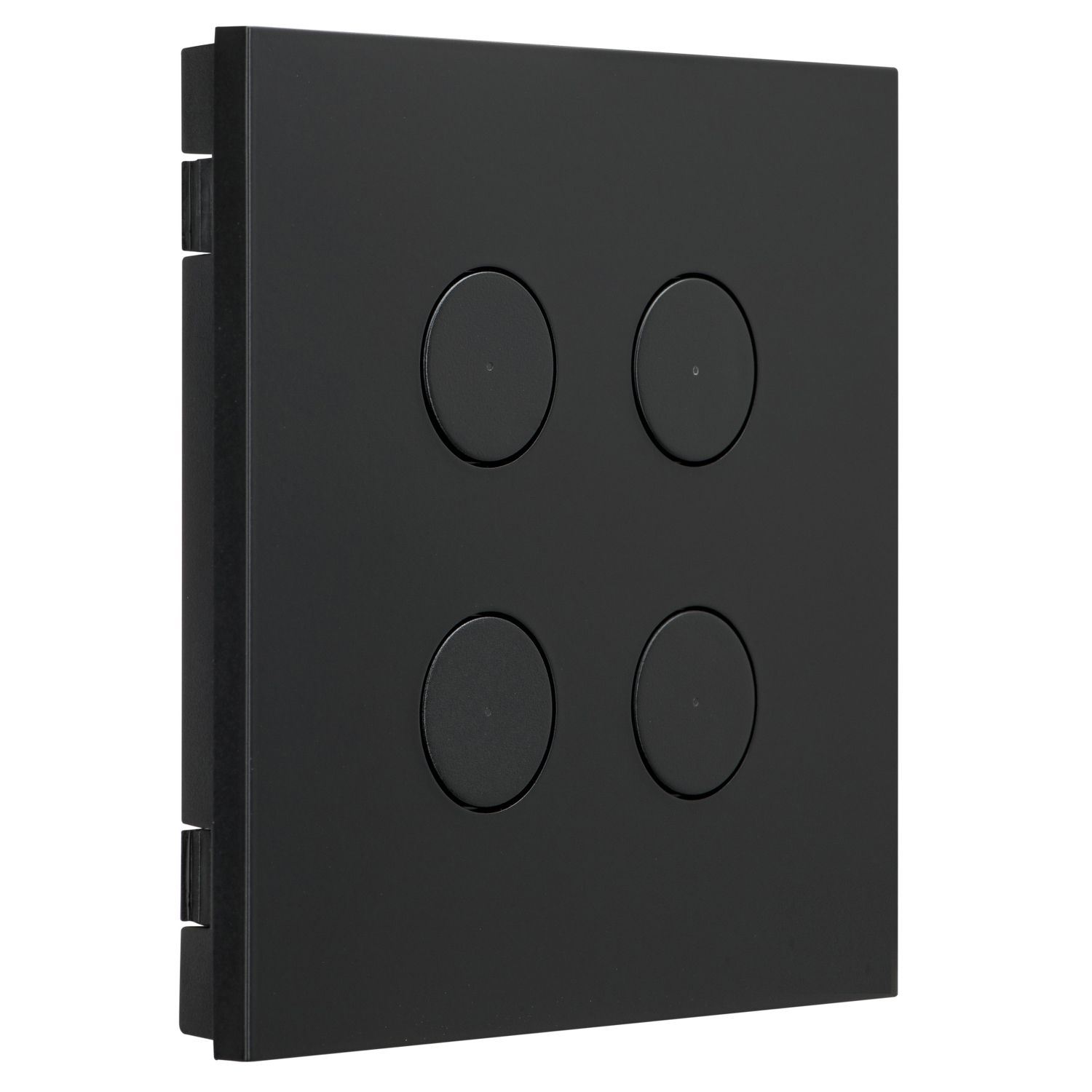

| Product name | C-Bus Saturn Zen E Series |
| Product or component type | switch |
| Product brand | Clipsal |
| Complementary | |
| [Ue] rated operational voltage | 15...36 V DC |
| Depth | 25 mm |
| Width | 87 mm |
| Communication network type | C-Bus |
| Switch function | curtain, bell push switch, roller shutter, scene control, time switch function, dimmer, load switching |
| [In] rated current | 22 mA |
| Local signalling | LED (blue/orange) for status |
| Colour | zen black |
| Isolation voltage | 3.75 kV from C-Bus to mains |
| Device presentation | basic element with full cover plate |
| Input impedance | 50 kOhm at 1-1 kHz |
| Control type | push-button |
| Colour code | ZB |
| Provided equipment | push-button cap, body switch, fascia plate |
| Net weight | 39 g |
| Material | plastic |
| Fixing center | 60.3 mm |
| Starting time | 5 s |
| Mounting support | wall box |
| Number of gangs | 4 gangs |
| Connections - terminals | terminal block - 0.2-1.3 mm² (AWG 24...AWG 16) |
| Height | 87 mm |
| Environment | |
| Relative humidity | 10-95 % non-condensing |
| Ambient air temperature for operation | 0-45 °C |
