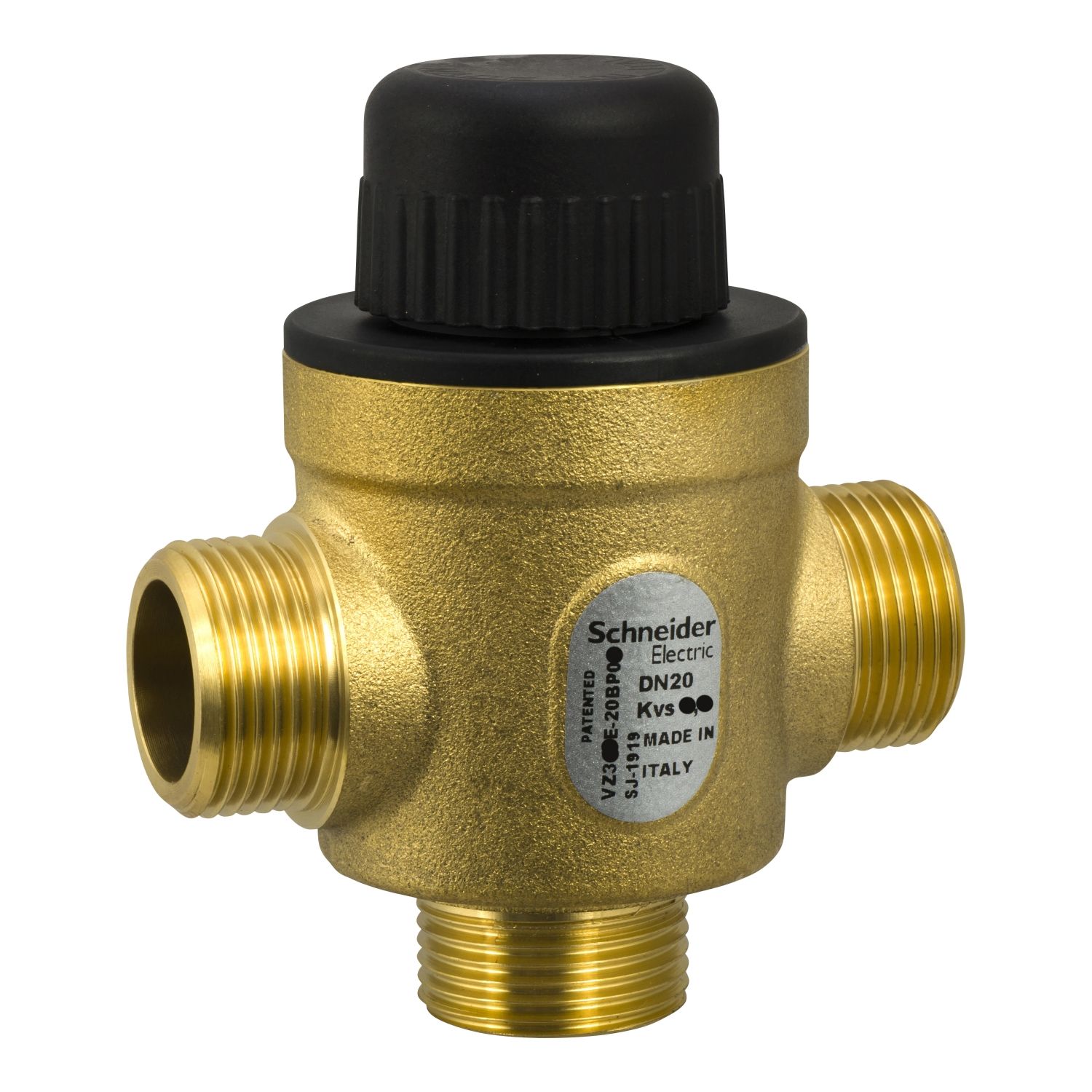

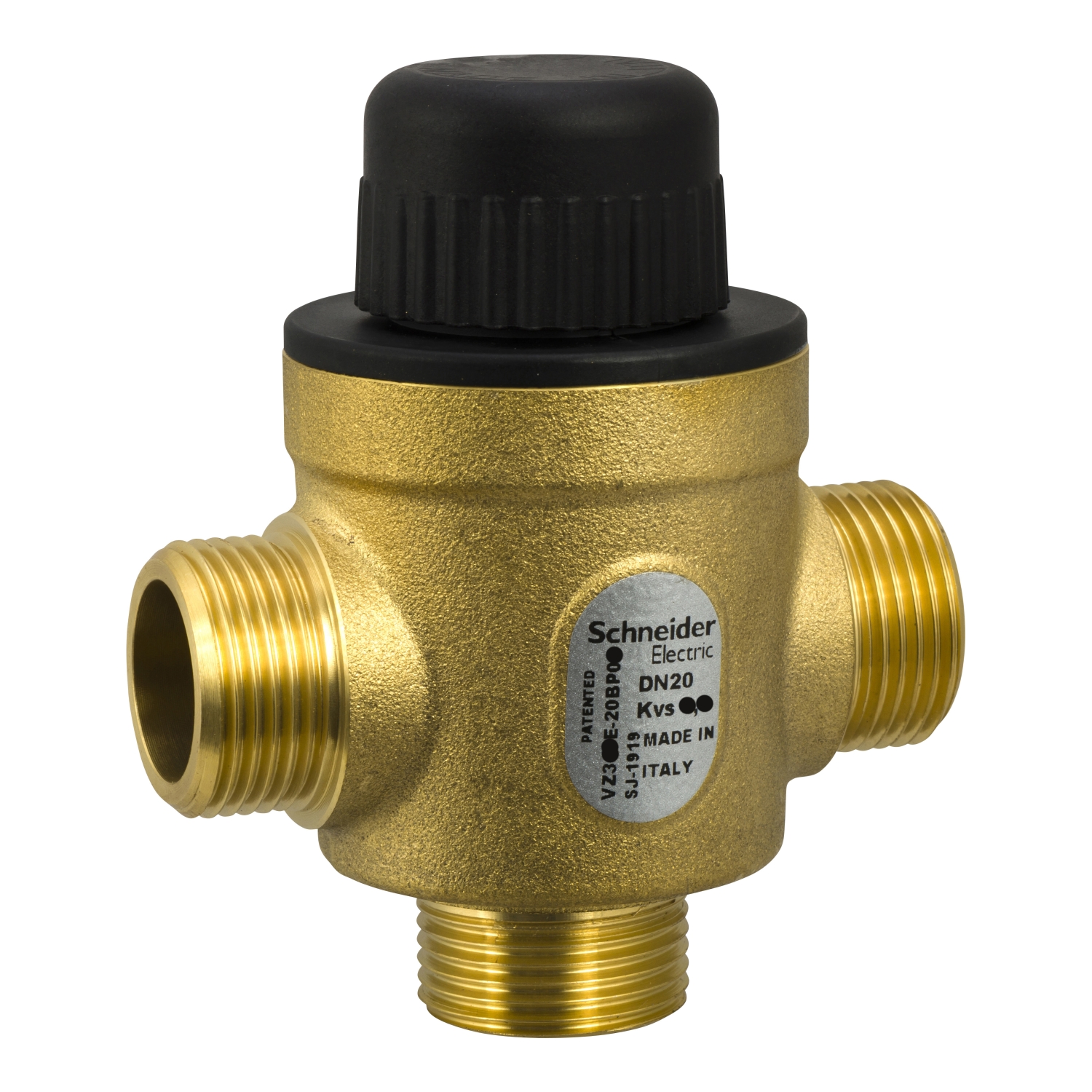

Zone Valve, 20mm, 3-Way, G External, Brass, 6kvs

Compact design zone valve

For use with MP140 thermal actuators - low cost and silent operation

On/Off control with a soft seat for tight close off

External thread allows ease of mounting in any orientation and a simple disassembly

Brass construction, PPS cartridge and EPDM seals for excellent corrosion resistance

Maintenance free

Manufacturer: Schneider Electric

SKU: VZ308E-20BP09

GTIN: 3606489661144

PDF

Image of product

Instruction sheet

Catalog

Full Description

The VZ308E is a small linear three-way zone valve used for the control of hot or chilled water in terminal units. It is designed to be used with the MZ140 family of thermal actuators. The valves utilise a double O-ring design on the plug to ensure a leak tight seal on both valve ports, this ensures no loss of energy leakage through the valve. The valve is BSP male threaded valves with flat face seals, a range of connection sets are available to mate onto pipe. Size DN 20, G3/4A connection, 6 Kvs. Pressure class PN16, stroke 2.5 mm, Normally closed (A-Ab). External thread to ISO 228/1 (flat face seal).

Availability: Out of stock

Old price: $169.84 inc GST

Price: $224.61 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Targeted region	Europe, Asia Pacific., Australia.
Product or component type	valve
Seating seal material	Port A:EPDM (ethylene propylene diene monomer)
Seat leakage	Port A: Class IV-S1 (0.005 %)
Body material	brass
Valve connection size	G 3/4A
Device application	fan coil unit, chilled ceiling, terminal unit
Contractual warranty
Warranty	18
