Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | reduction of current harmonics |
| Range compatibility | Altivar 32, Lexium 05, Altivar Machine ATV320, Altivar 312 Solar, Altivar 312, Altivar 31C, Lexium 32 |
| [In] rated current | 7 A |
| Product compatibility | variable speed drive ATV320 motor: 0.75 kW 200...240 V - single phase - line choke - 1 per drive, variable speed drive ATV320 motor: 0.55 kW 200...240 V - single phase - line choke - 1 per drive, LXM32.U45M2 - line choke - 1 per drive, LXM05D10M2 - line choke - 1 per drive, LXM05D10F1 - line choke - 1 per drive, ATV32H075M2 - line choke - 1 per drive, ATV32H055M2 - line choke - 1 per drive, ATV31C075M2 - line choke - 1 per drive, ATV31C055M2 - line choke - 1 per drive, ATV312H075M2 - line choke - 1 per drive, ATV312H055M2 - line choke - 1 per drive |
| Value of inductance | 5 mH |
| Network number of phases | single phase |

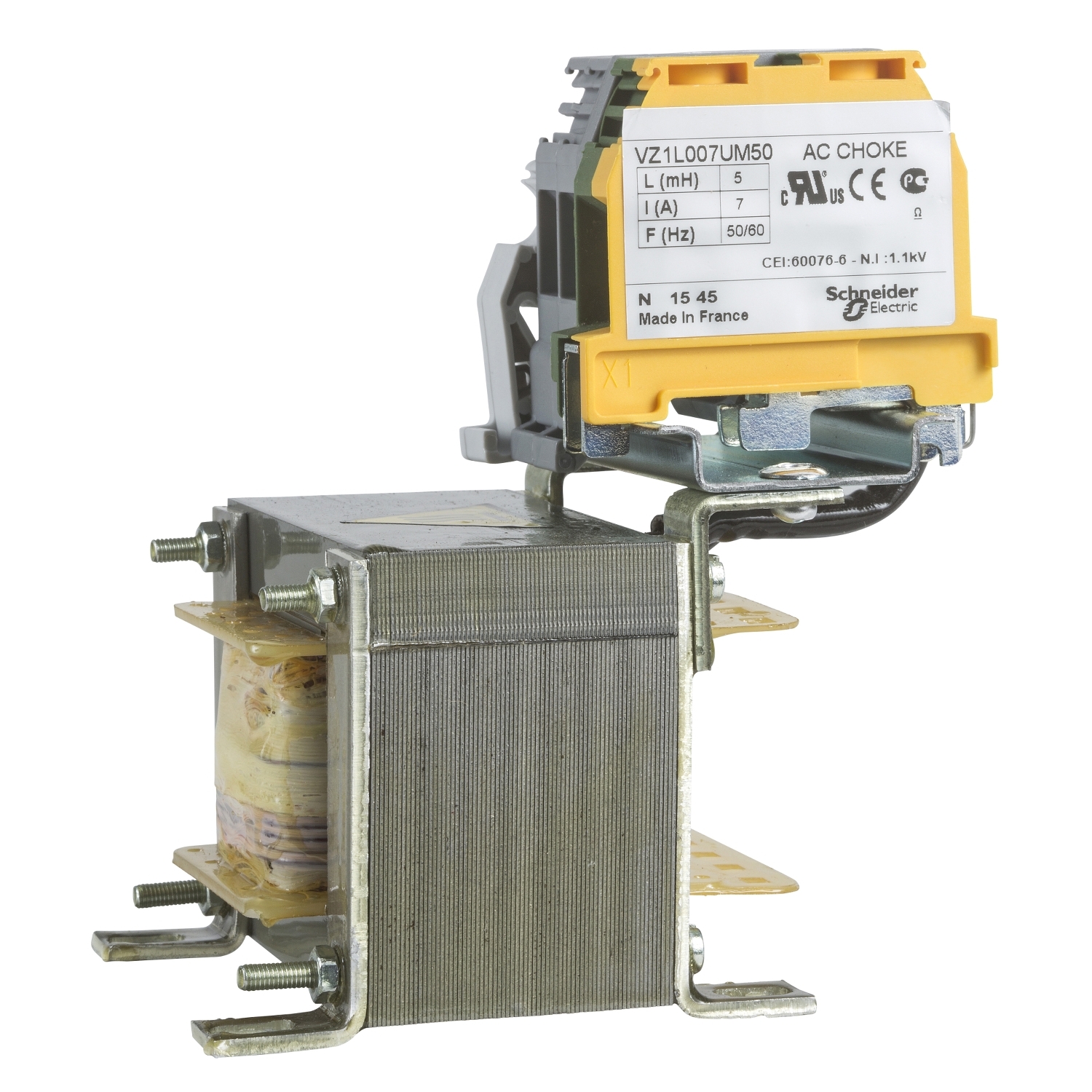

| Product or component type | line choke |
| Range of product | Altivar |
| Thermal losses | 20 W |
| Complementary | |
| Supply frequency | 50...60 Hz |
| Maximum voltage drop at rated load | 5 % |
| Depth | 95 mm |
| Width | 60 mm |
| Net weight | 0.88 kg |
| Height | 100 mm |
| Environment | |
| IP degree of protection | terminals: IP20, choke: IP00 |
| Standards | EN 50178, VDE 0160 level 1, IEC 60076 (with HD398) |
