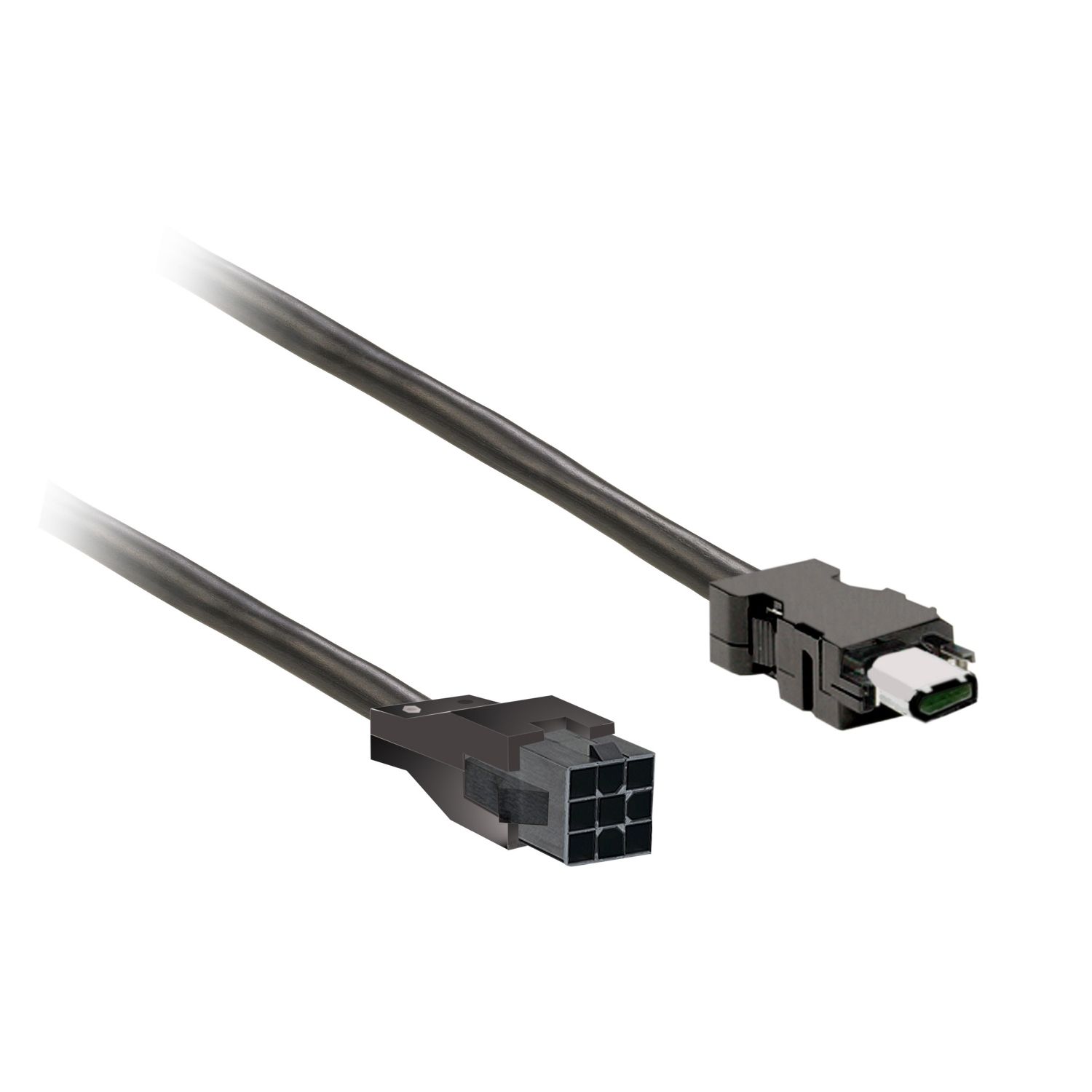

This product is part of the Lexium 28 range, an offer of motion servo drives and servo motors. This is a shielded encoder cordset for BCH2 motors with SinCos single turn encoder. It is equipped with one connector firewire 6-pin (servo drive side) and one connector Molex 9-pin (servo motor side). The encoder cable transmits signals between position sensors of servo motors and their control systems. The cable composition is 5x (2 x 0.13squaremm). It measures 5m long and weighs 1.2kg. It is a connection accessory to the BCH2 servo motors. It is compatible with servo motors type BCH2MBA53, /MB013, /LD023, /LD043, /LF043, /HF073, /LF073. It plugs into the encoder connector of LXM28 drives and BCH2 servo motors. Lexium 28 servo drives and Lexium BCH2 servo motors are Optimized servo bundles for compact machines. Designed for optimized & cost-effective.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accessory / separate part destination | from servo motor to servo drive |
| Device application | for BCH2 with SinCos single turn encoder |
| Accessory / separate part type | encoder cable |
| Cable composition | 5 x (2 x 0.13 mm²) |
| Product or component type | encoder cable |
| Accessory / separate part category | connection accessory |
| Range of product | Lexium |
| Complementary | |
| Range compatibility | Lexium 28 |
| Electrical connection | 1 connector Molex 9 pin(s), 1 connector Firewire 6 pin(s) |
| Net weight | 1.2 kg |
| Cable length | 5 m |
