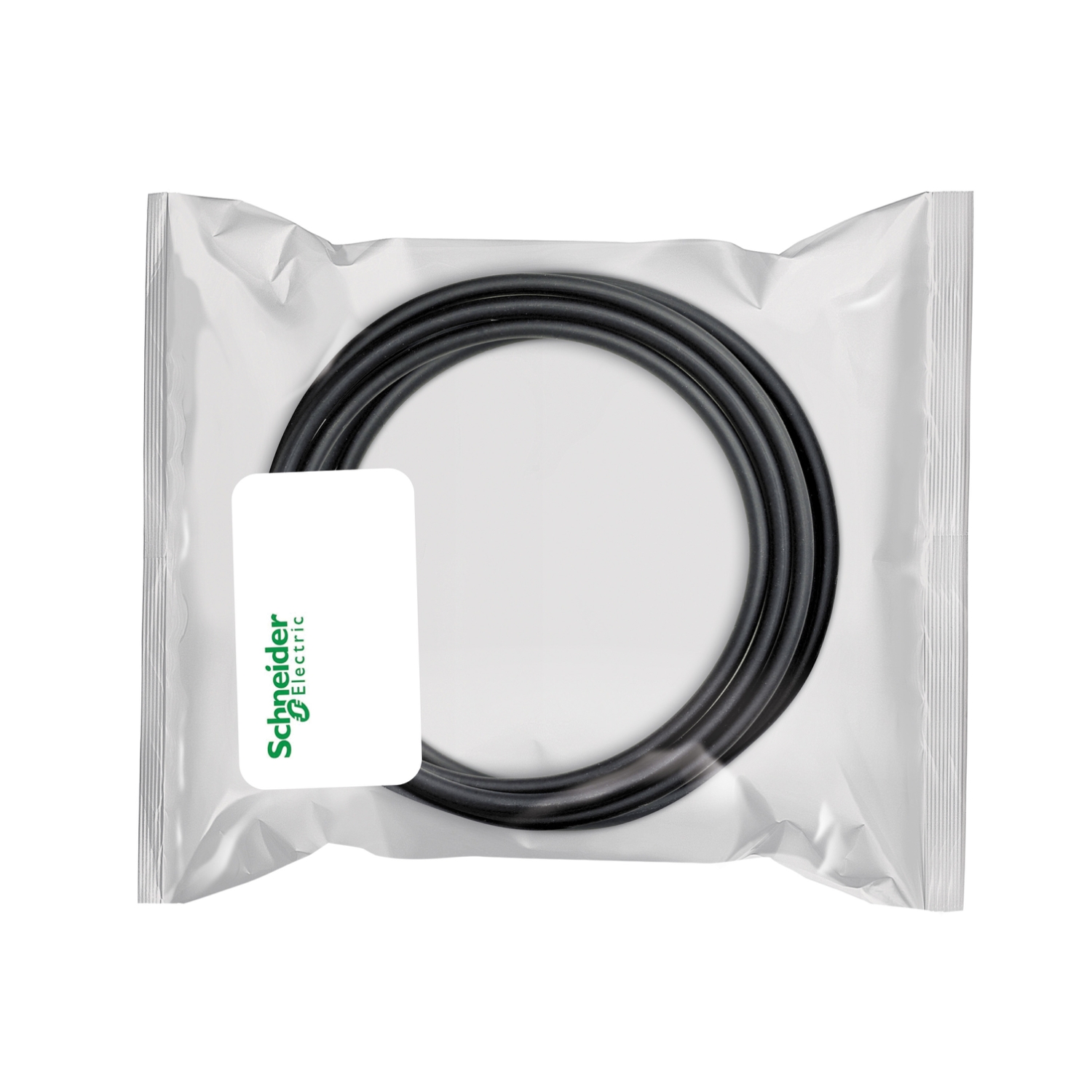

power cable - between servomotor BSH and servodrive - 4 x 4 mm² + 2 x 1 mm² - 5m
Manufacturer: Schneider Electric
SKU: VW3M5103R50
GTIN: 3389119207409
Old price: $532.95 inc GST
$767.45 inc GST
Supported cards
Supported cards
This product is part of the Lexium 32 range, an offer of connection accessories for Lexium 32 and motors. This power cable is an accessory of servo drives and motors. The length of this cable is 5m. It is furnished with M40 industrial connector for servo motor side and free end for servo drive side for electrical connection. The cable composition is 4 x 4mm² + 2 x 1mm². It is used between servomotor BSH and servo drive. It weighs 2.13kg. This range is compatible with Lexium 32, Lexium 15 and Lexium 05 servo drives. This product is compatible with servo motor BMH, 1 motor stack (190mm). Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination between servo motor and servo drive
Accessory / separate part type preassembled power cordset
Cable composition 4 x 4 mm² + 2 x 1 mm²
Range compatibility Lexium 05, Lexium 15, Lexium 32
Product or component type power cable
Accessory / separate part category connection accessory
Cable length 5 m
Product compatibility servo motor BSH, 4 motor stacks (140 mm), servo motor BSH, 3 motor stacks (140 mm), servo motor BSH, 2 motor stacks (140 mm), servo motor BMH, 3 motor stacks (205 mm) mounting type E conforming to IEC 60204-1, servo motor BMH, 1 motor stacks (190 mm) mounting type E conforming to IEC 60204-1
Complementary
Net weight 2.13 kg
Electrical connection connector - industrial M40 for servo motor side, free end for servo drive side
