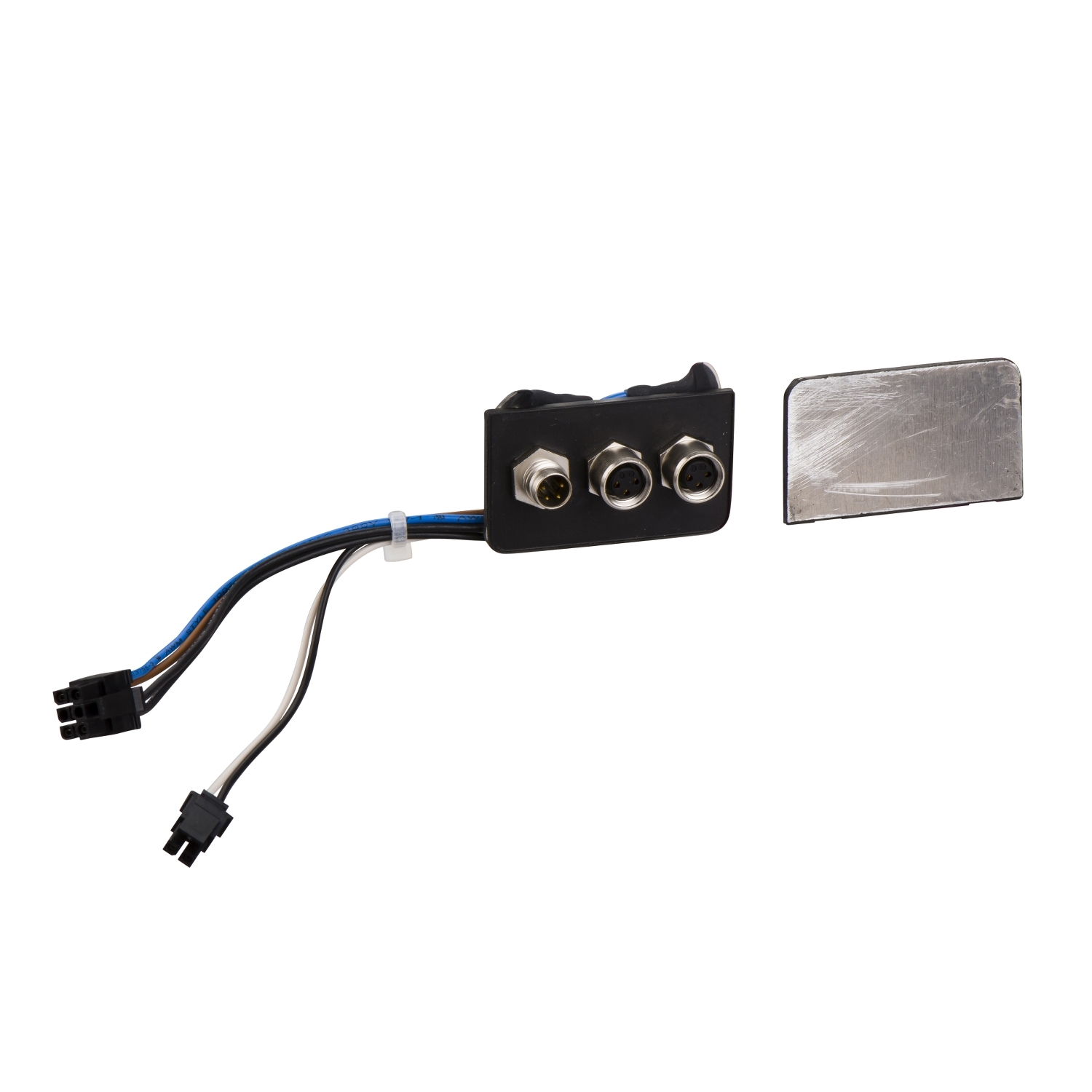

This product is part of the Lexium ILA, ILE, ILS range, an offer of motion integrated drives for motion control. The communication interface insert provides two I/O signals and a STO signal. It is furnished with 4-pin M8 male connector for safe torque off and two 3-pin M8 female connectors for 2 I/O signals. It weighs 0.036kg. It is compatible for use with Lexium integrated drives. The kit includes 1 insert with connectors and 1 insert for sealing (IP54).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accessory / separate part destination | for drives |
| Accessory / separate part type | connection accessories |
| Product or component type | insert for communication interface |
| Accessory / separate part category | connection accessories |
| Range of product | Lexium integrated drive |
| Complementary | |
| Input/output type | 2 I/O signals + 1 STO signal |
| Kit composition | 1 sealing insert, 1 insert with connectors |
| Net weight | 0.036 kg |
| Electrical connection | 2 female connectors M8 3 pins for for connection of 2 I/O signals, 1 male connector M8 4 pins for for connection of signals for safe torque off |
Only registered users can write reviews
Related products

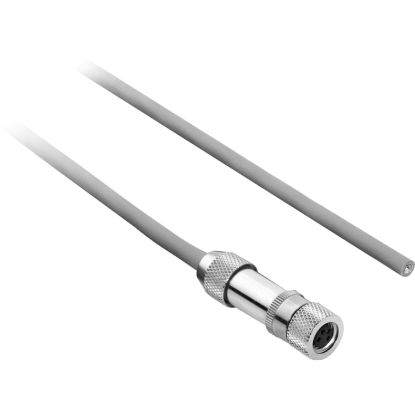

cable for STO safety function - 5m - 1 female connector - M8
