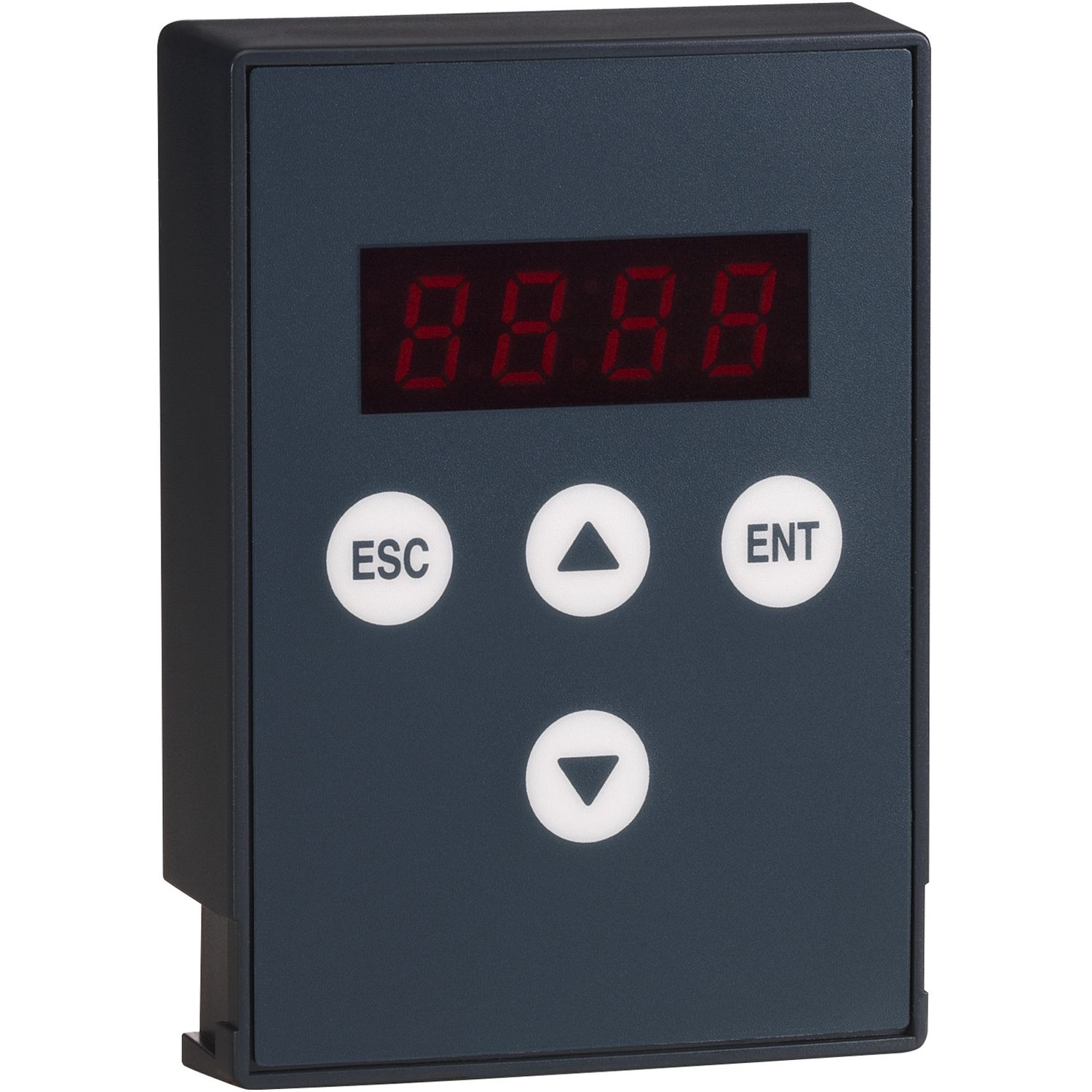

This terminal is an accessory of the soft start/soft stop Altistart 22 range. It enables the human-machine interface of the Altistart 22 soft start/soft stop unit to be positioned remotely on the door of an enclosure. Its protection index is IP65. It weighs 275g, and its dimensions are 50mm wide, 70mm high, and 15mm deep. It is used to remotely set and configure the soft start/soft stop unit, display the soft start/soft stop unit status, and detect errors remotely. A remote-mounting cordset VW3A1104Rxx is also required, to be ordered separately.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accessory / separate part destination | soft starter for asynchronous motor |
| IP degree of protection | IP65 |
| Accessory / separate part type | remote terminal |
| Product compatibility | ATS22 |
| Accessory dimension | 50 x 15 x 70 mm |
| Accessory / separate part category | control accessories |
| Accessory / separate part designation | remote terminal |
| Range of product | Altistart 22 |
| Complementary | |
| Net weight | 0.275 kg |
