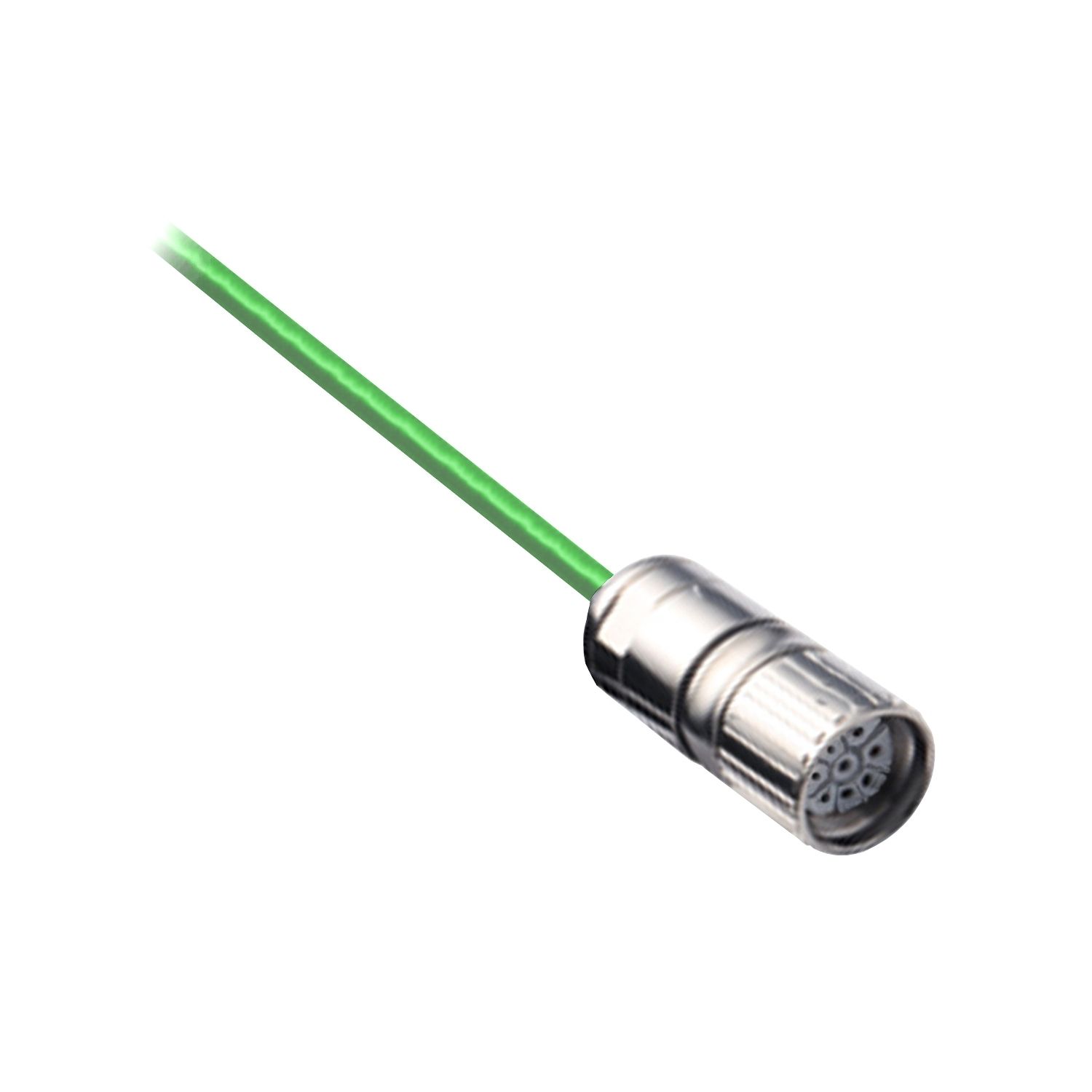

This product is part of the Lexium 52 & Motors range, an offer of connection accessories for power supply. This power cable is an accessory for Axis 1 STS40/60/80. The length of this cable is 5m. It is furnished with M23 industrial connector for electrical connection. The cable composition is 1.5mm². It is used between servo motor BDH, BSH and servo drive. The connector is made of metal. It weighs 1.367kg. This range is compatible with Lexium 52, Lexium 62 and Lexium STS. The product is compatible with LXM 62 servo drive, LXM 52 servo drive, SH3055.P and SH3070.P/M. Lexium 52 provides an ideal counterbalance to the Lexium 62 multi-axis servo system, making the PacDrive system one of the most flexible motion control solutions. Lexium Stand alone servo drives from 0.4kW and 7kW for PacDrive based automation solutions.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product or component type | cable |
| Range of product | PacDrive 3 |
| Complementary | |
| Accessory / separate part destination | temperature sensor, holding brake, power supply |
| Range compatibility | Lexium STS, Lexium 62, Lexium 52 |
| Net weight | 1.367 kg |
| Material | metal |
| Product compatibility | MH3100.P..., MH3070.P..., SH31401M..., SH3100.P/M..., SH3070.P/M..., SH3055.P..., LXM 52 servo drive, LXM 62 servo drive |
| Cable length | 5 m |
| Connector type | M23 |
| Cable cross section | 1.5-1.5 mm² |
