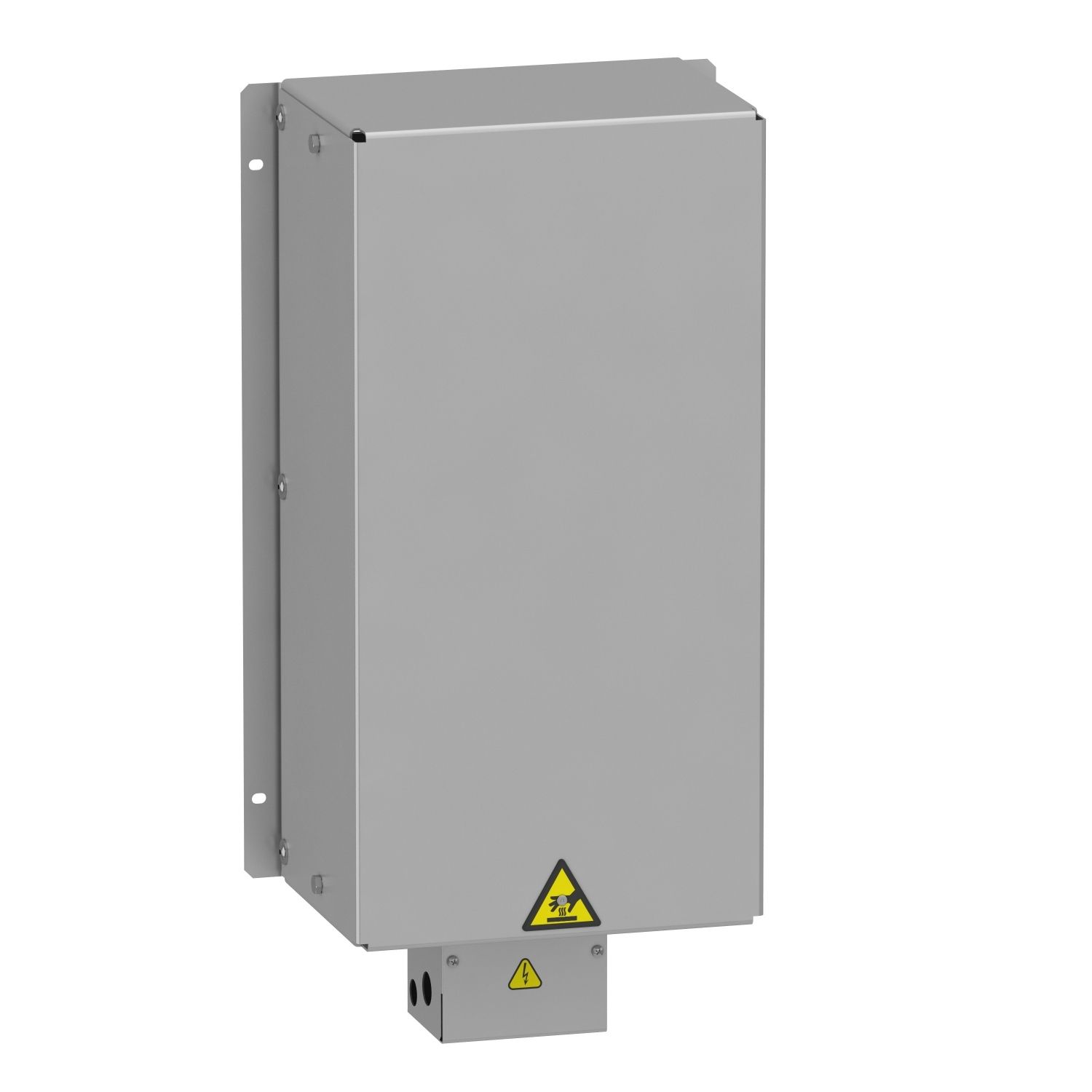

This braking resistor is an option for variable speed drives of Altivar range. It has an Ohmic value of 16Ohms at 20°C. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. Its protection index is IP20. It weighs 7kg. This resistor is designed to be mounted on the outside of the enclosure.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Easy Altivar 310, Altivar Process ATV900, Altivar Machine ATV340 |
| Product or component type | braking resistor |
| [Ue] rated operational voltage | 250 V AC, 24 V DC |
| Ohmic value | 16 Ohm |
| Complementary | |
| Average power available | 1.9 kW at 50 °C |
| Depth | 180 mm |
| Width | 290 mm |
| Duty cycle | severe cycle (heavy duty) <6 s braking with 165 % braking torque for a 120 s cycle , medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle , medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle , severe cycle (heavy duty) <54 s braking with 100 % braking torque for a 120 s cycle |
| Product compatibility | variable speed drive ATV930 50 hp 600 V medium cycle, variable speed drive ATV930 40 hp 600 V medium cycle, variable speed drive ATV930 32 hp 600 V medium cycle, variable speed drive ATV930 37 kW 500...690 V medium cycle, variable speed drive ATV930 30 kW 500...690 V medium cycle, variable speed drive ATV930 22 kW 500...690 V medium cycle, variable speed drive ATV340 22 kW 380...480 V medium cycle, variable speed drive ATV340 18 kW 380...480 V medium cycle, variable speed drive ATV340 15 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 5.5 kW 200...240 V severe cycle, variable speed drive ATV950 wall mount 30 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 22 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 18.5 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 30 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 22 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 18.5 kW 380...480 V medium cycle |
| Electrical connection | terminal, connection capacity: <= 2.5 mm² / AWG 12 for temperature control switch, terminal, connection capacity: <= 10 mm² / AWG 8 for drive |
| Net weight | 6.4 kg |
| Protection type | thermal protection via drive or temperature control switch at 120 °C |
| Height | 570 mm |
| Environment | |
| IP degree of protection | IP20 |
| Ambient air temperature for storage | -25-70 °C |
| Ambient air temperature for operation | 0-50 °C |
