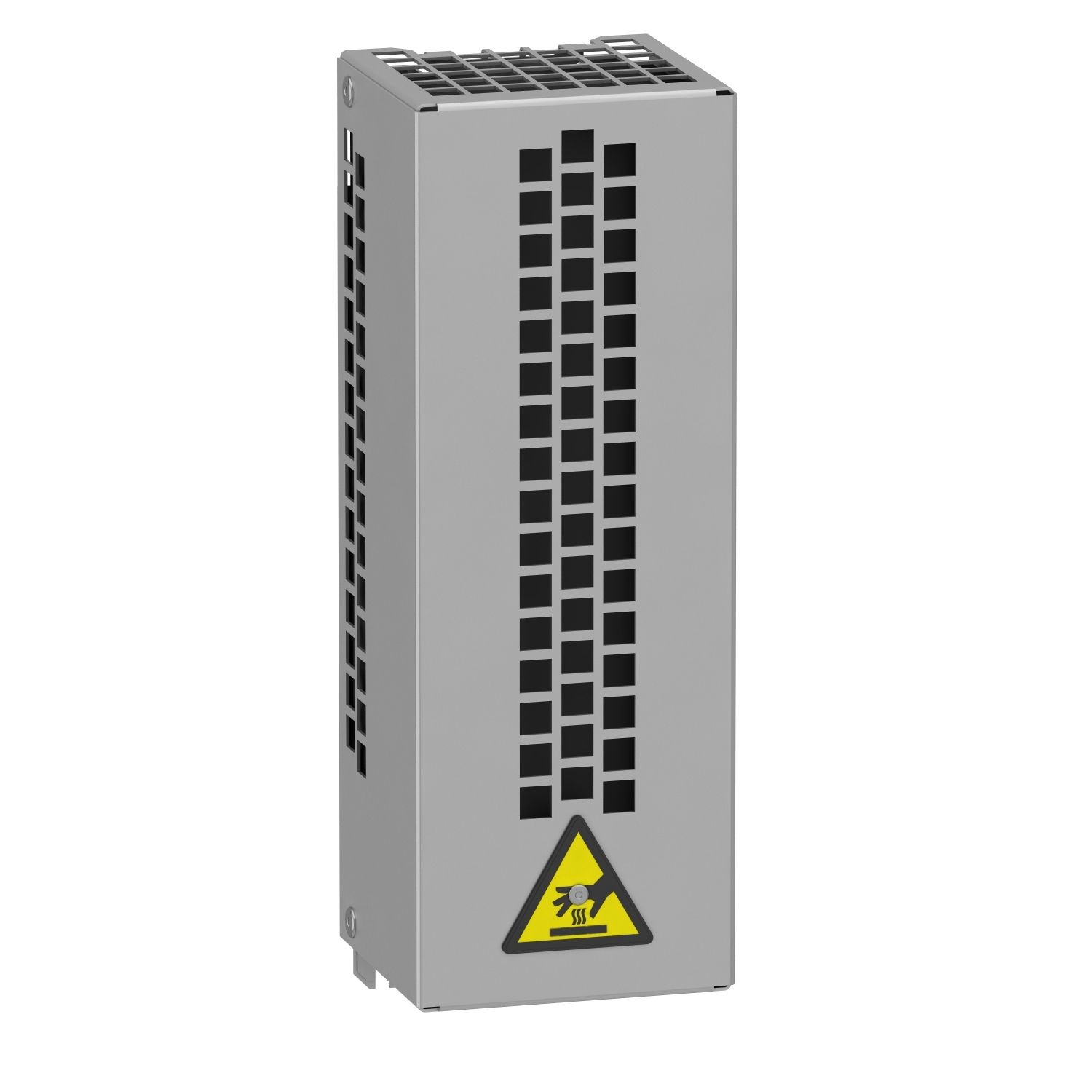

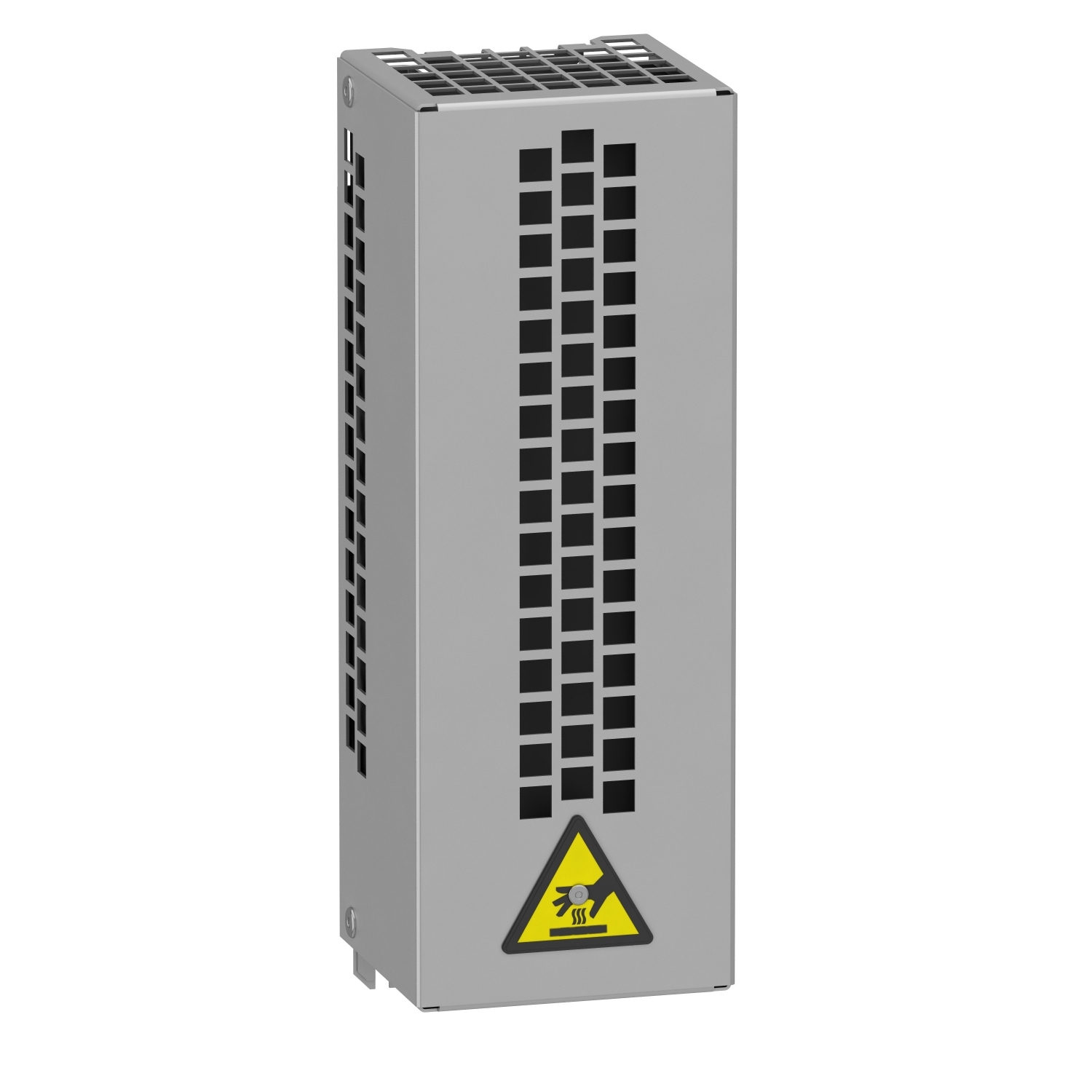

This braking resistor is an option for variable speed drives of Altivar ranges. It has an Ohmic value of 100Ohms at 20°C and its protection index is IP20. It is compatible with Altivar Process ATV900, Altivar Machine ATV320 and 340, a,d Easy Altivar 310 and 310L ranges. This braking resistor allows your variable speed drive to operate while braking to a standstill, by dissipating the braking energy and enables maximum transient braking torque. the power available is 0.1kW at 50°c. It weighs 1.5kg and its dimensions are, 105mm wide, 295mm high, 100mm deep. This resistor is designed to be mounted on the outside of the enclosure.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Easy Altivar 310L, Easy Altivar 310, Altivar Machine ATV320, Altivar Machine ATV340, Altivar Process ATV900 |
| Product or component type | braking resistor |
| Ohmic value | 100 Ohm |
| Complementary | |
| Average power available | 0.1 kW at 50 °C |
| Depth | 100 mm |
| Width | 105 mm |
| Duty cycle | medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle , medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle , light cycle (normal duty) <0.8 s braking with 120 % braking torque for a 40 s cycle , light cycle (heavy duty) <0.8 s braking with 150 % braking torque for a 40 s cycle |
| Product compatibility | variable speed drive ATV310L 5.5 kW, variable speed drive ATV310L 4.0 kW, variable speed drive ATV310L 3.0 kW, variable speed drive ATV310L 2.2 kW, variable speed drive ATV310L 1.5 kW, variable speed drive ATV310L 0.75 kW, variable speed drive ATV320 4 kW 525...600 V, variable speed drive ATV320 2.2 kW 525...600 V, variable speed drive ATV320 1.5 kW 525...600 V, variable speed drive ATV320 0.75 kW 525...600 V, variable speed drive ATV930 3 hp 600 V medium cycle, variable speed drive ATV930 3 kW 500...690 V medium cycle, variable speed drive ATV930 2.2 kW 500...690 V medium cycle, variable speed drive ATV930 7.5 hp 600 V light cycle, variable speed drive ATV930 5 hp 600 V light cycle, variable speed drive ATV930 3 hp 600 V light cycle, variable speed drive ATV930 5.5 kW 500...690 V light cycle, variable speed drive ATV930 4 kW 500...690 V light cycle, variable speed drive ATV930 3 kW 500...690 V light cycle, variable speed drive ATV930 2.2 kW 500...690 V light cycle, variable speed drive ATV310 4 kW, variable speed drive ATV310 3 kW, variable speed drive ATV310 2.2 kW, variable speed drive ATV310 1.5 kW, variable speed drive ATV320 3 kW 380...480 V, variable speed drive ATV320 2.2 kW 380...480 V, variable speed drive ATV320 1.5 kW 380...480 V, variable speed drive ATV320 1.1 kW 380...480 V, variable speed drive ATV320 0.75 kW 380...480 V, variable speed drive ATV320 0.55 kW 380...480 V, variable speed drive ATV320 0.37 kW 380...480 V, variable speed drive ATV320 0.37 kW 200...240 V, variable speed drive ATV320 0.18 kW 200...240 V, variable speed drive ATV340 0.75 kW 380...480 V medium cycle, variable speed drive ATV340 3 kW 380...480 V light cycle, variable speed drive ATV340 2.2 kW 380...480 V light cycle, variable speed drive ATV340 1.5 kW 380...480 V light cycle, variable speed drive ATV340 0.75 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 1.5 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 0.75 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 0.75 kW 200...240 V medium cycle, variable speed drive ATV930 wall mount 1.5 kW 380...480 V medium cycle, variable speed drive ATV930 wall mount 0.75 kW 380...480 V medium cycle, variable speed drive ATV950 wall mount 4 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 3 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 2.2 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 1.5 kW 380...480 V light cycle, variable speed drive ATV950 wall mount 0.75 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 0.75 kW 200...240 V light cycle, variable speed drive ATV930 wall mount 4 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 3 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 2.2 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 1.5 kW 380...480 V light cycle, variable speed drive ATV930 wall mount 0.75 kW 380...480 V light cycle |
| Electrical connection | terminal, connection capacity: <= 10 mm² / AWG 8 for drive |
| Net weight | 1.5 kg |
| Protection type | thermal protection via drive |
| Height | 295 mm |
| Environment | |
| IP degree of protection | IP20 |
| Ambient air temperature for storage | -25-70 °C |
| Ambient air temperature for operation | 0-50 °C |
