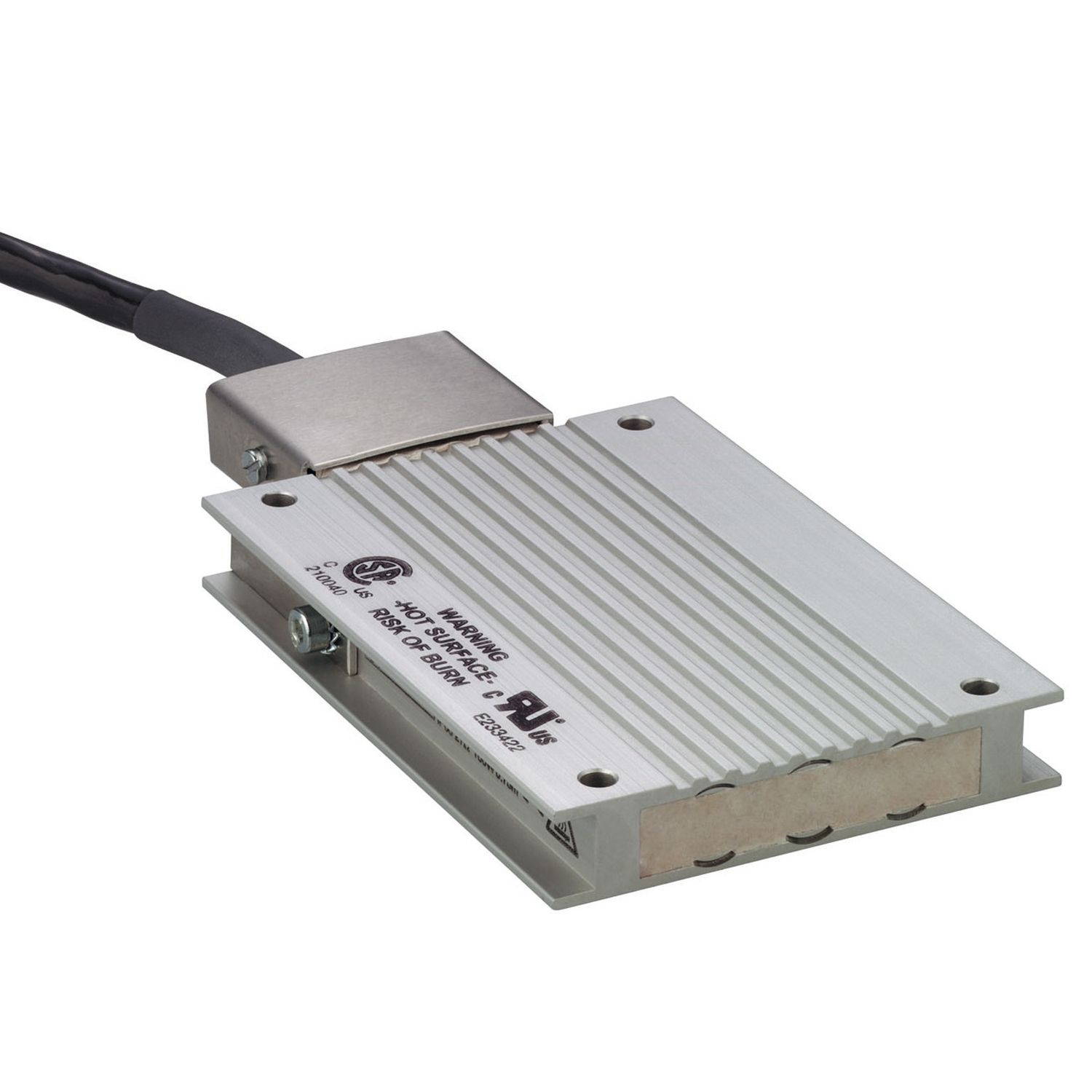

braking resistor - 72 ohm - 200 W - cable 3 m - IP65

Manufacturer: Schneider Electric

SKU: VW3A7606R30

GTIN: 3389119207256

PDF

Image of product

Instruction sheet

Catalog

Full Description

This braking resistor is an option for servo drives of Lexium range and variable speed drives of Altivar range when used with synchronous motors. It dissipates the braking energy, and enables maximum transient braking torque. It has anohmic value of 72Ohms and a cable lenght of 3m. This external braking resistor is required to dissipate the excess braking energy when the servo motor has to be braked frequently. Its protection index is IP65. The operating temperature around the unit can be between 0degrecentigrade and plus 50degrecentigrade. It weighs 1.200kg. The external braking resistor is required to dissipate the excess braking energy when the servo motor has to be braked frequently. It is compliant with Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU. This external braking resistor is compatible with Easy Lexium 16 servo drives. It is sold by one piece. Easy Lexium 16 servo drive and BCH16 servo motor combinations are specially designed for easy integration & commissioning in your machine. Easy Lexium 16 servo drive and BCH16 servo motor combinations provide the right level of performance for the majority of simple motion control machines.

Availability: Out of stock

Old price: $843.70 inc GST

Price: $653.36 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Ohmic value	72 Ohm
Range of product	Lexium, Altivar
Product compatibility	ATV32HU30N4, ATV32HU40N4, variable speed drive ATV320 at 3 kW, 380...500 V, three phase, variable speed drive ATV320 at 4 kW, 380...500 V, three phase, variable speed drive ATV320 at 4 kW, 525...600 V, three phase, motion servo drive LXM16D at 0.1 kW, 200...230 V, single phase, motion servo drive LXM16D at 0.2 kW, 200...230 V, single phase, motion servo drive LXM16D at 0.4 kW, 200...230 V, single phase, motion servo drive LXM16D at 0.75 kW, 200...230 V, single phase, motion servo drive LXM16D at 1 kW, 200...230 V, single phase, motion servo drive LXM16D at 1.5 kW, 200...230 V, single phase
Accessory / separate part category	protection accessories
Product or component type	braking resistor
Range compatibility	Lexium 32i, Lexium 28, Altivar 32, Lexium 52, Altivar Machine ATV320, Lexium 15, Lexium 05, Lexium 32, Easy Lexium 16
Complementary
Continuous power	200 W
Cable length	3 m
Net weight	1.2 kg
Protection type	thermal protection via the servo drive
Energy peak	6000 J at 480 V, 6600 J at 400 V, 9600 J at 230 V, 14600 J at 115 V
Average power available	50 W at 50 °C
Environment
Ambient air temperature for operation	0-50 °C
Ambient air temperature for storage	-25-85 °C
IP degree of protection	IP65
Contractual warranty
Warranty	18
