Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Altivar Process ATV900, Altivar Process ATV600 |
| Product compatibility | variable speed drive ATV930 wall mount, 55-75 kW, 380...480 V, variable speed drive ATV630 wall mount, 55-75 kW, 380...480 V, variable speed drive ATV950 wall mount, 110-160 kW, 380...480 V, variable speed drive ATV930 wall mount, 110-160 kW, 380...480 V, variable speed drive ATV650 wall mount, 110-160 kW, 380...480 V, variable speed drive ATV630 wall mount, 110-160 kW, 380...480 V |
| Value of inductance | 274.8 µH |

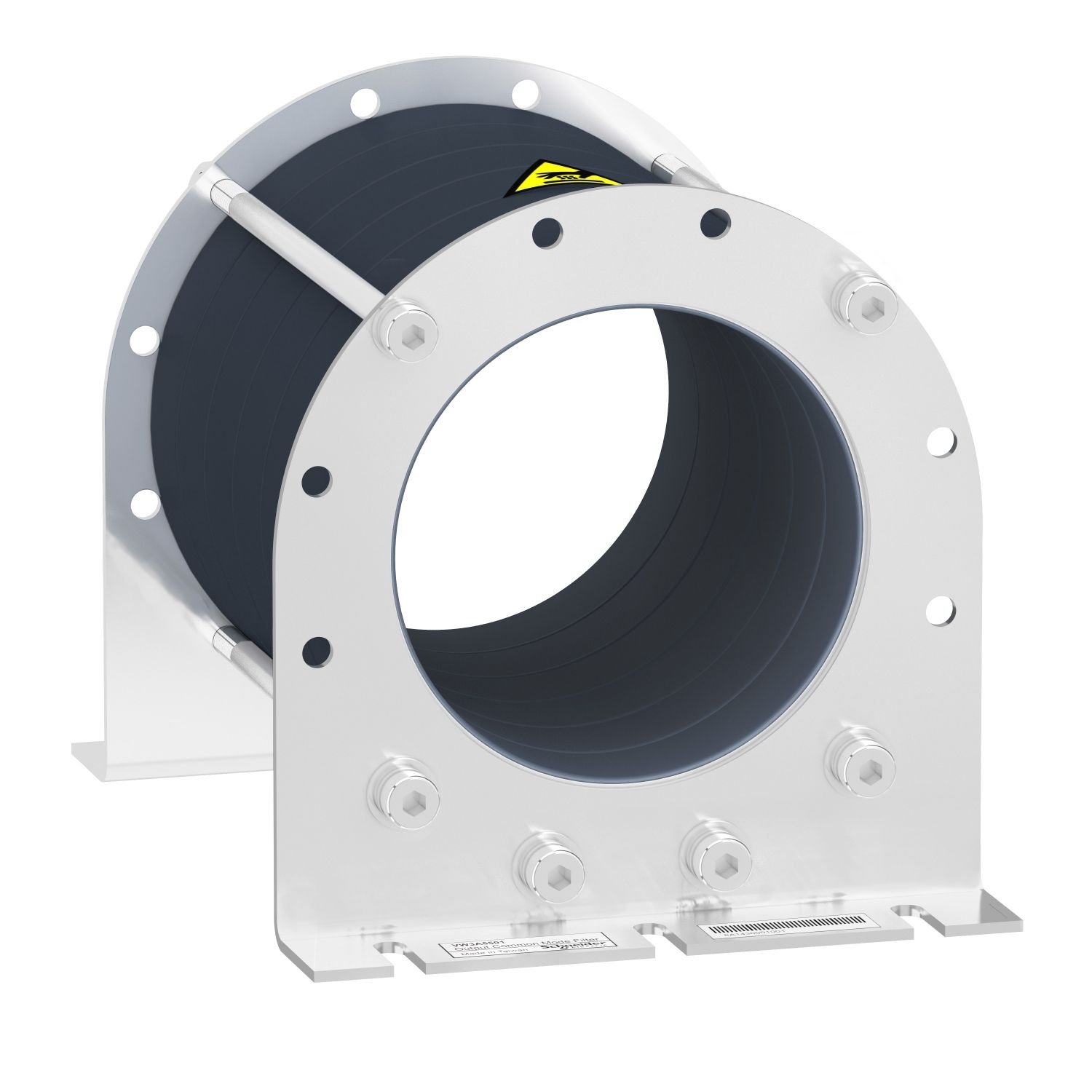

| Product or component type | common mode output filter |
| Complementary | |
| Diameter | 123.9 mm for PE cable outside, 123.9 mm for 3-phase cable inside |
| Depth | 196 mm |
| Width | 191 mm |
| Saturation current | 3.6 A |
| Electrical insulation class | class I |
| Net weight | 8.3 kg |
| Maximum motor cable length | 300 m(shielded cable) motor: 55-55 kW 200...240 V, with 1 filter, 300 m(unshielded cable) motor: 55-75 kW 200...240 V, with 1 filter, 150 m(shielded cable) motor: 75-75 kW 200...240 V, with 1 filter, 1000 m(unshielded cable) motor: 110-160 kW 380...480 V, with 2 filter, 500 m(shielded cable) motor: 130-160 kW 380...480 V, with 2 filter, 500 m(shielded cable) motor: 110-110 kW 380...480 V, with 1 filter + VW3A5505, 300 m(shielded cable) motor: 110-110 kW 380...480 V, with 1 filter, 300 m(unshielded cable) motor: 110-160 kW 380...480 V, with 1 filter, 1000 m(unshielded cable) motor: 55-75 kW 200...240 V, with 2 filter, 500 m(shielded cable) motor: 75-75 kW 200...240 V, with 2 filter, 500 m(shielded cable) motor: 55-55 kW 200...240 V, with 1 filter + VW3A5505, 150 m(shielded cable) motor: 130-160 kW 380...480 V, with 1 filter |
| Switching frequency | <= 10 kHz |
| Height | 256 mm |
| Maximum output frequency | 100 Hz |
| Mechanical robustness | vibrations class 3M4 conforming to IEC 60721-3-3, shocks class 3M4 conforming to IEC 60721-3-3 |
| Environment | |
| Relative humidity | 5-95 % without condensation |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | -15-60 °C |
