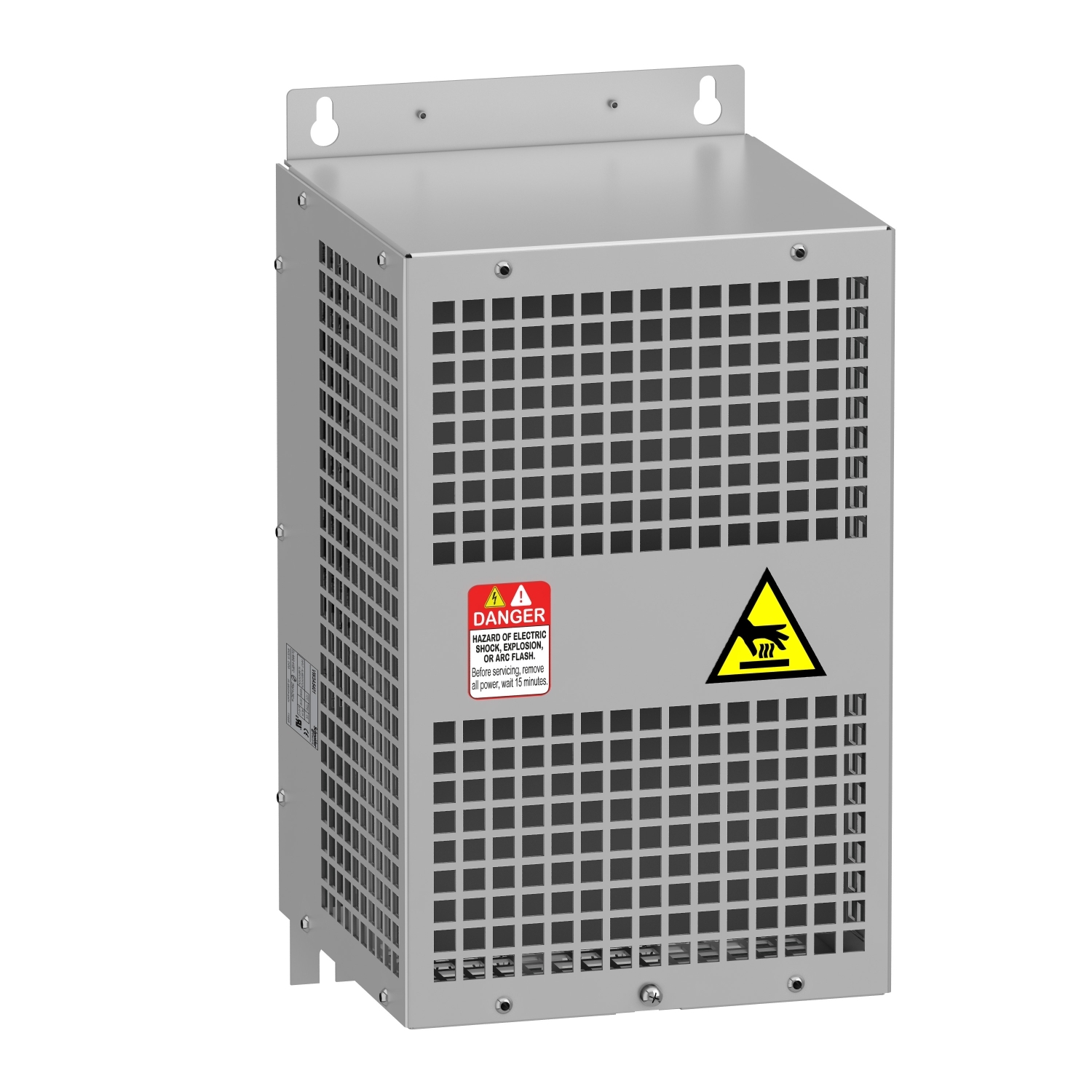

This sinus filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 6A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP20. It weighs 10kg. It is used for applications requiring long cable runs, motors connected in parallel, submersible pumps sensitive to dv/dt, an intermediate transformer between the drive and the motor.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Altivar Process ATV600, Altivar Process ATV900 |
| Product specific application | output filter |
| Product or component type | sinus filter |
| Complementary | |
| Maximum voltage drop at rated load | 8 % |
| Depth | 210 mm |
| Width | 220 mm |
| Thermal losses | 40 W at 4 kHz |
| [In] rated current | 6 A |
| Max current | 1.20 x nominal current (duration = 60 s) |
| Operating altitude | 1000...4000 m with current derating 1 % per 100 m, <= 1000 m without current derating |
| Electrical connection | terminal block, connection capacity: 6 mm² / AWG 10 |
| Permissible voltage | 480 V AC |
| Net weight | 10 kg |
| Maximum motor cable length | 500 m shielded cable, 1000 m unshielded cable |
| Product compatibility | variable speed drive ATV950 wall mount, motor: 2.2 kW, 380...480 V, variable speed drive ATV950 wall mount, motor: 1.5 kW, 380...480 V, variable speed drive ATV950 wall mount, motor: 0.75 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 0.75 kW, 200...240 V, variable speed drive ATV930 wall mount, motor: 2.2 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 1.5 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 0.75 kW, 380...480 V, variable speed drive ATV650 wall mount, motor: 2.2 kW, 380...480 V, variable speed drive ATV650 wall mount, motor: 1.5 kW, 380...480 V, variable speed drive ATV650 wall mount, motor: 0.75 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 0.75 kW, 200...240 V, variable speed drive ATV630 wall mount, motor: 2.2 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 1.5 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 0.75 kW, 380...480 V |
| Switching frequency | 4...8 kHz |
| Height | 455 mm |
| Maximum output frequency | 100 Hz |
| Environment | |
| Relative humidity | 5-95 % without condensation |
| Ambient air temperature for storage | -40-70 °C |
| Pollution degree | 2 conforming to IEC 61800-5-1 |
| IP degree of protection | IP21 (with kit VW3A53901), IP20 |
| Environmental characteristic | dust pollution resistance class 3S3 conforming to IEC 60721-3-3, chemical pollution resistance class 3C3 conforming to IEC 60721-3-3, biological pollution resistance class 3B1 conforming to IEC 60721-3-3 |
| Ambient air temperature for operation | -15-50 °C (without current derating), 50-60 °C (with current derating 1.5 % per °C) |
| Mechanical robustness | vibrations class 3M4 conforming to IEC 60721-3-3, shocks class 3M4 conforming to IEC 60721-3-3 |
