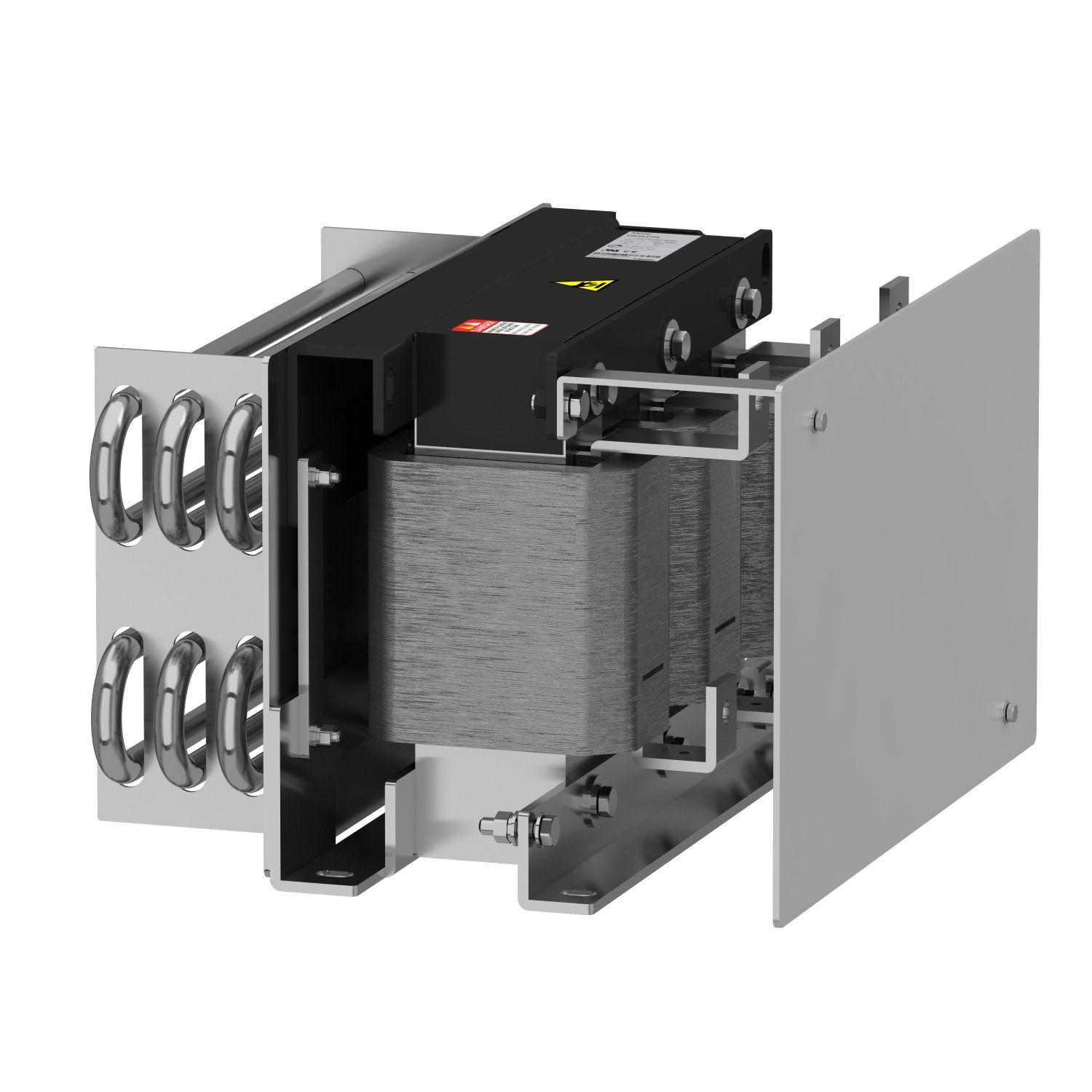

This dv/dt filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 305A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 40kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Altivar Process ATV600, Altivar Process ATV900, Easy Altivar 610 |
| [In] rated current | 305 A |
| Product specific application | output filter |
| Product compatibility | ATV930 variable speed drive wall mount - 75 kW, 200...240 V, ATV930 variable speed drive wall mount - 55 kW, 200...240 V, ATV930 variable speed drive wall mount - 160 kW, 380...480 V, ATV930 variable speed drive wall mount - 132 kW, 380...480 V, ATV930 variable speed drive wall mount - 110 kW, 380...480 V, ATV610 variable speed drive - 160 kW, 380...415 V, ATV610 variable speed drive - 132 kW, 380...415 V, ATV610 variable speed drive - 110 kW, 380...415 V, ATV630 variable speed drive wall mount - 75 kW, 200...240 V, ATV630 variable speed drive wall mount - 55 kW, 200...240 V, ATV630 variable speed drive wall mount - 160 kW, 380...480 V, ATV630 variable speed drive wall mount - 132 kW, 380...480 V, ATV630 variable speed drive wall mount - 110 kW, 380...480 V |
| Sale per indivisible quantity | 1 |
| Product or component type | dv/dt filter |
| Electrical connection | copper bar M10, connection capacity: 300 mm² / 500 kcmil |
| Complementary | |
| Depth | 270 mm |
| Width | 420 mm |
| Thermal losses | 287 W at 4 kHz |
| Operating altitude | 1000...4000 m with current derating 1 % per 100 m, 0...1000 m without current derating |
| DV/dt | 6000 V/µs max at 380...480 V, 6000 V/µs max at 200...240 V |
| Net weight | 40 kg |
| Ambient air temperature for operation | 50-60 °C (with current derating 1.5 % per °C), -10-50 °C (without current derating) |
| Maximum motor cable length | 300 m shielded cable, 500 m unshielded cable |
| Height | 360 mm |
| Maximum output frequency | 100 Hz |
| Environment | |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP00 |
