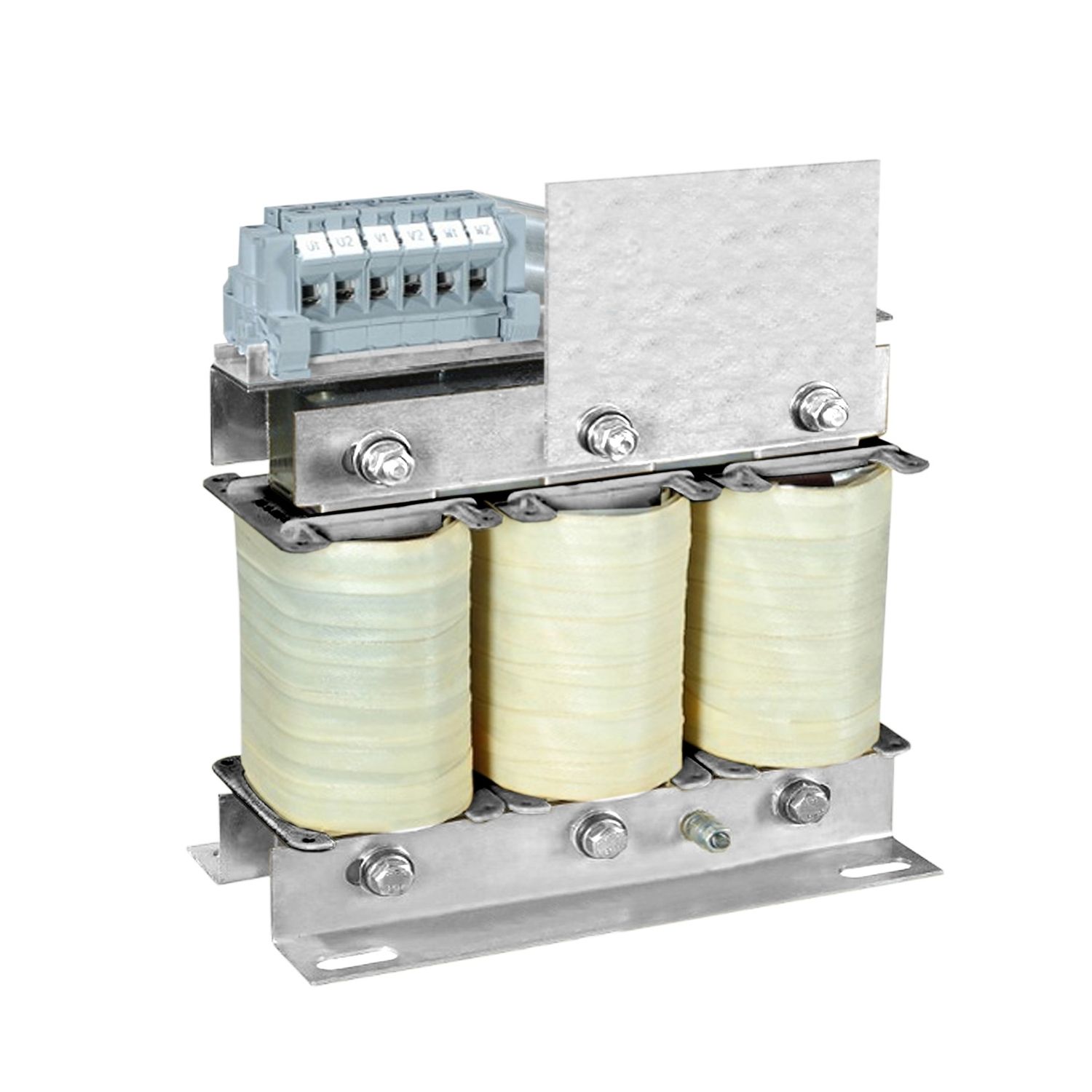

This sinus filter is an option for variable speed drives of Altivar range. Its rated current is equal to 400A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 190kg. It is used for applications requiring long cable runs, motors connected in parallel, submersible pumps sensitive to dv/dt, an intermediate transformer between the drive and the motor.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Altivar Process ATV600, Altivar 71, Altivar Process ATV900, Altivar 61, Altivar 71Q, Altivar 61Q |
| [In] rated current | 400 A |
| Thermal losses | 1900 W at 100 Hz |
| Product specific application | output filter |
| Product compatibility | ATV930 variable speed drive wall mount - 220 kW, 380...480 V, ATV630 variable speed drive wall mount - 220 kW, 380...480 V, ATV71QC25N4, ATV71QC20N4, ATV71HC25N4, ATV71HC20N4, ATV61QC25N4, ATV61QC20N4, ATV61HC22N4 |
| Permissible voltage | 500 V AC |
| Product or component type | sinus filter |
| Switching frequency | 4...8 kHz |
| Maximum output frequency | 100 Hz |
| Complementary | |
| Maximum voltage drop at rated load | 10 % |
| Max current | 1.5 x nominal current (duration = 60 s) |
| Electrical connection | bare wires diameter: 11 mm |
| Net weight | 190 kg |
| Environment | |
| IP degree of protection | IP00 |
| Operating altitude | 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating |
| Ambient air temperature for storage | -40-65 °C |
| Pollution degree | 2 conforming to EN 50178 |
| Relative humidity | 0-95 % |
| Vibration resistance | 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2 |
| Environmental characteristic | 3S1 conforming to IEC 721-3-3, 3C2 conforming to IEC 721-3-3, 3B1 conforming to IEC 721-3-3 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -10-40 °C (without current derating), 40-50 °C (with current derating 1.5 % per °C) |
