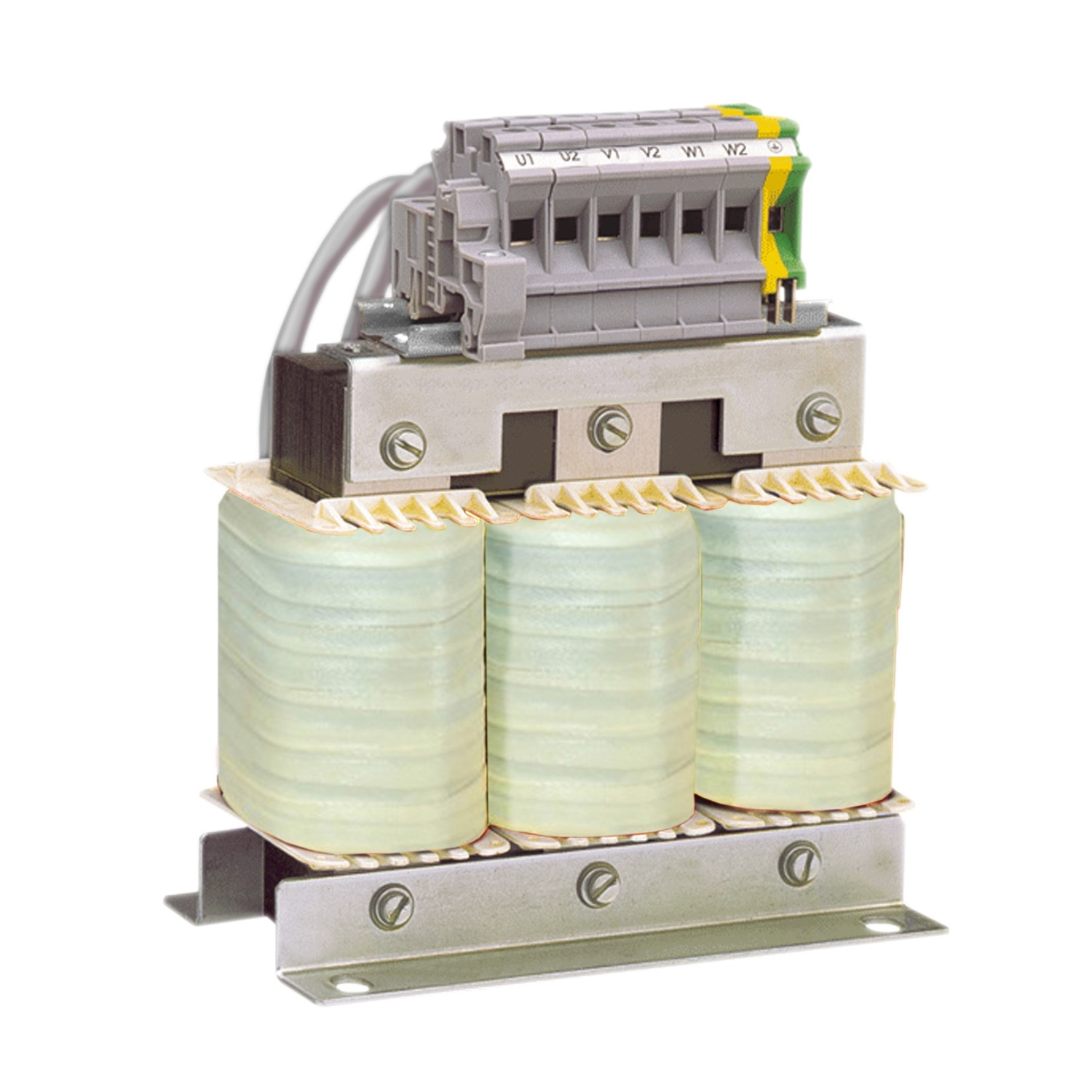

This motor choke is an option for variable speed drives of Altivar 61 / Altivar 71 range. Its rated current equal to 481A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 58 kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current. It is sold in indivisible quantity of 3.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Altivar 71Q, Altivar Process ATV900, Altivar 61Q, Altivar Process ATV600, Altivar 71, Altivar 61 |
| [In] rated current | 481 A |
| Product specific application | output filter |
| Product compatibility | ATV930 variable speed drive wall mount - 220 kW, 380...480 V, ATV630 variable speed drive wall mount - 220 kW, 380...480 V, ATV71QC25Y, ATV71QC20Y, ATV71QC20N4, ATV71QC16N4, ATV71HC31Y, ATV71HC25Y, ATV71HC25N4, ATV71HC20N4, ATV71HC16N4, ATV61QC31Y, ATV61QC25Y, ATV61QC25N4, ATV61QC20N4, ATV61HD90M3X, ATV61HC40Y, ATV61HC31Y, ATV61HC22N4, ATV61HC16N4 |
| Sale per indivisible quantity | 3 |
| Product or component type | motor choke |
| Electrical connection | tag connector 2 x M12 |
| Complementary | |
| Thermal losses | 530 W |
| DV/dt | 1000 V/µs max at 690 V, 750 V/µs max at 500 V, 500 V/µs max at 400 V |
| Net weight | 58 kg |
| Ambient air temperature for operation | -10-50 °C |
| Maximum motor cable length | 400 m unshielded cable P motor 250-400 kW at 500...690 V 2, 250 m shielded cable P motor 250-400 kW at 500...690 V 2, 250 m unshielded cable P motor 250-400 kW at 500...690 V 1, 150 m shielded cable P motor 250-400 kW at 500...690 V 1, 300 m unshielded cable P motor 160-220 kW at 380...480 V 1, 250 m shielded cable P motor 160-220 kW at 380...480 V 1, 300 m unshielded cable P motor 90-90 kW at 200...240 V, 250 m shielded cable P motor 90-90 kW at 200...240 V |
| Maximum output frequency | 100 Hz |
| Environment | |
| Ambient air temperature for storage | -25-70 °C |
| IP degree of protection | IP00, IP20 (with kits VW3A9612,613) |
