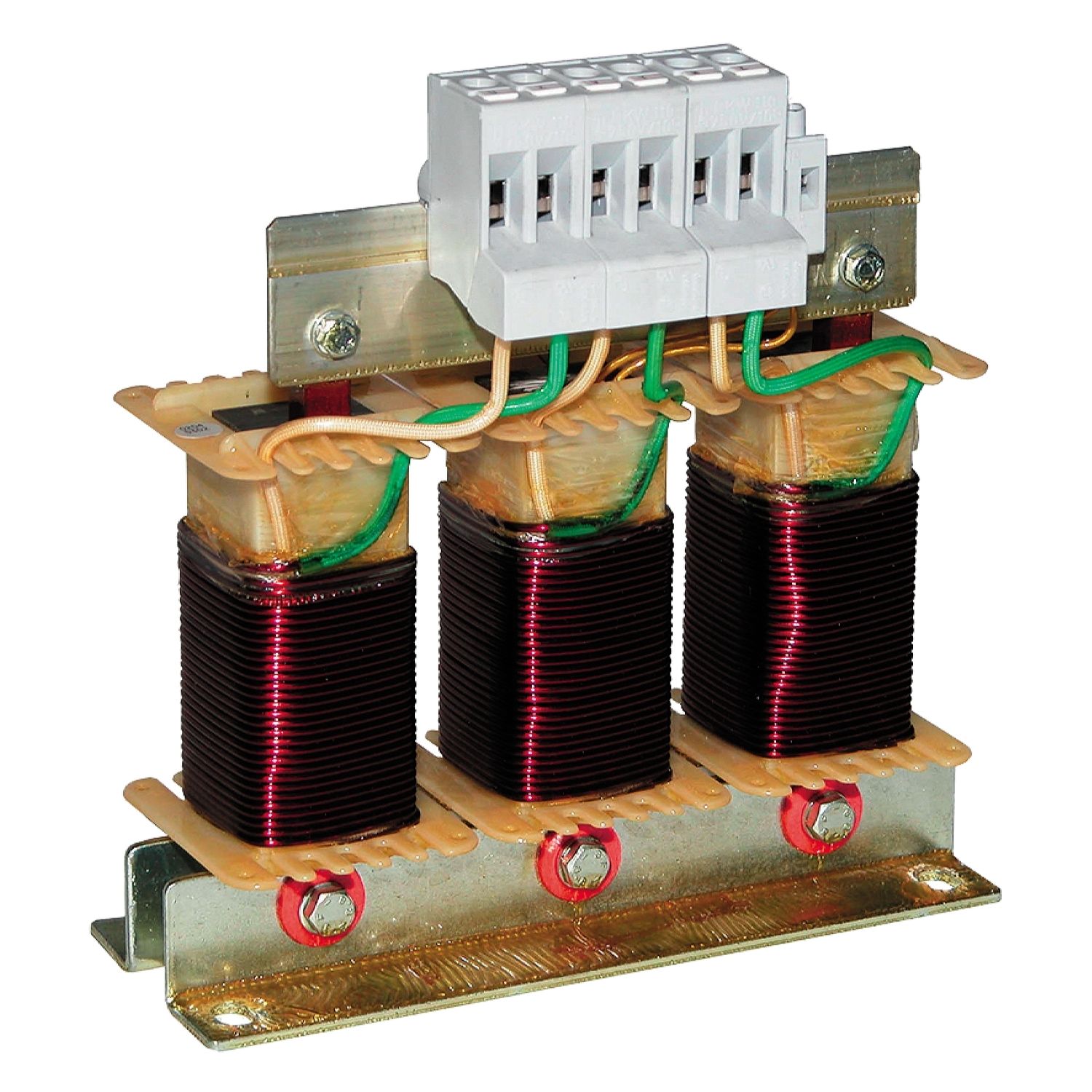

This motor choke is an option for variable speed drives of Altivar 61 / Altivar 71 range. Its rated current is equal to 90A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP00. It weighs 10kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Altivar Process ATV600, Altivar Process ATV900, Altivar 71, Altivar 61, Altivar 212 |
| [In] rated current | 90 A |
| Product specific application | output filter |
| Product compatibility | ATV930 variable speed drive, 15 hp, 600 V three phase, ATV930 variable speed drive, 10 hp, 600 V three phase, ATV930 variable speed drive, 7.5 hp, 600 V three phase, ATV930 variable speed drive, 5 hp, 600 V three phase, ATV930 variable speed drive, 3 hp, 600 V three phase, ATV630 variable speed drive, 15 hp, 600 V three phase, ATV630 variable speed drive, 10 hp, 600 V three phase, ATV630 variable speed drive, 7.5 hp, 600 V three phase, ATV630 variable speed drive, 5 hp, 600 V three phase, ATV630 variable speed drive, 3 hp, 600 V three phase, ATV930 variable speed drive - 11 kW, 500...690 V three phase, ATV930 variable speed drive - 7.5 kW, 500...690 V three phase, ATV930 variable speed drive - 5.5 kW, 500...690 V three phase, ATV930 variable speed drive - 4 kW, 500...690 V three phase, ATV930 variable speed drive - 3 kW, 500...690 V three phase, ATV930 variable speed drive - 2.2 kW, 500...690 V three phase, ATV630 variable speed drive - 11 kW, 500...690 V three phase, ATV630 variable speed drive - 7.5 kW, 500...690 V three phase, ATV630 variable speed drive - 5.5 kW, 500...690 V three phase, ATV630 variable speed drive - 4 kW, 500...690 V three phase, ATV630 variable speed drive - 3 kW, 500...690 V three phase, ATV630 variable speed drive - 2.2 kW, 500...690 V three phase, ATV71WD37N4, ATV71WD30N4, ATV71HD37N4, ATV71HD30Y, ATV71HD22Y, ATV71HD22N4, ATV71HD22M3X, ATV71HD18Y, ATV71HD18M3X, ATV71HD15Y, ATV71HD15M3X, ATV71HD11M3X, ATV61WD37N4C, ATV61WD37N4, ATV61WD30N4C, ATV61WD30N4, ATV61WD22N4C, ATV61WD22N4, ATV61HD37N4, ATV61HD30Y, ATV61HD30N4, ATV61HD22Y, ATV61HD22N4, ATV61HD22M3X, ATV61HD18Y, ATV61HD18M3X, ATV61HD15Y, ATV61HD15M3X, ATV61HD11M3X, ATV212WU75N4C, ATV212WU75N4, ATV212WU55N4C, ATV212WU55N4, ATV212WU40N4C, ATV212WU40N4, ATV212WU30N4C, ATV212WU30N4, ATV212WU22N4C, ATV212WU22N4, ATV212WU15N4C, ATV212WU15N4, ATV212WD11N4C, ATV212WD11N4, ATV212W075N4C, ATV212W075N4, ATV212HU75N4, ATV212HU75M3X, ATV212HU55N4, ATV212HU55M3X, ATV212HU40N4, ATV212HU40M3X, ATV212HU30N4, ATV212HU30M3X, ATV212HU22N4, ATV212HU22M3X, ATV212HU15N4, ATV212HU15M3X, ATV212HD11N4, ATV212HD11M3X, ATV212H075N4, ATV212H075M3X, ATV71WU75N4, ATV71WU55N4, ATV71WD18N4, ATV71WD15N4, ATV71WD11N4, ATV71PU75N4Z, ATV71PU55N4Z, ATV71PD11N4Z, ATV71HU75Y, ATV71HU75S6X, ATV71HU75N4, ATV71HU75M3, ATV71HU55Y, ATV71HU55S6X, ATV71HU55N4, ATV71HU55M3, ATV71HU40Y, ATV71HU40S6X, ATV71HU40M3, ATV71HU30Y, ATV71HU30S6X, ATV71HU30M3, ATV71HU22Y, ATV71HU22S6X, ATV71HU15S6X, ATV71HD18N4, ATV71HD15N4, ATV71HD11Y, ATV71HD11N4, ATV61WU75N4C, ATV61WU75N4, ATV61WU55N4C, ATV61WU55N4, ATV61WD18N4C, ATV61WD18N4, ATV61WD15N4C, ATV61WD15N4, ATV61WD11N4C, ATV61WD11N4, ATV61HU75Y, ATV61HU75S6X, ATV61HU75N4, ATV61HU75M3, ATV61HU55Y, ATV61HU55S6X, ATV61HU55N4, ATV61HU55M3, ATV61HU40Y, ATV61HU40S6X, ATV61HU40M3, ATV61HU30Y, ATV61HU30S6X, ATV61HU30M3, ATV61HU22S6X, ATV61HD18N4, ATV61HD15N4, ATV61HD11Y, ATV61HD11N4, ATV71WU40N4, ATV71WU30N4, ATV71WU22N4, ATV71WU15N4, ATV71W075N4, ATV71PU40N4Z, ATV71PU30N4Z, ATV71PU22N4Z, ATV71PU15N4Z, ATV71P075N4Z, ATV71HU40N4, ATV71HU30N4, ATV71HU22N4, ATV71HU15N4, ATV71H075N4, ATV61WU40N4C, ATV61WU40N4, ATV61WU30N4C, ATV61WU30N4, ATV61WU22N4C, ATV61WU22N4, ATV61WU15N4C, ATV61WU15N4, ATV61W075N4C, ATV61W075N4, ATV61HU40N4, ATV61HU30N4, ATV61HU22N4, ATV61HU15N4, ATV61H075N4 |
| Sale per indivisible quantity | 1 |
| Product or component type | motor choke |
| Electrical connection | bare wires diameter: 9 mm |
| Complementary | |
| Thermal losses | 350 W |
| DV/dt | 1000 V/µs max at 690 V, 750 V/µs max at 500 V, 500 V/µs max at 400 V |
| Net weight | 10 kg |
| Protection type | thermal protection by temperature-controlled switch, tripping temperature: 125 °C for <250 V AC, <0.5 A |
| Ambient air temperature for operation | -10-50 °C |
| Maximum motor cable length | 166 m unshielded cable P motor 37-37 kW at 380...480 V 1, 97 m shielded cable P motor 37-37 kW at 380...480 V 1, 150 m unshielded cable P motor 2.2-30 kW at 500...690 V 2, 100 m shielded cable P motor 2.2-30 kW at 500...690 V 2, 250 m unshielded cable P motor 2.2-7.5 kW at 500...690 V 2, 150 m shielded cable P motor 2.2-7.5 kW at 500...690 V 2, 100 m unshielded cable P motor 2.2-30 kW at 500...690 V 1, 65 m shielded cable P motor 2.2-30 kW at 500...690 V 1, 150 m unshielded cable P motor 2.2-7.5 kW at 500...600 V 1, 75 m shielded cable P motor 2.2-7.5 kW at 500...600 V 1, 170 m unshielded cable P motor 22-30 kW at 380...480 V 1, 140 m shielded cable P motor 22-30 kW at 380...480 V 1, 200 m unshielded cable P motor 0.75-18.5 kW at 380...480 V 1, 160 m shielded cable P motor 0.75-18.5 kW at 380...480 V 1, 300 m unshielded cable P motor 11-22 kW at 200...240 V 1, 150 m shielded cable P motor 11-22 kW at 200...240 V 1, 300 m unshielded cable P motor 2.2-7.5 kW at 200...240 V 1, 300 m shielded cable P motor 2.2-7.5 kW at 200...240 V 1 |
| Maximum output frequency | 100 Hz |
| Environment | |
| Ambient air temperature for storage | -25-70 °C |
| IP degree of protection | IP00, IP20 (with kits VW3A9612,613) |
