Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Thermal losses | 25 W |
| Range compatibility | Altivar Process ATV600, Altivar Machine ATV340, Altivar Process ATV900 |
| [In] rated current | 160 A |
| Product specific application | radio interference input filter |
| Mounting location | at variable speed drive side |
| Network number of phases | three phase |

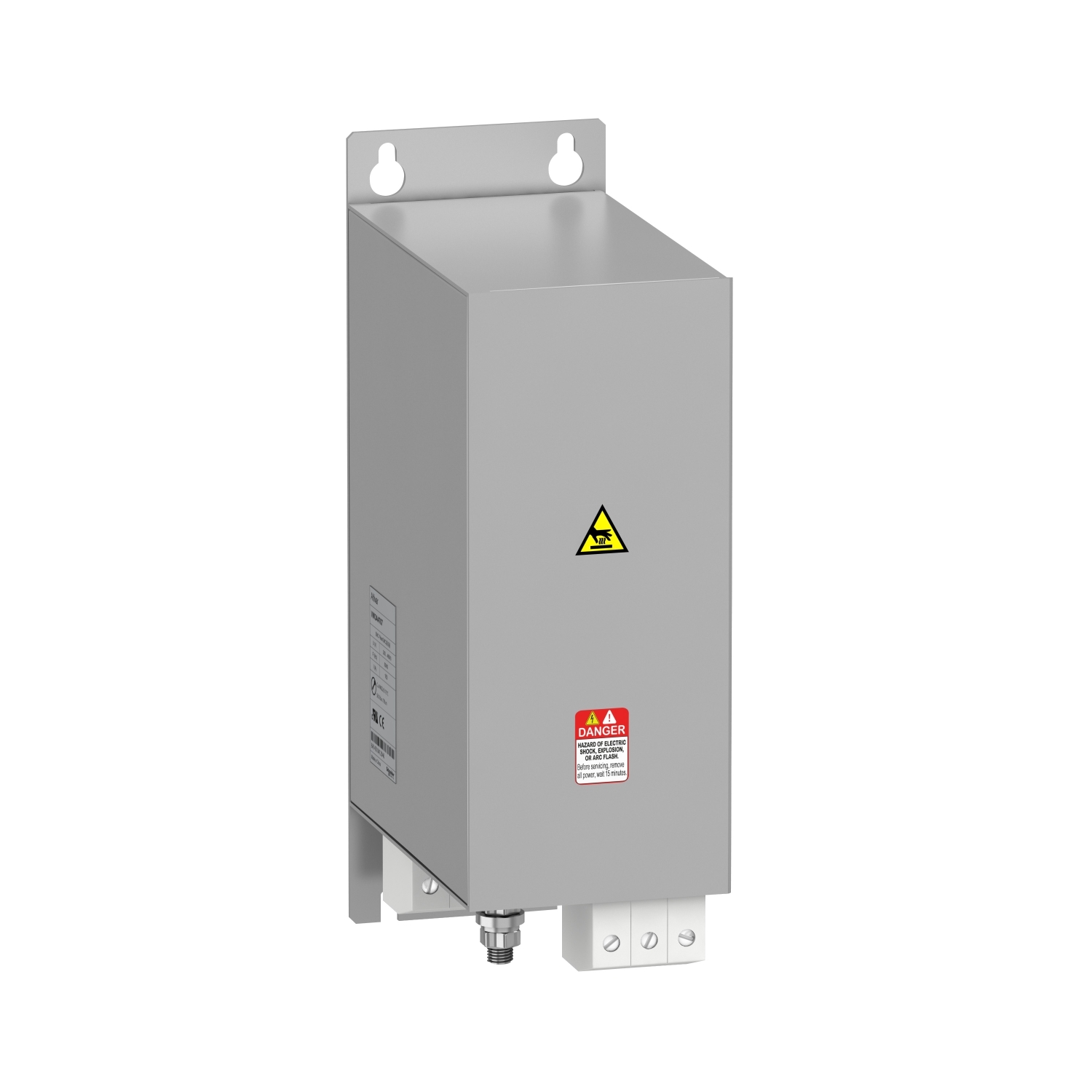

| Product or component type | EMC input filter |
| Product compatibility | variable speed drive ATV340 motor: 45 kW, 380...480 V, variable speed drive ATV950 wall mount, motor: 55 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 37 kW, 200...240 V, variable speed drive ATV930 wall mount, motor: 30 kW, 200...240 V, variable speed drive ATV930 wall mount, motor: 55 kW, 380...480 V, variable speed drive ATV650 wall mount, motor: 55 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 37 kW, 200...240 V, variable speed drive ATV630 wall mount, motor: 30 kW, 200...240 V, variable speed drive ATV630 wall mount, motor: 55 kW, 380...480 V |
| Range of product | Altivar |
| Complementary | |
| Depth | 240 mm |
| Width | 130 mm |
| Electrical connection | terminal 150 mm² 300 kcmil |
| Network rated voltage | 380-480 V, 200-240 V |
| Earth leakage current | 13.9 mA at 400 V 50 Hz TT, 13.9 mA at 400 V 50 Hz TN |
| Net weight | 8.5 kg |
| Maximum motor cable length | 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 380...480 V, 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 200...240 V, 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 200...240 V, 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 200...240 V, 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 380...480 V, 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 380...480 V |
| Tolerance | 10 % |
| Height | 395 mm |
| Mechanical robustness | vibrations class 3M4 conforming to IEC 60721-3-3, shocks class 3M4 conforming to IEC 60721-3-3 |
| Environment | |
| Operating altitude | 1000...4000 m with current derating 1 % per 100 m, 0...1000 m without current derating |
| IP degree of protection | IP21with kit VW3A47907, IP20mounting side by side |
| Relative humidity | 5-95 % without condensation conforming to IEC 61800-5-1 |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | 50-60 °C (with current derating 1.5 % per °C), -10-50 °C (without current derating) |
| Standards | IEC 61800-3 |
