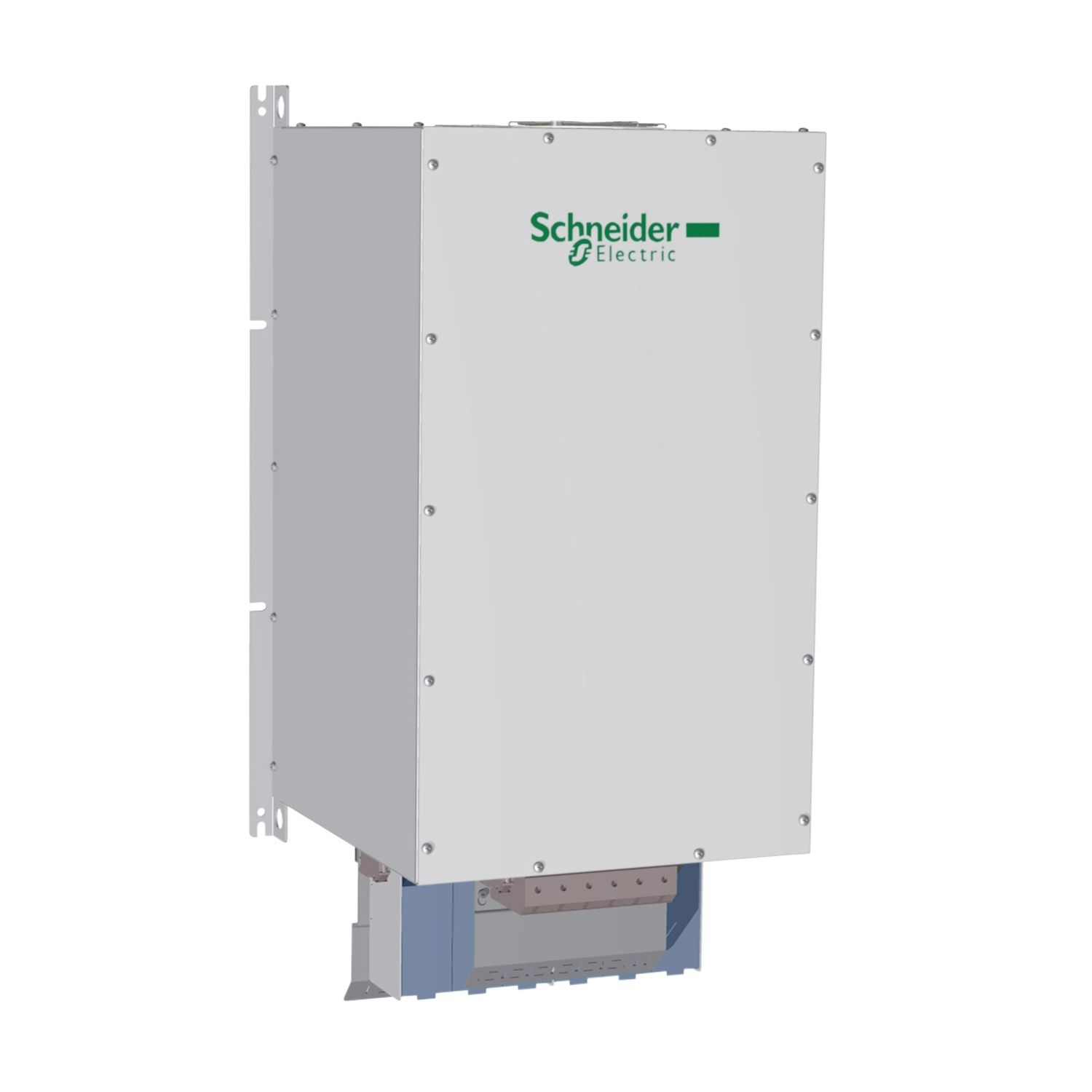

passive filter, Altivar, 240A, 460V, 60Hz, for variable speed drive

Manufacturer: Schneider Electric

SKU: VW3A46172

GTIN: 3606480652707

Catalog

Instruction sheet

Old price: $37,948.90 inc GST

Price: $29,387.63 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Product specific application	reduction of current harmonics
Product or component type	passive filter
Complementary
Supply frequency	60 Hz +/- 2 %
Range compatibility	Altivar 61, Altivar Process ATV600, Altivar Process ATV900, Altivar 71
Max current	1.5 x nominal current (duration = 60 s)
Quantity per drive	2 filters per drive for variable speed drive ATV930 wall mount, motor: 315 kW/500 hp, 2 filters per drive for variable speed drive ATV630 wall mount, motor: 315 kW/500 hp, 1 filter per drive for variable speed drive ATV71Q motor: 132 kW/200 hp, 2 filters per drive for variable speed drive ATV71Q motor: 315 kW/500 hp, 1 filter per drive for variable speed drive ATV71Q motor: 160 kW/250 hp, 1 filter per drive for variable speed drive ATV61Q motor: 160 kW/250 hp, 2 filters per drive for variable speed drive ATV71H motor: 315 kW/500 hp, 1 filter per drive for variable speed drive ATV71H motor: 160 kW/250 hp, 1 filter per drive for variable speed drive ATV61H motor: 160 kW/250 hp, 1 filter per drive for variable speed drive ATV930 wall mount, motor: 132 kW/200 hp, 1 filter per drive for variable speed drive ATV630 wall mount, motor: 132 kW/200 hp, 2 filters per drive for variable speed drive ATV61Q motor: 280 kW/450 hp, 2 filters per drive for variable speed drive ATV61H motor: 280 kW/450 hp, 1 filter per drive for variable speed drive ATV61Q motor: 132 kW/200 hp, 1 filter per drive for variable speed drive ATV71H motor: 132 kW/200 hp, 1 filter per drive for variable speed drive ATV61H motor: 132 kW/200 hp
[Us] rated supply voltage	480 V +/- 10 %
Electrical insulation class	class F
Net weight	172 kg
Network number of phases	3 phases
Efficiency	98 %
THDI	5 % for variable speed drive ATV930 motor: 315 kW/500 hp, 5 % for variable speed drive ATV630 motor: 315 kW/500 hp, 5 % for variable speed drive ATV930 motor: 132 kW/200 hp, 5 % for variable speed drive ATV630 motor: 132 kW/200 hp, 5 % for variable speed drive ATV71Q motor: 315 kW/500 hp, 5 % for variable speed drive ATV71Q motor: 160 kW/250 hp, 5 % for variable speed drive ATV61Q motor: 160 kW/250 hp, 5 % for variable speed drive ATV71H motor: 315 kW/500 hp, 5 % for variable speed drive ATV71H motor: 160 kW/250 hp, 5 % for variable speed drive ATV61H motor: 160 kW/250 hp, 5 % for variable speed drive ATV61Q motor: 280 kW/450 hp, 5 % for variable speed drive ATV61H motor: 280 kW/450 hp, 5 % for variable speed drive ATV71Q motor: 132 kW/200 hp, 5 % for variable speed drive ATV61Q motor: 132 kW/200 hp, 5 % for variable speed drive ATV71H motor: 132 kW/200 hp, 5 % for variable speed drive ATV61H motor: 132 kW/200 hp
Thermal losses	1194 W
[In] rated current	240 A for output, 231 A for input
Electrical connection	X1-1...X2-3 terminal, connection capacity: 25...300 mm², A, B terminal, connection capacity: 2.5 mm²
Cos phi	0.99-0.99 (100 % of line current), 0.85-0.85 (75 % of line current), 1-1 (150 % of line current)
Environment
Operating altitude	> 1000...4000 m with current derating 5 % per 1000 m, <= 1000 m without current derating
Relative humidity	5-85 % without condensation
Ambient air temperature for storage	-25-65 °C during transport, -25-55 °C storage in original packaging
IP degree of protection	IP55 (enclosure mounting), IP20
Vibration resistance	0.7 gn (f= 13.2-150 Hz) conforming to IEC 60068-2-6, 2 mm peak to peak (f= 5-13.2 Hz) conforming to IEC 60068-2-6
Ambient air temperature for operation	5-45 °C (without current derating), 45-60 °C (with current derating 3 % per °C)
Standards	IEC 61000-2-2, IEC 61000-2-4, IEC 61000-3-12, G5/4 engineering recommendation, IEC 61000-3-2, IEC 61000-3-4
