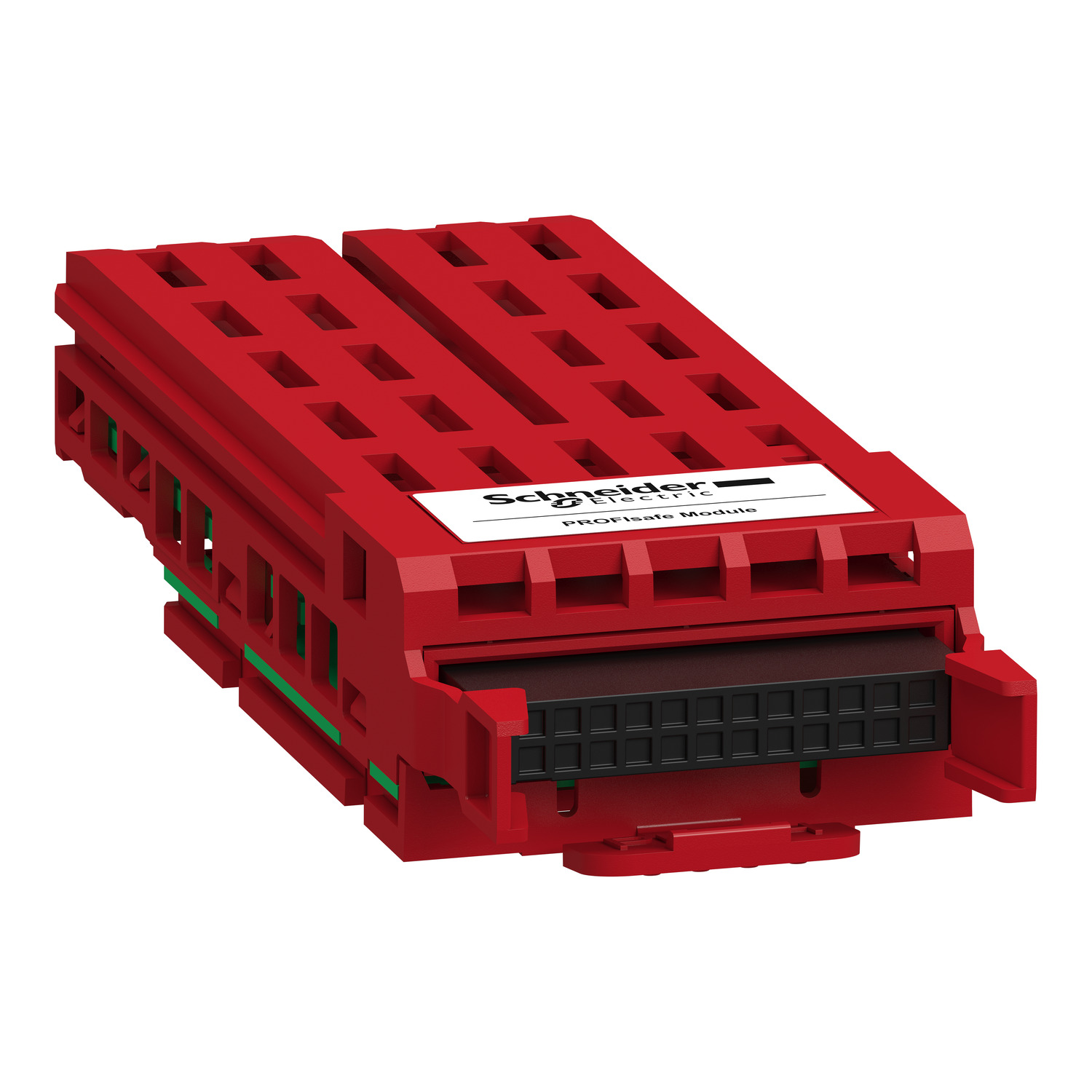

PROFIsafe module, Altivar Process ATV900, Altivar 340, for variable speed drives
Manufacturer: Schneider Electric
SKU: VW3A3807
GTIN: 3606482067875
This safety module is an option for variable speed drives of Altivar range. It provides a fail-safe Ethernet connection between the drive and a Safey PLC using the PROFIsafe protocol over PROFINET. It is compatible with Altivar Machine ATV340 and Altivar Process ATV900 drives. It includes the Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Limited Speed (SLS), and Safe Maximum Speed (SMS) functions. It weights 0,150kg (0,331lb). Altivar Process drives include numerous advanced functions for the more complex applications in each market segment, the safety functions are provided to help protect people and equipment. The safety functions are compliant with the IEC/EN 61800-5-2 standard and the module is TUV NORD certified., Refer to the documentation for proper connection to ensure PROFIsafe functionality. Ideal for segments such as Mining & Metals, Energy & Chemicals, and Consumer Packaged Goods, with a power range from 0.75kW to 2600kW.
Availability: Out of stock
Old price: $965.80 inc GST
$747.92 inc GST
Supported cards
Supported cards

Products specifications

Attribute name Attribute value
Main
Product or component type safety module
Product specific application material working, material handling, architecture without suspended/vertical or pulling loads
Range of product Altivar Process ATV900
Complementary
Mounting support Integrated in drive
Net weight 0.02 kg
Width 41 mm
Depth 23.25 mm
Height 109 mm
Safety function STO (safe torque off), SS1 (safe stop 1), SLS (safe limited speed), SMS (safe maximum speed)
Environment
Standards EN 61800-5-2
