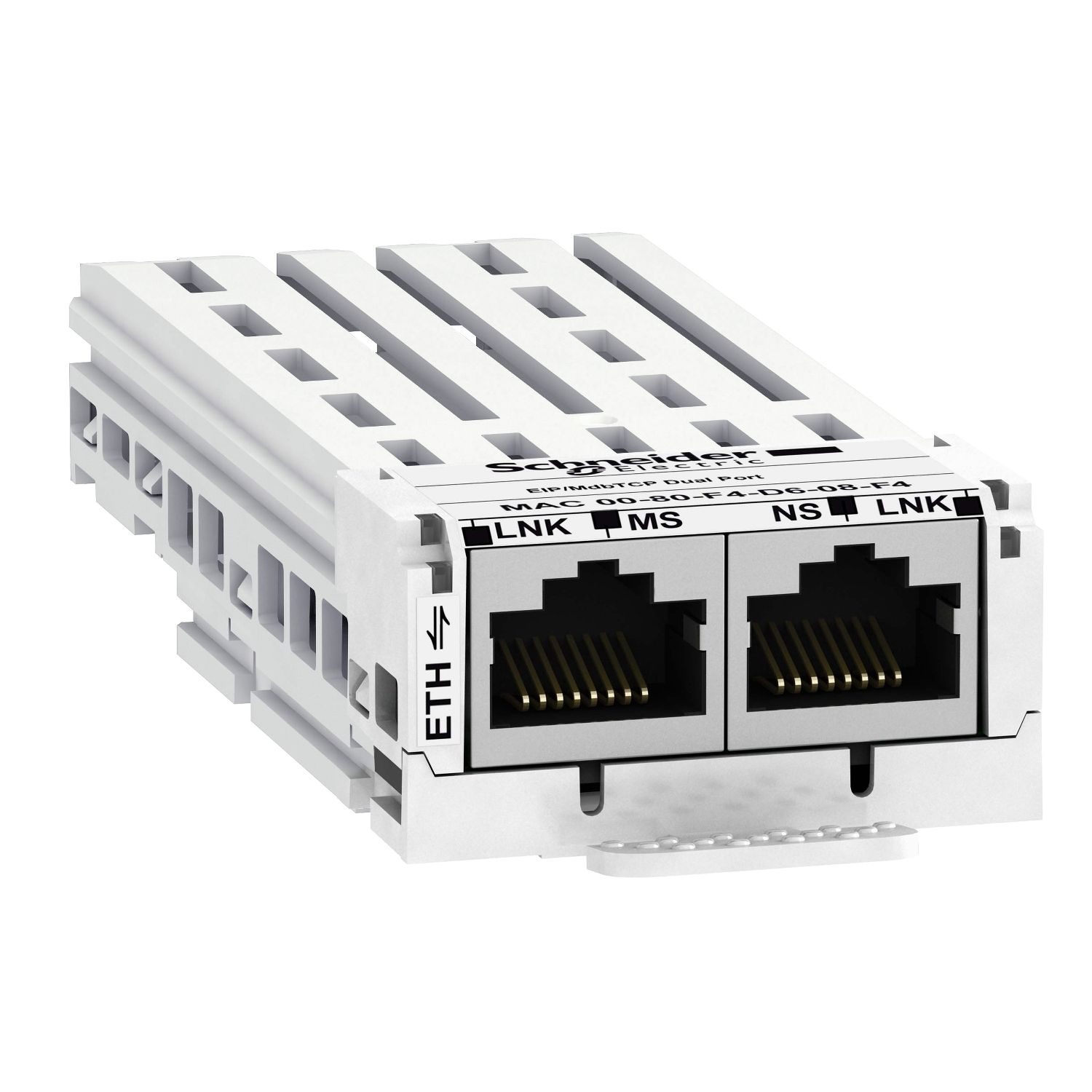

This Ethernet/IP, ModbusTCP communication module enables integration of your drive in your process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600 and Altivar process Modular. It has 2 x RJ45 connector.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Altivar |
| Product or component type | communication module |
| Complementary | |
| Web server | embedded HTTP server |
| Range compatibility | Altivar Process Modular, Altivar Process ATV600 |
| Web services | Ethernet setting and diagnostic, pump function setting and monitoring, drive monitor, customizable home page, upgrade drive firmware, widgets (ID, control, data table, diagnostic, charts), energy monitoring, drive setting and diagnostic, save/restore drive configuration |
| Display type | 1 LED for TX/RX (Transmit/Receive port 2), 1 LED for TX/RX (Transmit/Receive port 1), 1 LED for NS (Network Status), 1 LED for MS (Module Status) |
| Topology | daisy chain |
| Exchange mode | half duplex and full duplex |
| Transmission rate | 10/100 Mbps |
| Time synchronisation protocol | SNTP |
| Communication port protocol | EtherNet/IP, Modbus TCP |
| Communication service | FDR for Ethernet IP/Modbus TCP, 32 parameters IN - 32 parameters OUT implicit messaging for Ethernet IP/Modbus TCP, auto-MDIX for Ethernet IP/Modbus TCP, ODVA AC drive and CiA 402 profile for Ethernet IP/Modbus TCP, FTP for Ethernet IP, RSTP support for Ethernet IP, Ethernet/IP adapter for Ethernet IP, Modbus TCP server for Ethernet IP/Modbus TCP, SNMP agent for Ethernet IP |
| Net weight | 0.2 kg |
| Electrical connection | 2 connectors RJ45, Ethernet IP/Modbus TCP |
| Bus profile | CiA 402, CIP AC Drive |
| Communication network type | IPv6 (internet protocol) |
| Environment | |
| Product certifications | Achilles: level 2, ODVA |
