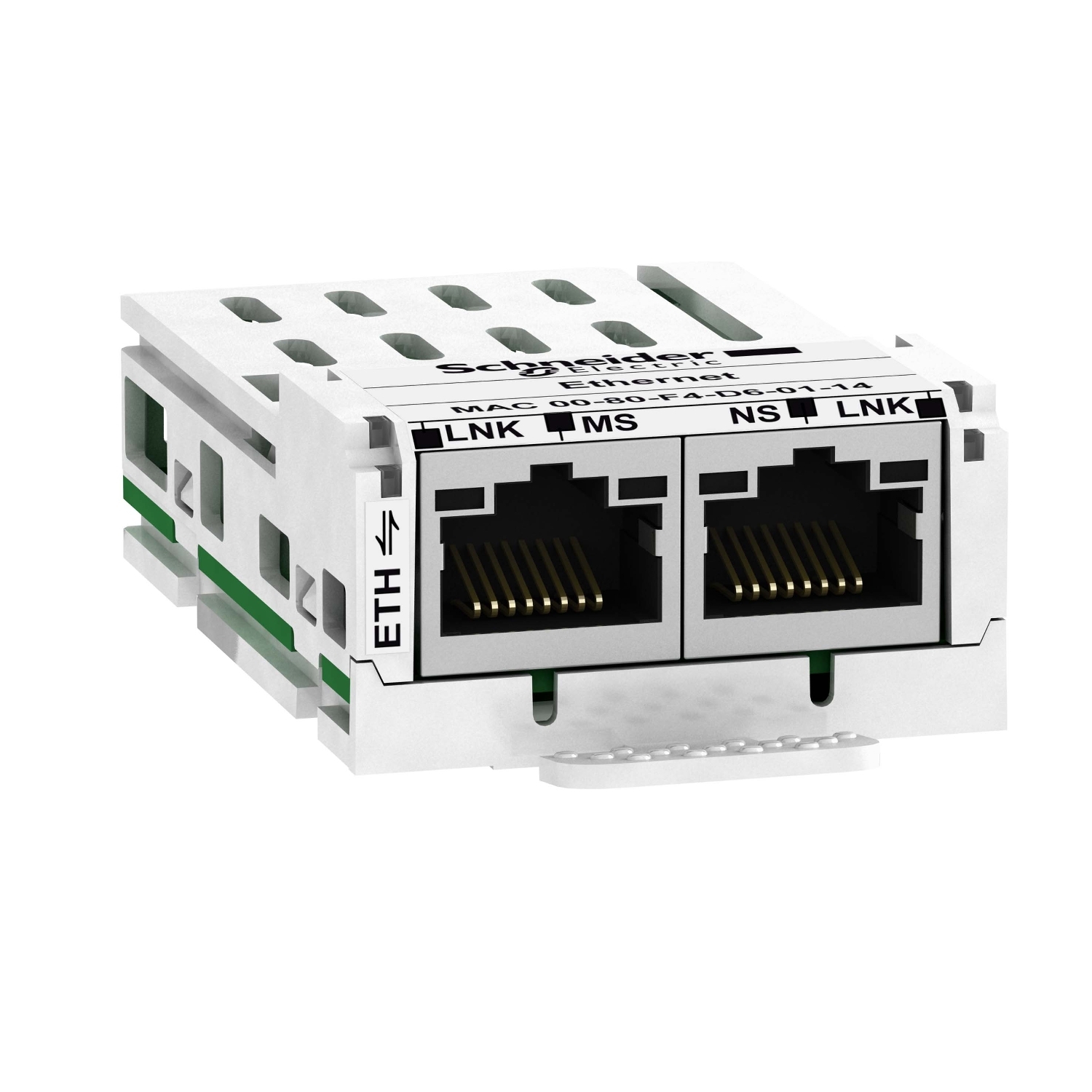

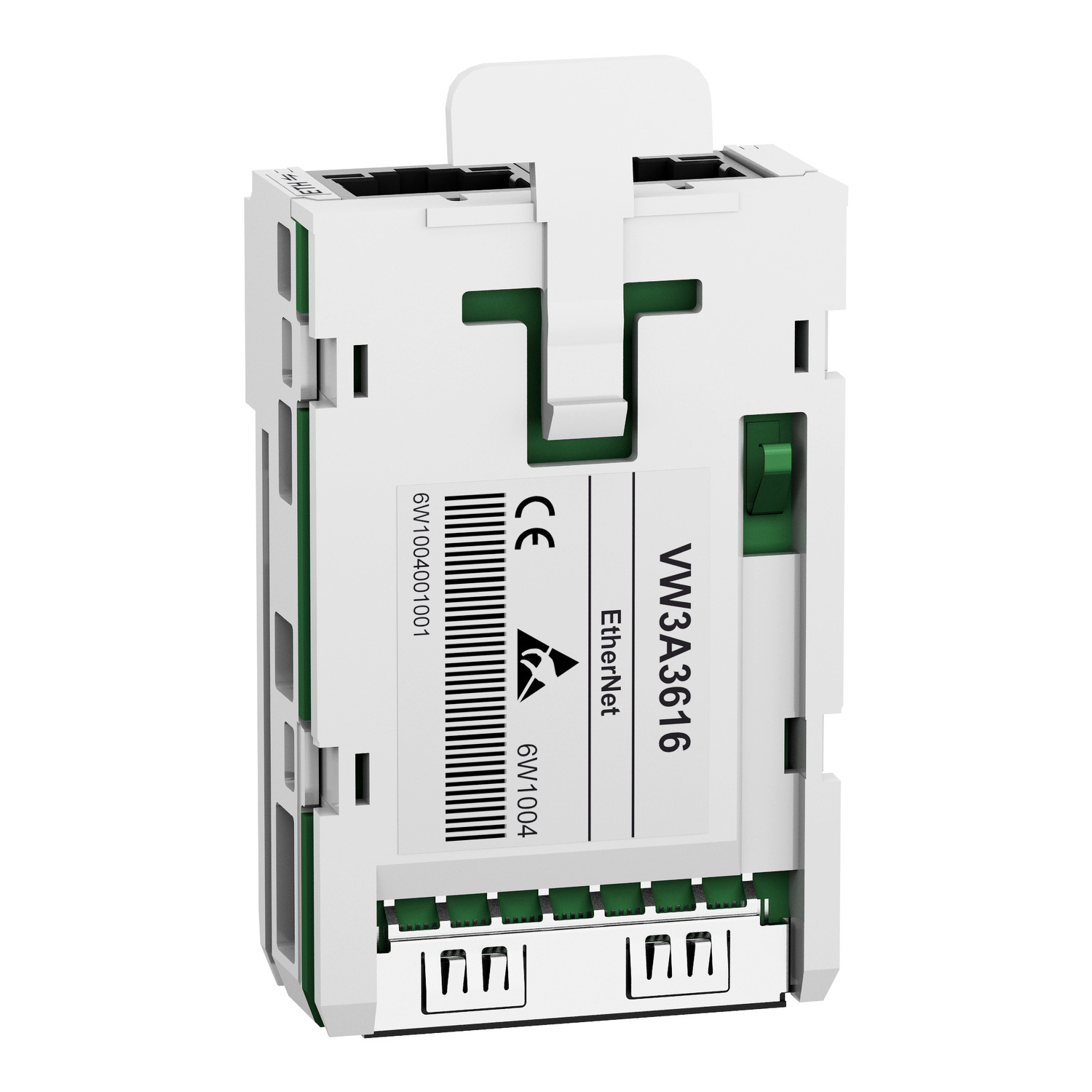

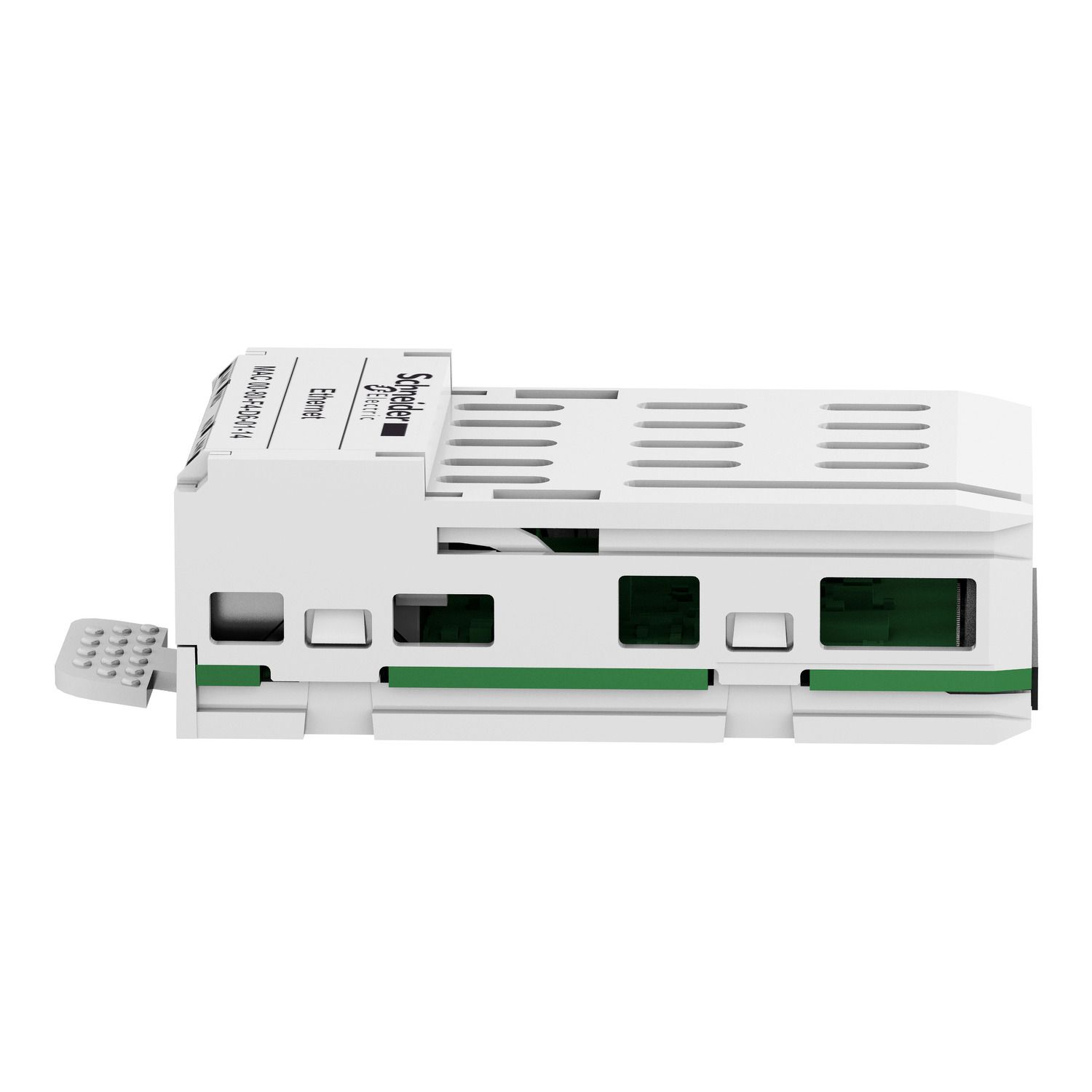

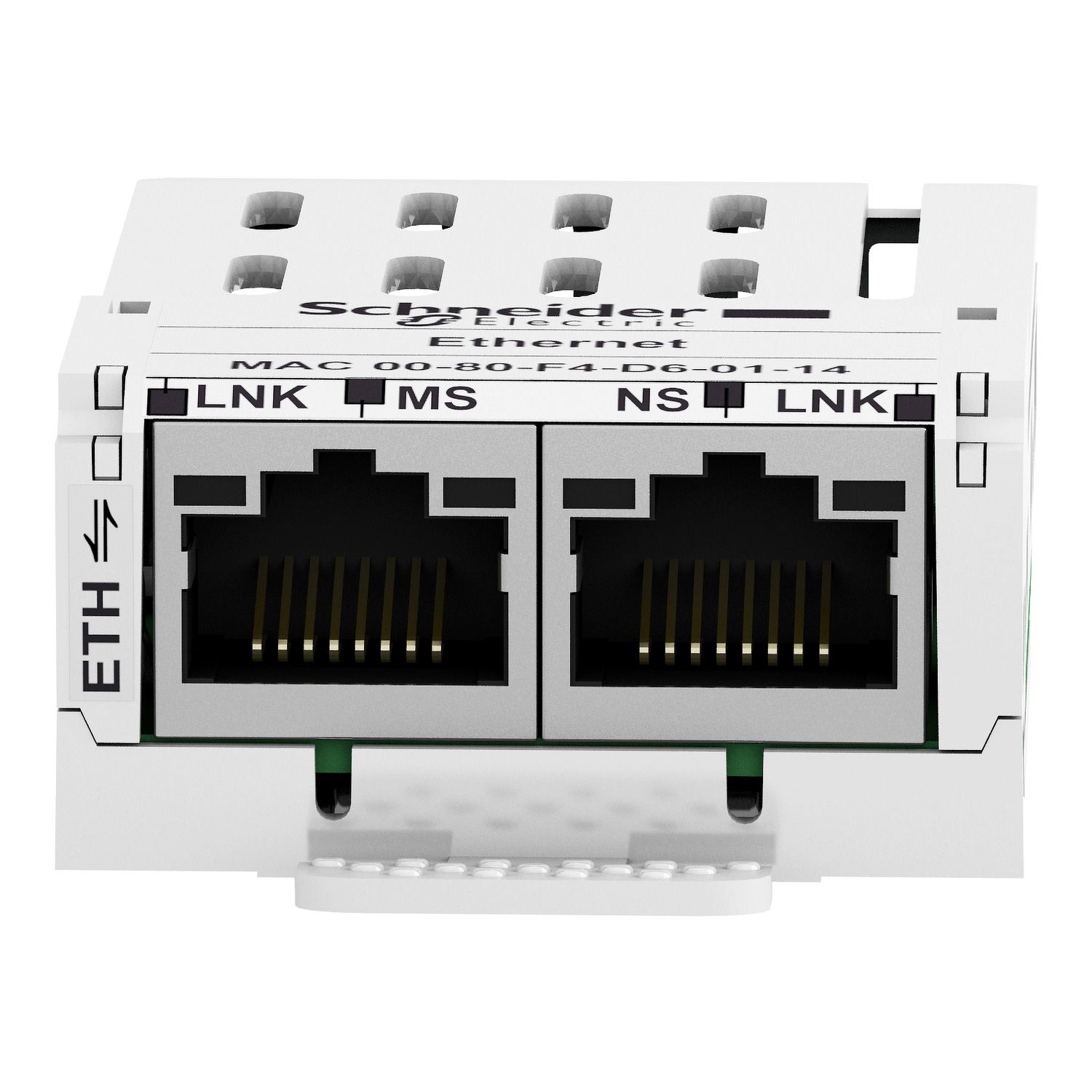

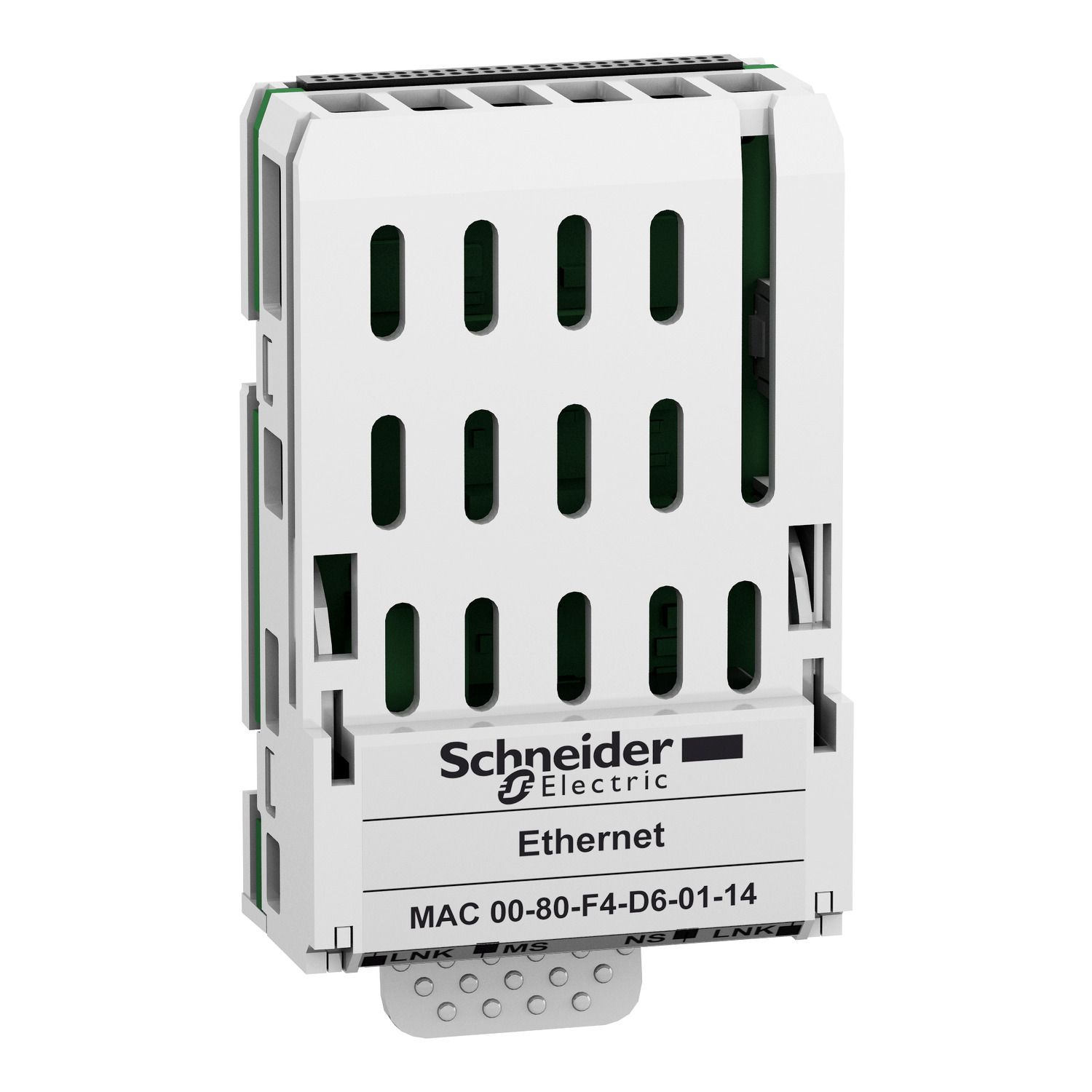

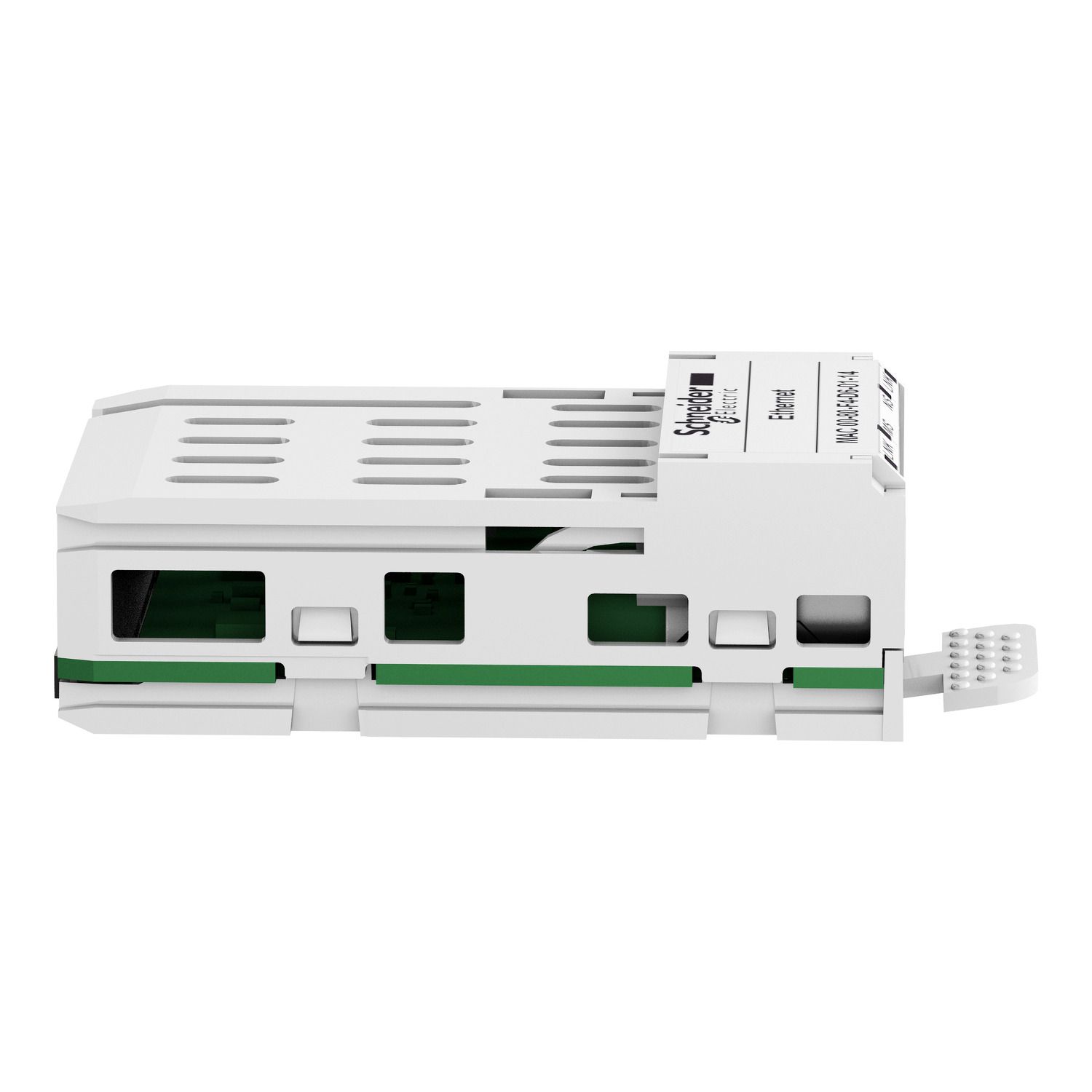

This Altivar Ethernet TCP/IP communication module has 2 ports with RJ45 connectors. It is compatible with Altivar Machine ATV320, Lexium 32 and Altivar 32. Removable module allows last minute decisions on drive communication protocol and thus facilitates installation project management.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accessory / separate part category | communication accessories |
| Range of product | Altivar |
| Product or component type | communication module |
| Complementary | |
| Product compatibility | Lexium 32M |
| Range compatibility | Lexium 32, Altivar 32, Altivar Machine ATV320 |
| Display type | 1 LED for Modbus TCP port activity, 1 LED for Ethernet port activity, 1 LED for NS (Network Status), 1 LED for MS (Module Status) |
| Exchange mode | half duplex and full duplex |
| Addressing | IP addressing manual, BOOTP or DHCP |
| Transmission rate | 10/100 Mbps |
| Communication port protocol | EtherNet/IP, Modbus TCP |
| Communication service | fixed communication monitoring adjusted by Ethernet IP scanner adaptor (Master) for Ethernet IP, Master/Slave hierarchy ODVA AC drive profile and CiA 402 profile for Ethernet IP, SNMP agent for Ethernet IP, communication monitoring for Modbus TCP, I/O scanner : read/write, 6 words maximum for Modbus TCP, diagnostics (08) for Modbus TCP, read device identification (43) for Modbus TCP, read/write multiple registers (23) for Modbus TCP, write multiple registers (16), 63 words max for Modbus TCP, write single register (06) for Modbus TCP, read input registers (04), 63 words max for Modbus TCP, read holding registers (03), 63 words max for Modbus TCP, FDR Agent for Ethernet IP/Modbus TCP, up to 8 connections (includes connections of Modbus TCP/Ethernet IP) for Ethernet IP/Modbus TCP |
| Net weight | 0.3 kg |
| Electrical connection | 1 connector RJ45, Modbus TCP, 1 connector RJ45, EtherNet/IP |
