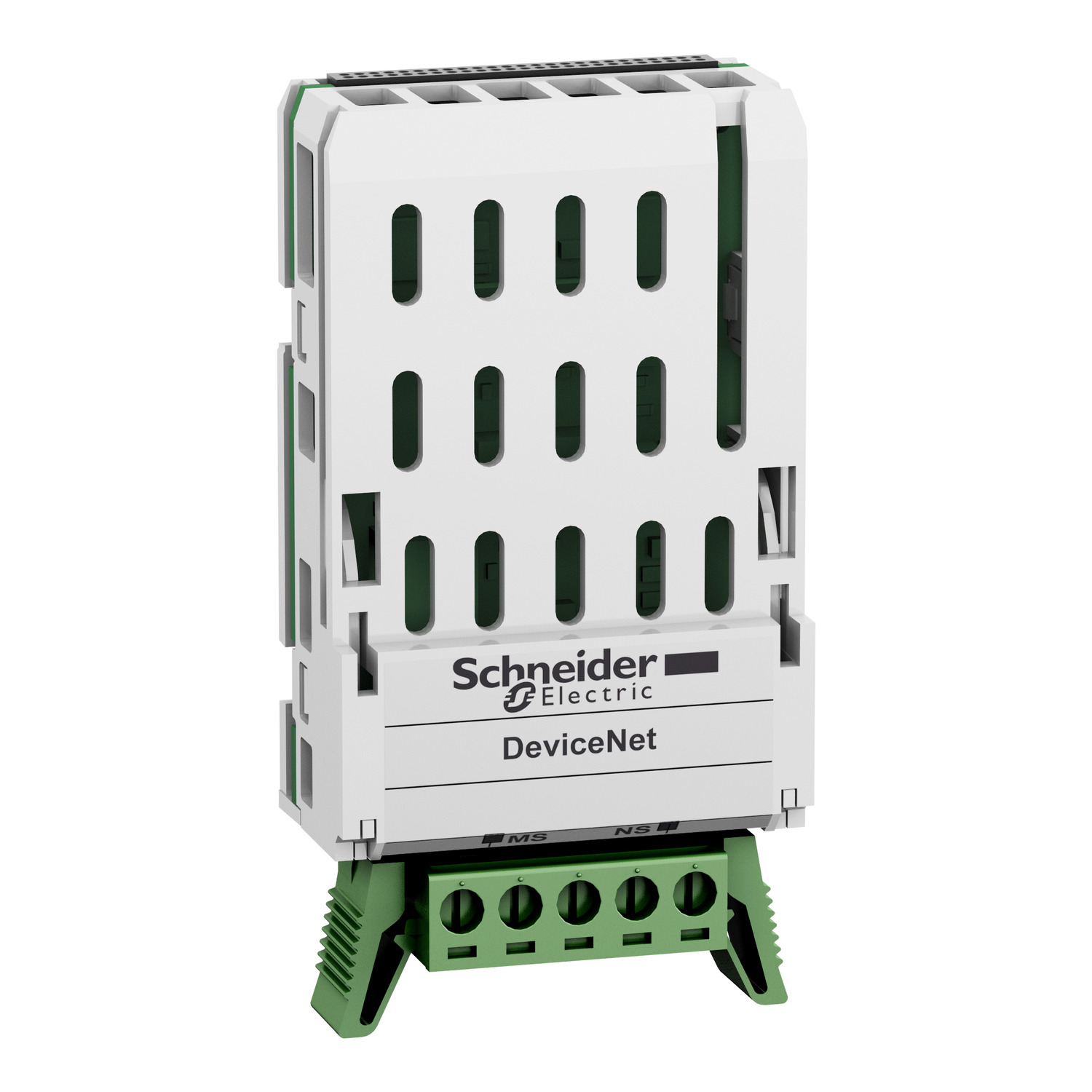

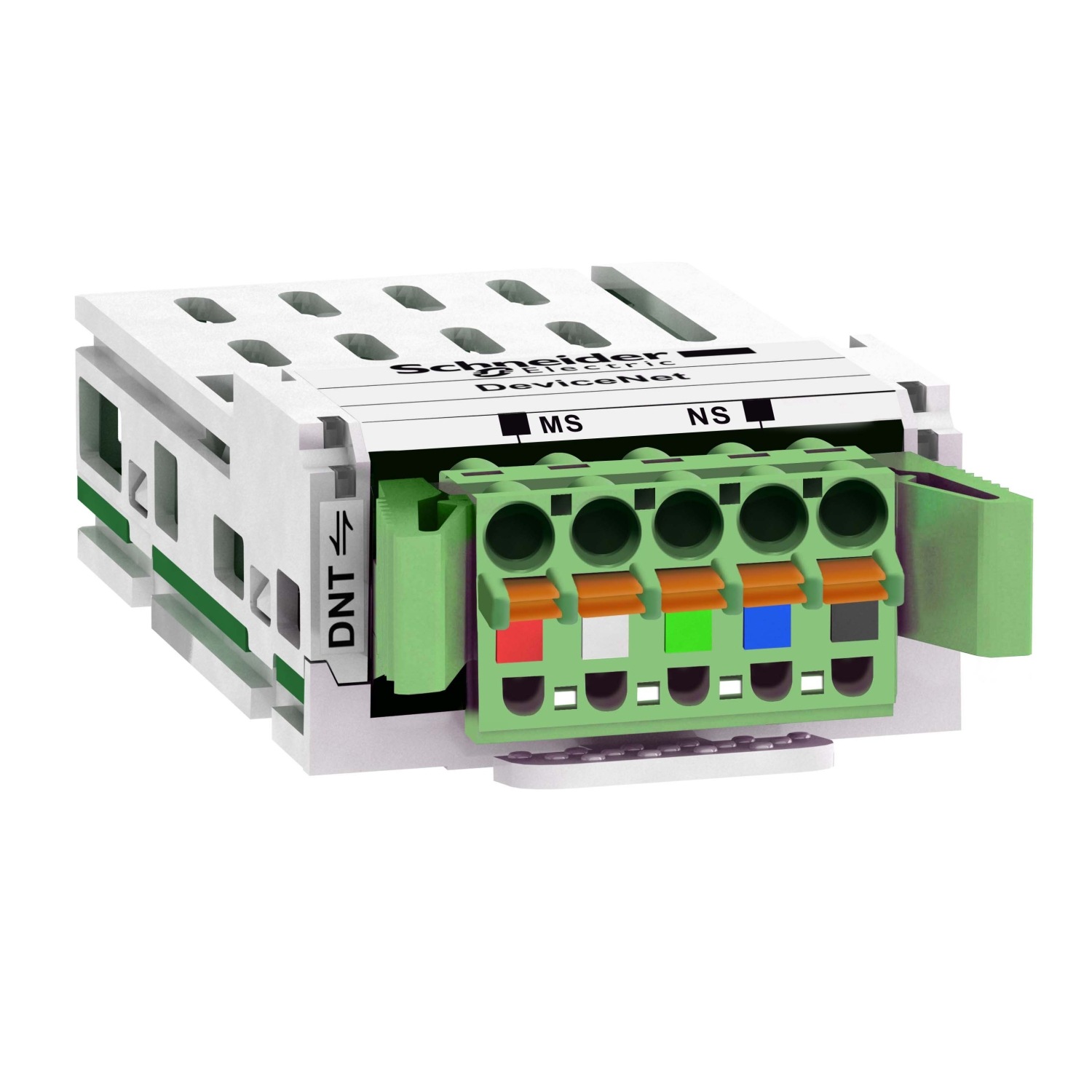

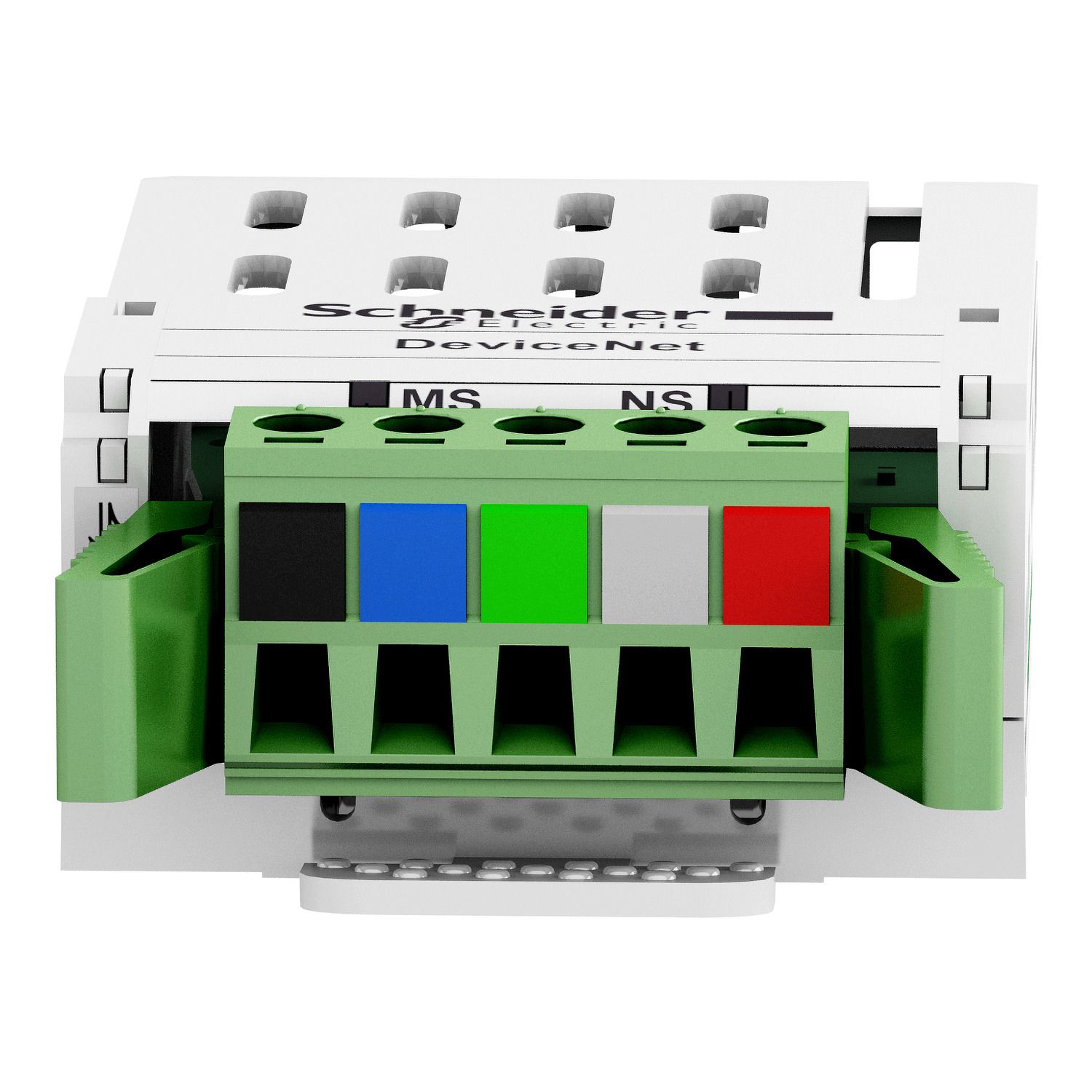

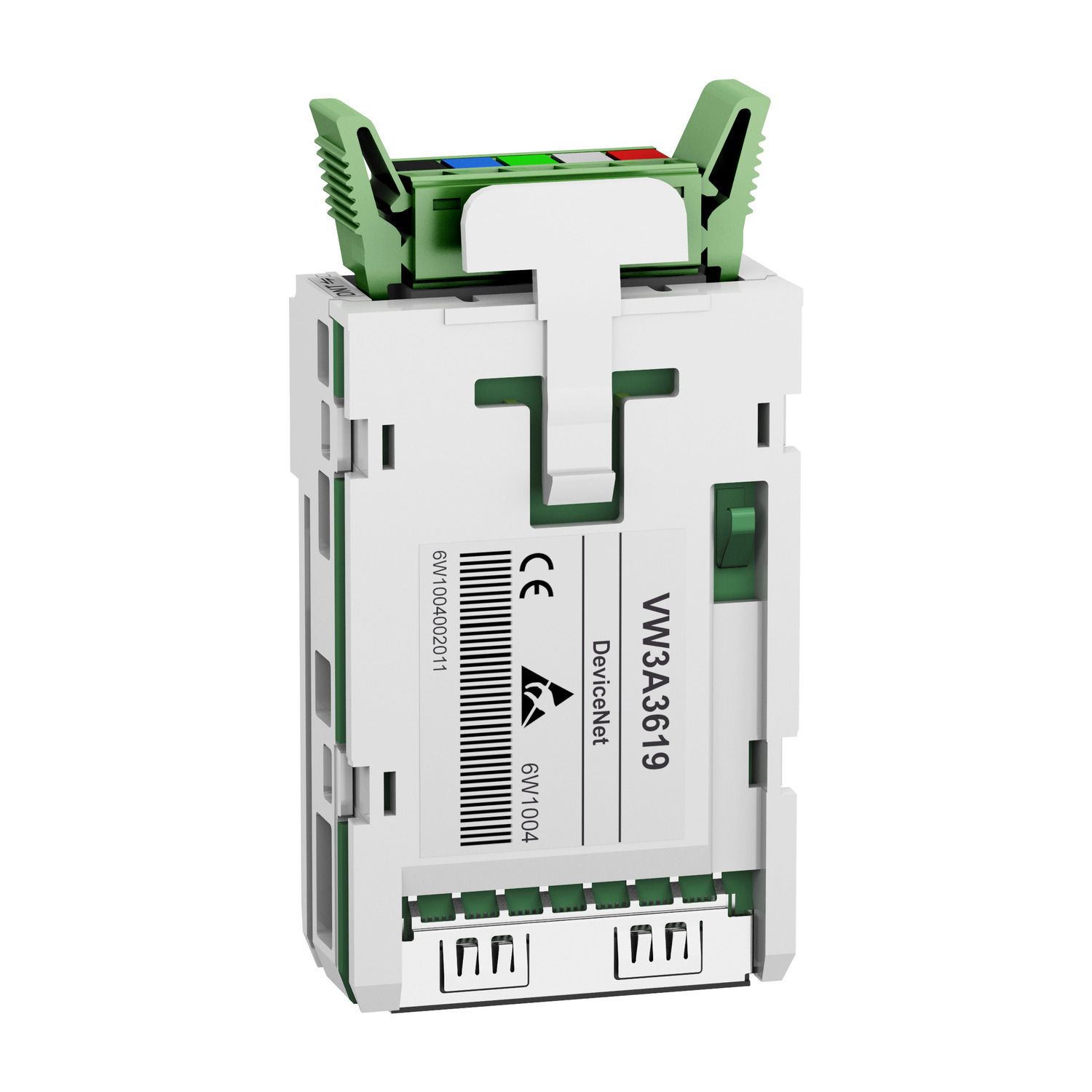

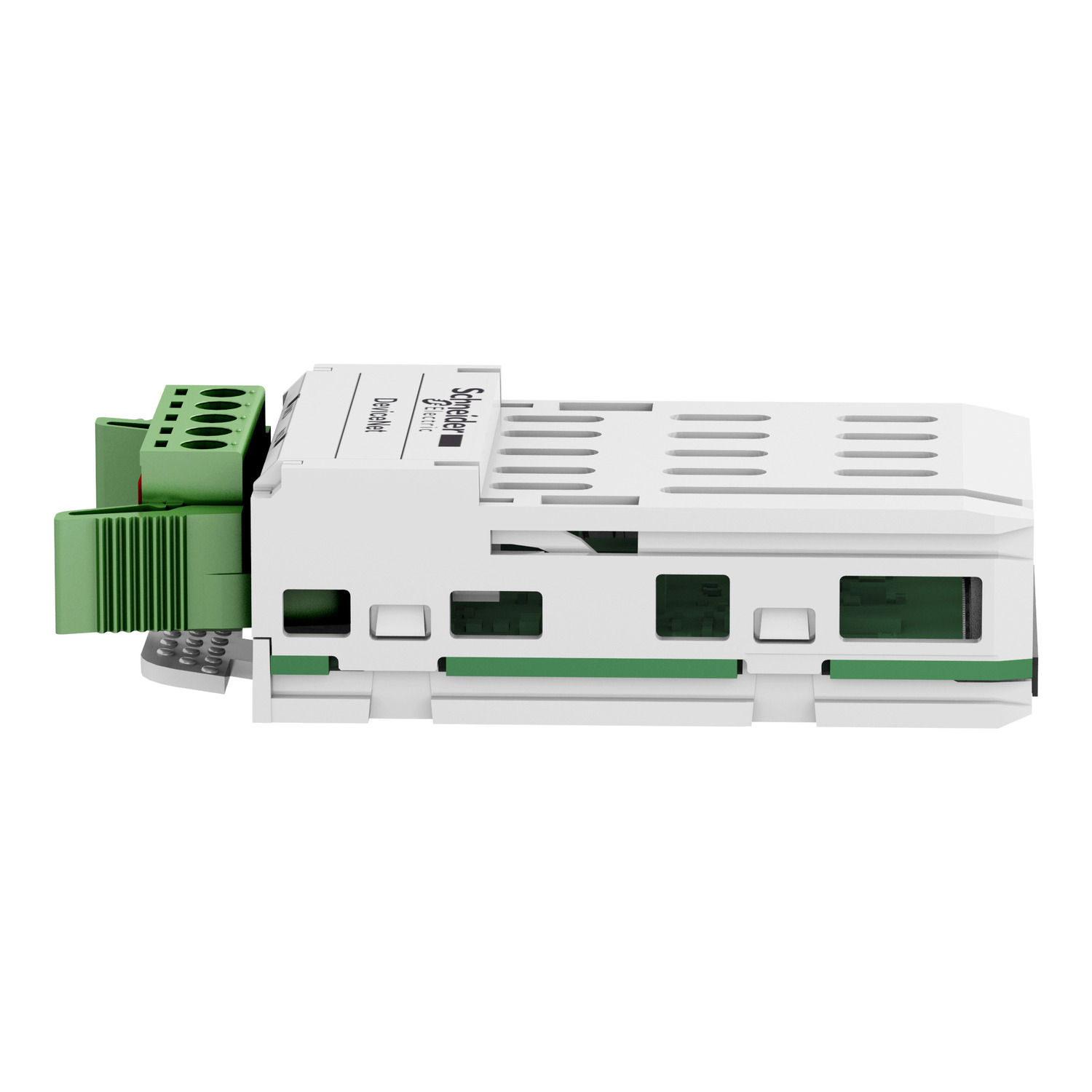

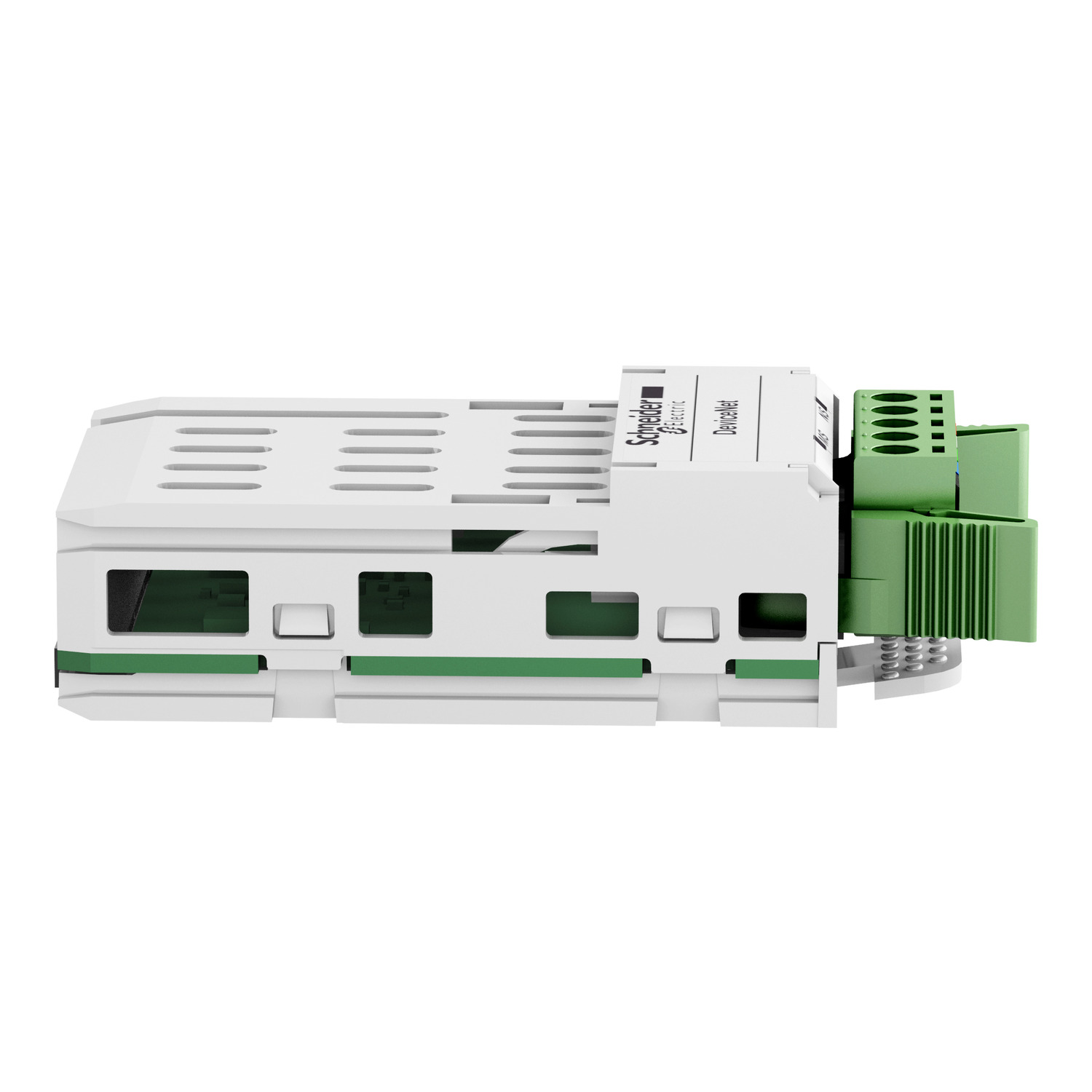

This DeviceNet communication module is an option for variable speed drives of Altivar range. It is equipped with a 5-way removable screw connector. It is compatible with Altivar Machine and Altivar Process drives. It enables integration of your variable speed drive in your process control network. It weighs 300g.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product or component type | communication module |
| Range of product | Altivar |
| Complementary | |
| Transmission rate | 125 kbps, 250 kbps and 500 kbps configurable |
| Range compatibility | Altivar Machine ATV320, Altivar Process ATV900, Altivar Machine ATV340 except Sercos drives, Altivar Process ATV600, Altivar 32, Altivar Process Modular |
| Display type | 1 LED for NS (Network Status), 1 LED for MS (Module Status) |
| Communication port protocol | DeviceNet |
| Communication service | communication monitoring time out adjustable by DeviceNet configurator, auto device replacement, ODVA AC drive and CiA 402 profile, outputs : polled, inputs : polled, change of state, cyclic |
| Net weight | 0.3 kg |
| Electrical connection | 1 connector 1 removable 5-way screw connector |
| Alarm function | received instruction by graphic terminal, control mode received by graphic terminal |
| Bus profile | CiA 402, CIP AC Drive |
| Maximum cable distance between devices | 500 m for 125 kbps, 100 m for 500 kbps |
| Addressing | 1...63 configurable by graphic terminal/SoMove software |
