Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete output type | (LO51...LO56) logic output, compatible with level 1 PLC |
| Analogue input type | AI51, AI52 current analog input: 0...20 mA, impedance: 250 Ohm, resolution: 10 bits |
| Supply circuit type | DC |
| Range compatibility | Altivar 61, Altivar 61Q |
| Discrete input number | 10 |
| Discrete input type | (LI51...LI60) logic inputs, 24 V DC, compatible with level 1 PLC (voltage limits: <= 30 V), impedance: 4.4 kOhm |
| Discrete output logic | (LO51...LO56) positive |
| Analogue output number | 2 |
| Discrete output number | 6 |
| Analogue input number | 2 |
| Battery type | lithium |

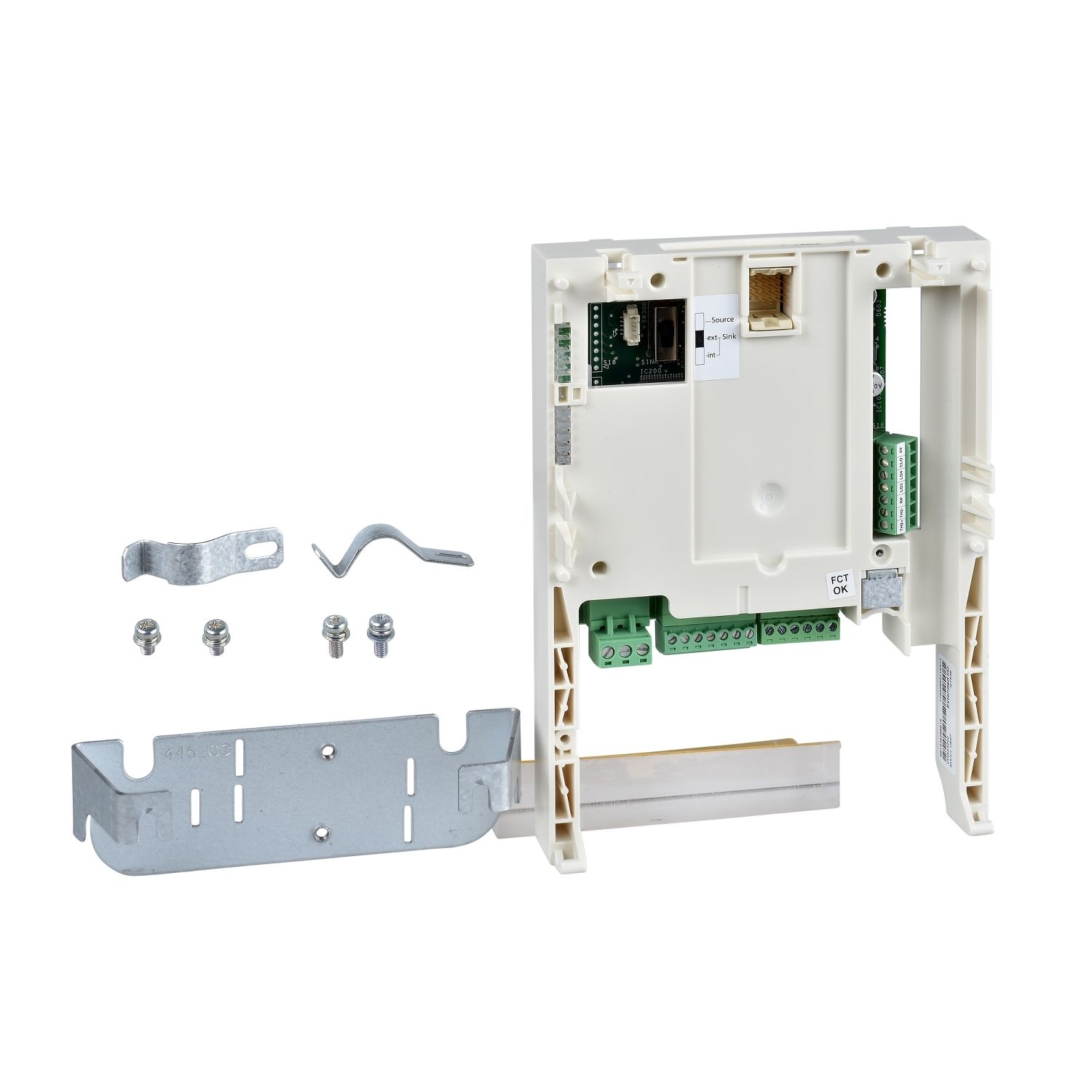

| Product or component type | water solution multi-pump card |
| Analogue output type | AO51, AO52 current analog output: 0...20 mA, impedance: 500 Ohm, resolution: 10 bits |
| Discrete input logic | positive (LI51...LI60), <= 5 V (state 0), >= 11 V (state 1) |
| [Us] rated supply voltage | 24 V |
| Complementary | |
| Electrical connection | terminal, 1.5 mm² / AWG 16, 0.25 N.m |
| Battery life | 8 year(s) |
| Supply voltage limits | 19-30 V |
| Maximum output current | 0.2 A, logic output |
| Connector type | 9-way male SUB-D connector |
| Net weight | 0.32 kg |
| Discrete output voltage | 24 V DC, maximum switching voltage: 30 V logic output |
| Current consumption | 80 mA no load, 200 mA maximum per logic output, 2 A maximum |
