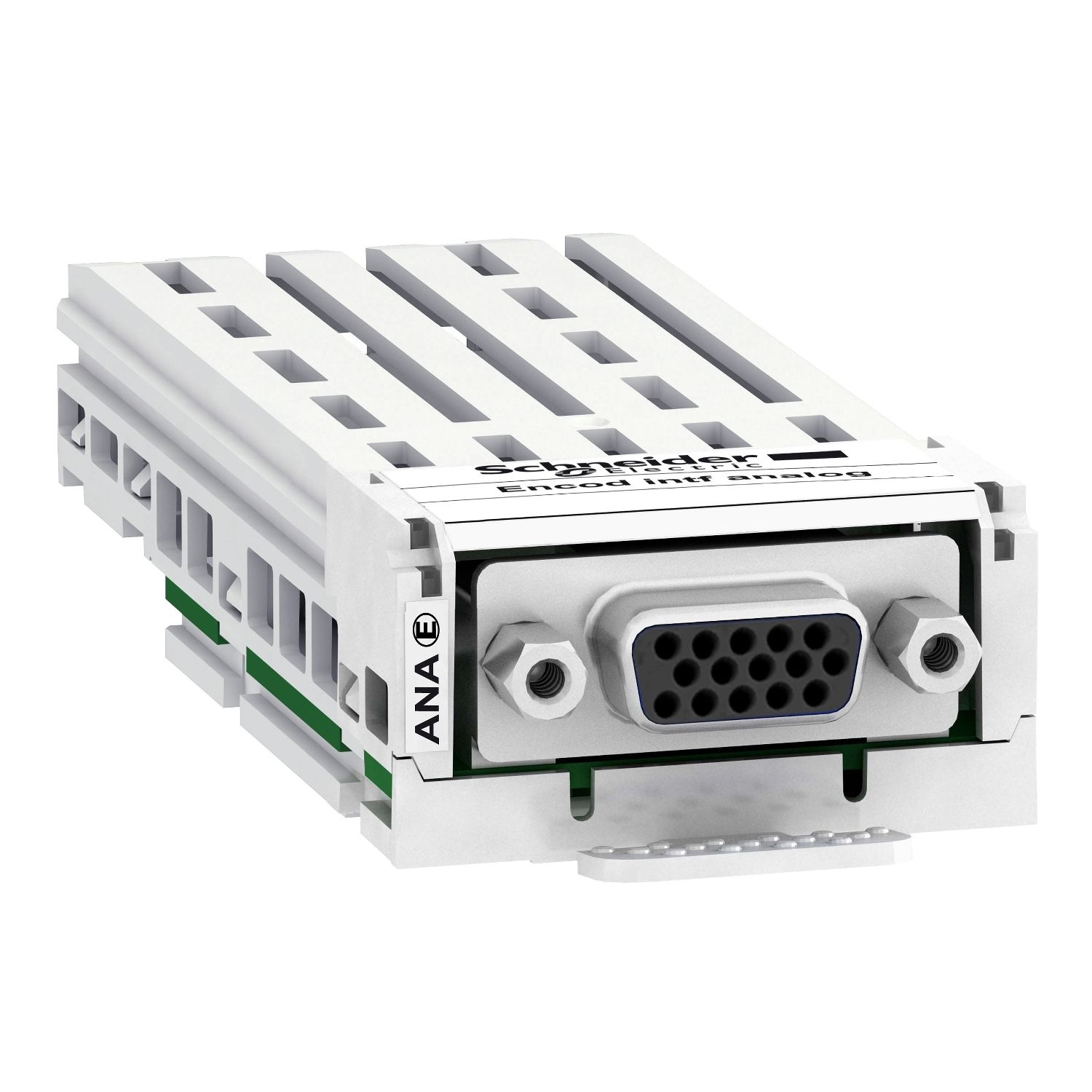

This analog encoder interface module can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. This module is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar Process ATV900 and Modular, and Altivar Machine ATV340. It has 1 female high density SUB-D 15 connector.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | 24 V DC (voltage limits: 22.8-25.2 V), 12 V DC (voltage limits: 11.4-12.6 V), 5 V DC (voltage limits: 4.75-5.25 V) |
| Encoder type | 1 Vpp, SinCos Hiperface |
| Range of product | Altivar |
| Range compatibility | Altivar Process Modular, Altivar Process ATV900, Altivar Machine ATV340 |
| Product or component type | analog encoder interface module |
| Complementary | |
| Output signal | Data+, Data- |
| Protection type | short-circuit protection, overload protection |
| Maximum cable distance between devices | 100 m |
| Maximum operating frequency | 100 kHz |
| Input signal | Data+, Data-, Sin, RefSin, Cos, RefCos, Temp+, Temp- |
| Maximum supply current | 0.05 A at 24 V DC, 0.1 A at 12 V DC, 0.25 A at 5 V DC |
| Net weight | 0.15 kg |
| Connector type | 1 female high density SUB-D 15 |
