Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | 12 V DC (voltage limits: 12-13 V) |
| Number of pulses per revolution | 5000 for ATV71H...N4, 5000 for ATV71H...M3X, 5000 for ATV71H...M3, 5000 for all ATV61 drives, 10000 for ATV71H......383 |
| Range of product | Altivar |
| Discrete output type | push-pull |
| Range compatibility | Altivar 61, Altivar 71Q, Altivar 71, Altivar Lift, Altivar 61Q |

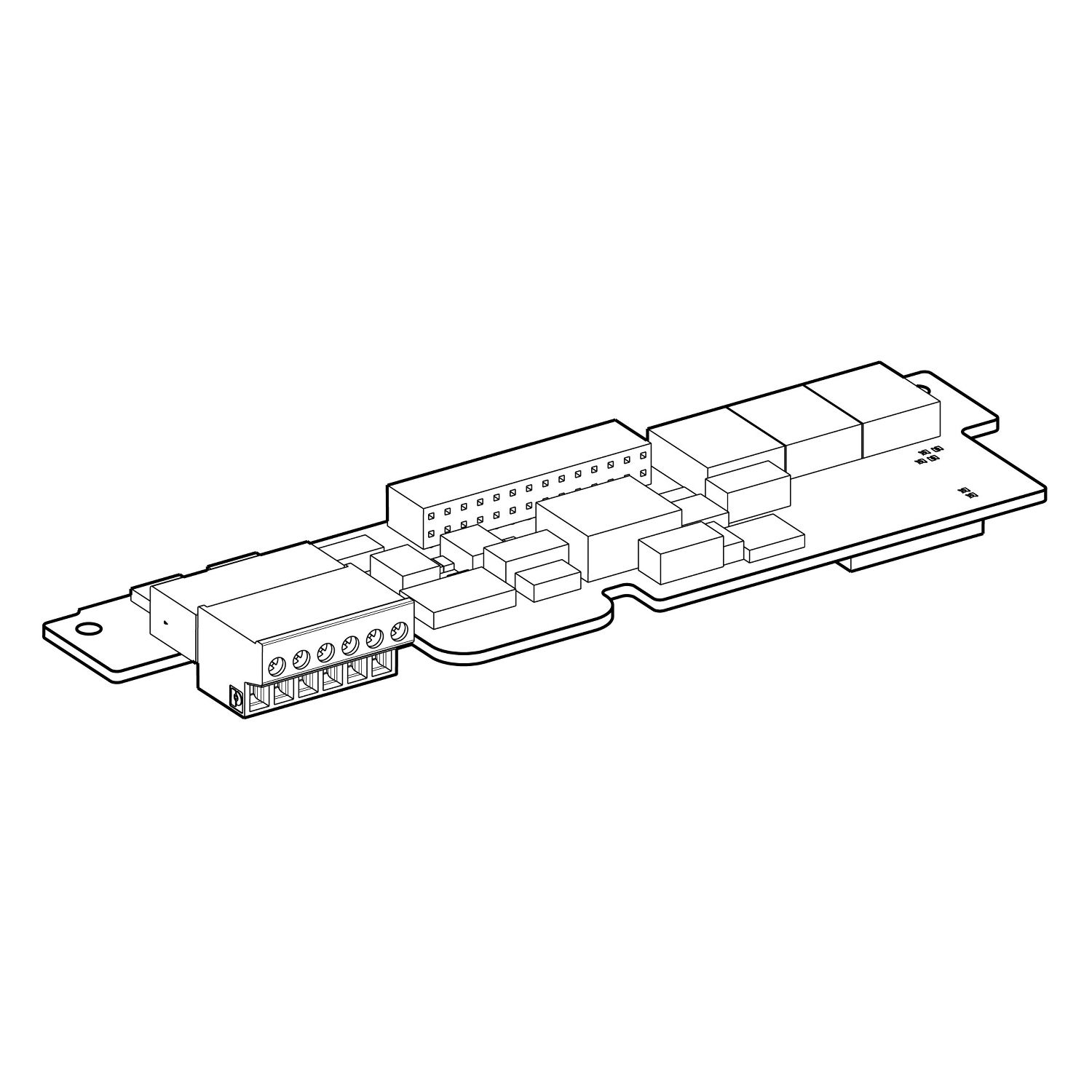

| Product or component type | encoder interface card |
| Complementary | |
| Voltage state 1 guaranteed | > 7.7...< 13 V |
| Protection type | overload protection, short-circuit protection |
| Electrical connection | terminal, connection capacity: 1.5 mm² (AWG 15) <500 m cable length, encoder, 175 mA at 10 V, terminal, connection capacity: 1 mm² (AWG 17) <500 m cable length, encoder, 100 mA at 10 V, terminal, connection capacity: 0.75 mm² (AWG 18) <200 m cable length, encoder, 175 mA at 10 V, terminal, connection capacity: 0.5 mm² (AWG 20) <200 m cable length, encoder, 100 mA at 10 V, terminal, connection capacity: 0.5 mm² (AWG 20) <100 m cable length, encoder, 175 mA at 10 V, terminal, connection capacity: 0.2 mm² (AWG 24) <100 m cable length, encoder, 100 mA at 10 V |
| Maximum cable distance between devices | 500 m |
| Maximum operating frequency | 300 kHz |
| Input signal | compliment of B/AB/A, compliment of A, B, A |
| Input impedance | 1 kOhm |
| Maximum supply current | 0.175 A |
| Voltage state 0 guaranteed | <= 1.5 V |
| Net weight | 0.2 kg |
