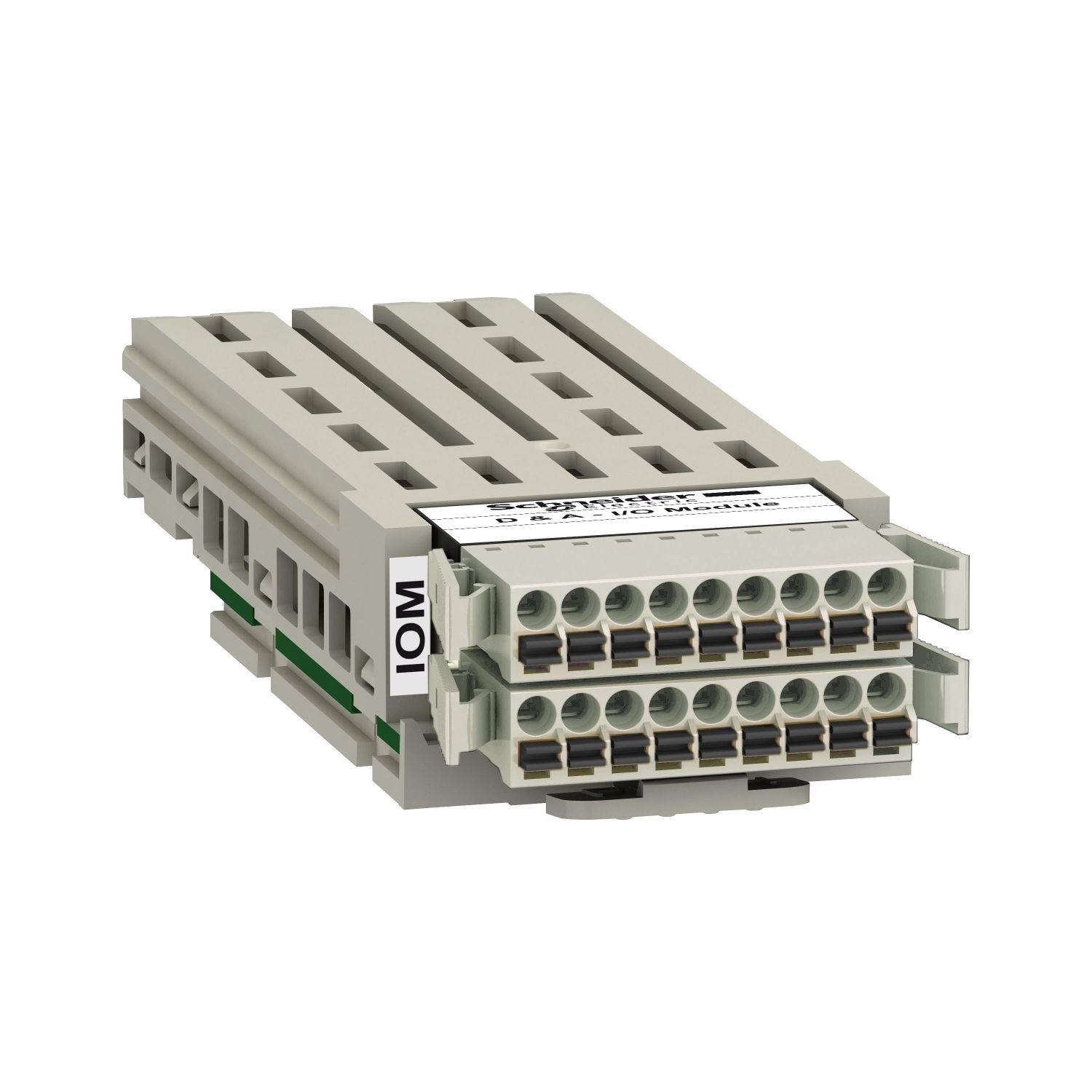

This I/O expansion module enables your drive to meet the needs of application that manage additional or specific sensors. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600, Altivar Process ATV900 and Altivar Machine ATV340. It is also compatible with Altivar Easy 610. It has one removable spring terminal block 1.5 mm² / AWG 16.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete input type | (DI11...DI16) programmable, impedance: 250 Ohm, sampling time: 1-1 ms |
| Input/output type | 2 discrete output, 6 discrete input, 2 analog input configurable voltage, current or probe |
| Analogue input type | AI4, AI5 configurable PTC, Pt 100, Pt 1000, sampling time: 0-1 ms, resolution: 14 bits, AI4, AI5 configurable voltage: - 10...10 V DC, 24 V max, impedance: 20 kOhm, sampling time: 0-1 ms, resolution: 14 bits, AI4, AI5 configurable current: 0...20 mA/4...20 mA, sampling time: 0-1 ms, resolution: 14 bits |
| Range compatibility | Easy Altivar 610, Altivar Process ATV900, Altivar Machine ATV340, Altivar Process ATV600 |
| Discrete input number | 6 |
| Discrete output logic | (DQ11, DQ12) positive, (DQ11, DQ12) negative |
| Discrete output number | 2 |
| Analogue input number | 2 |
| Product or component type | additional I/O module |
| Discrete input current | 2.5 mA |
| Discrete output type | (DQ11, DQ12) assignable logic, sampling time: 1-1 ms |
| Discrete input logic | positive (DI11...DI16), negative (DI11...DI16) |
| Complementary | |
| Protection type | short-circuit protection: output, reverse polarity protection: digital input |
| Electrical connection | removable spring terminal block, 1.5 mm² / AWG 16 |
| Maximum output current | 100 mA, assignable logic |
| Discrete output voltage | 24 V DC (voltage limits: <= 30 V) assignable logic |
| Discrete input voltage | 24 V DC (voltage limits: <= 30 V) for programmable |
| Net weight | 0.5 kg |
