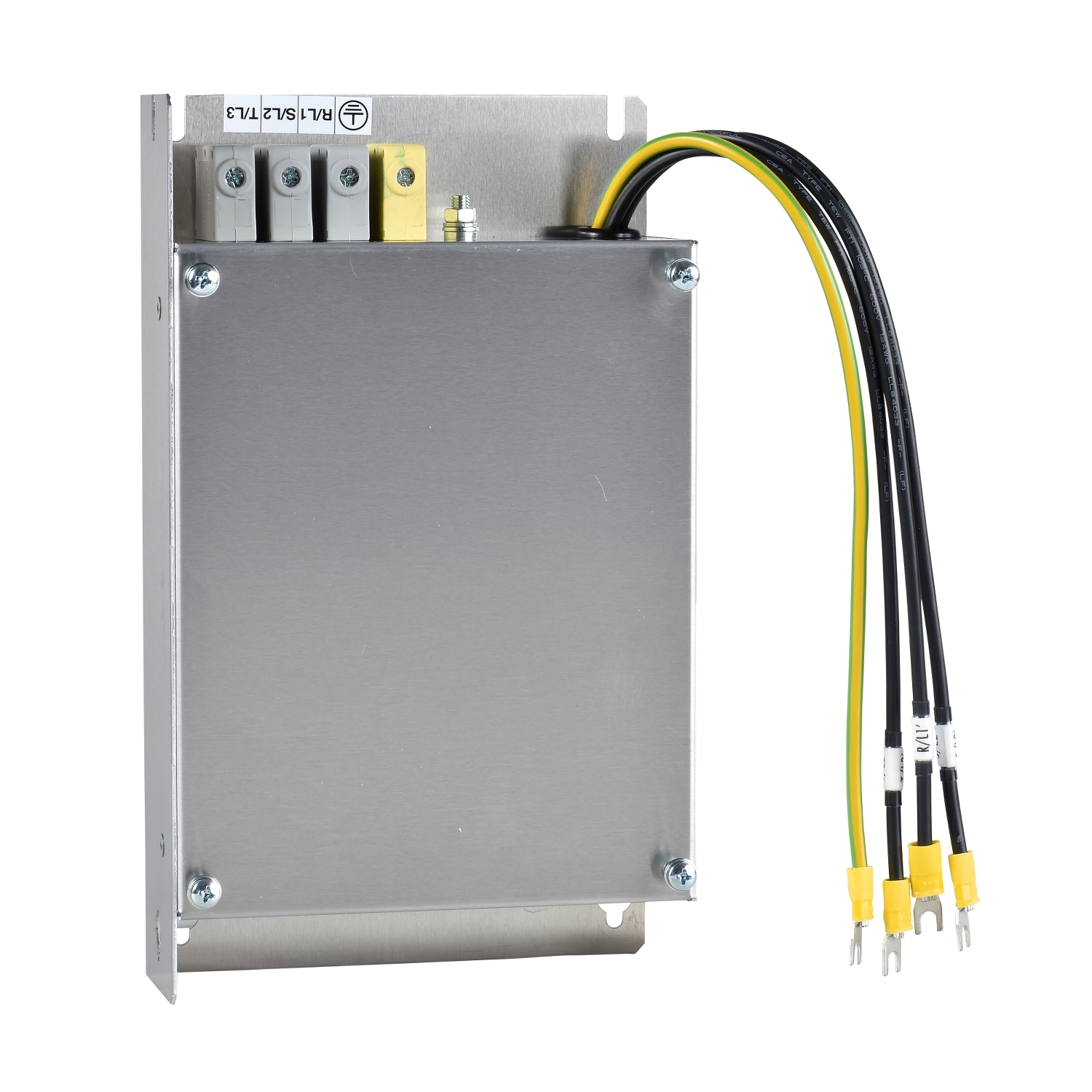

This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 25A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2 or C3. Its protection index is IP20. It weighs 1.650kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems. It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Thermal losses | 6.2 W for ATV21HU40M3X, 3.6 W for ATV21HU30M3X, 15.8 W for ATV31CU22N4, 1.6 W for ATV21HU40N4, 3 W for ATV21HU55N4, 1 W for ATV21HU30N4 |
| Range compatibility | Altivar 312 Solar, Altivar 312, Lexium 05, Altivar 31C, Altivar 212, Lexium 23 Plus, Altivar Machine ATV320 |
| [In] rated current | 25 A |
| Product specific application | radio interference input filter |
| Network number of phases | three phase |
| Product or component type | EMC input filter |
| Product compatibility | variable speed drive ATV320...W/ATV320...WS motor: 4 kW, 380...500 V three phase, variable speed drive ATV320...W/ATV320...WS motor: 3 kW, 380...500 V three phase, variable speed drive ATV320...W/ATV320...WS motor: 2.2 kW, 380...500 V three phase, variable speed drive ATV320...C motor: 4 kW, 200...240 V three phase, variable speed drive ATV320...C motor: 3 kW, 200...240 V three phase, variable speed drive ATV320...C motor: 4 kW, 380...500 V three phase, variable speed drive ATV320...C motor: 3 kW, 380...500 V three phase, variable speed drive ATV320...C motor: 2.2 kW, 380...500 V three phase, ATV312HU40M3, ATV312HU30M3, ATV312HU40N4, ATV312HU30N4, ATV312HU22N4, LXM05CD34N4, LXM05CD22N4, LXM05BD42M3X, LXM05BD34N4, LXM05BD22N4, LXM05AD42M3X, LXM05AD34N4, LXM05AD22N4, ATV31CU40N4, ATV31CU30N4, ATV31CU22N4, ATV212HU55N4, ATV212HU40N4, ATV212HU40M3X, ATV212HU30N4, ATV212HU30M3X, servo drive LXM23 motor: 5.5 kW, servo drive LXM23 motor: 4.5 kW |
| Range of product | Altivar |
| Complementary | |
| Electrical connection | terminal 10 mm² AWG 6 |
| Compatibility code | LXM23 |
| Tightening torque | 1.8 N.m |
| Network rated voltage | 200-240 V, 380-500 V |
| Earth leakage current | 17.8 mA at 480 V 60 Hz, 37 mA at 480 V 60 Hz, 35 mA 50 Hz |
| Net weight | 1.35 kg, 1.65 kg |
| Tolerance | 10 % |
| Environment | |
| Operating altitude | 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating |
| IP degree of protection | IP41 (upper part), IP20 |
| Relative humidity | 0-93 % conforming to IEC 68-2-3 |
| Ambient air temperature for storage | -25-70 °C |
| Vibration resistance | 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -10-50 °C |
| Standards | IEC 61800-3 |
Only registered users can write reviews
Related products

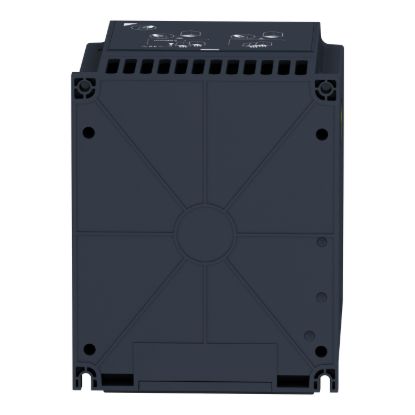

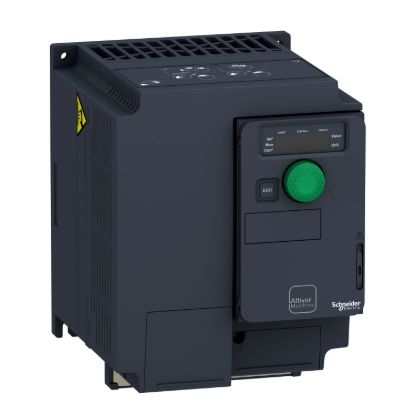

variable speed drive, Altivar Machine ATV320, 3kW, 200 to 240V, 3 phases, compact
