Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

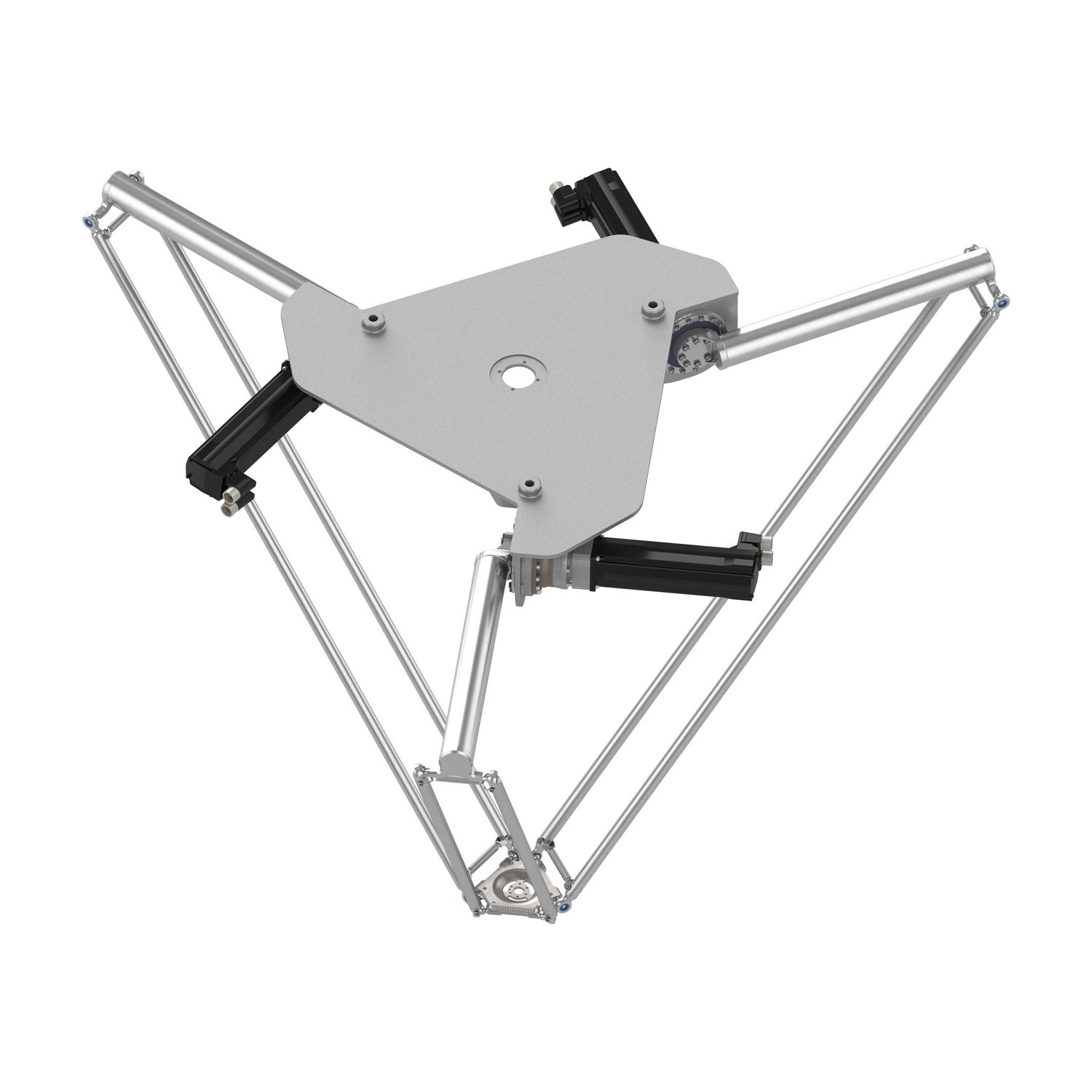

| Product or component type | delta 3 robot |
| Design | compact |
| Range of product | Lexium P, T |
| Device short name | P6 |
| Complementary | |
| Variant | no washdown |
| Net weight | 80 kg |
| Operating travel | 0-1600 mm diameter, 0-657 mm vertical |
| Number of axis | 3-3 |
| Vertical distance | 0-657 mm |
| Permanent permissible load | 0-10 kg 0-400 mm 657 mm, 0-15 kg 0-400 mm 657 mm, 0-10 kg 0-600 mm 657 mm, 0-15 kg 0-600 mm 657 mm, 0-10 kg 0-800 mm 657 mm, 0-15 kg 0-800 mm 657 mm, 0-10 kg 0-1000 mm 657 mm, 0-15 kg 0-1000 mm 657 mm, 0-10 kg 0-1200 mm 657 mm, 0-15 kg 0-1200 mm 657 mm, 0-10 kg 0-1400 mm 657 mm, 0-15 kg 0-1400 mm 657 mm, 0-10 kg 0-1600 mm 657 mm, 0-15 kg 0-1600 mm 657 mm, 10 kg, 0-15 kg |
| Device composition | with motor |
| Repeat accuracy | 0.1 mm |
| Number of arms | 3 |
| Maximum actuation speed | 10 m/s |
| Range compatibility | Lexium SH3 motor |
| Product compatibility | SH3 motors |
| Maximum acceleration | 80 m/s² at 1 kg, 60 m/s² at 1.5 kg |
| Environment | |
| Environmental characteristic | normal environment |
| Contractual warranty | |
| Warranty | 18 |
Only registered users can write reviews
Related products

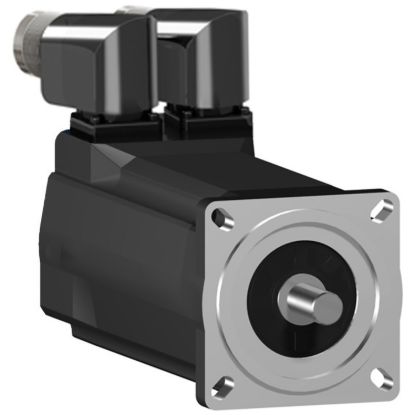

servo motor SH3 070, 2,94Nm, no key,multi, brake, 90°conn, IP54, IP65, 8k RPM
