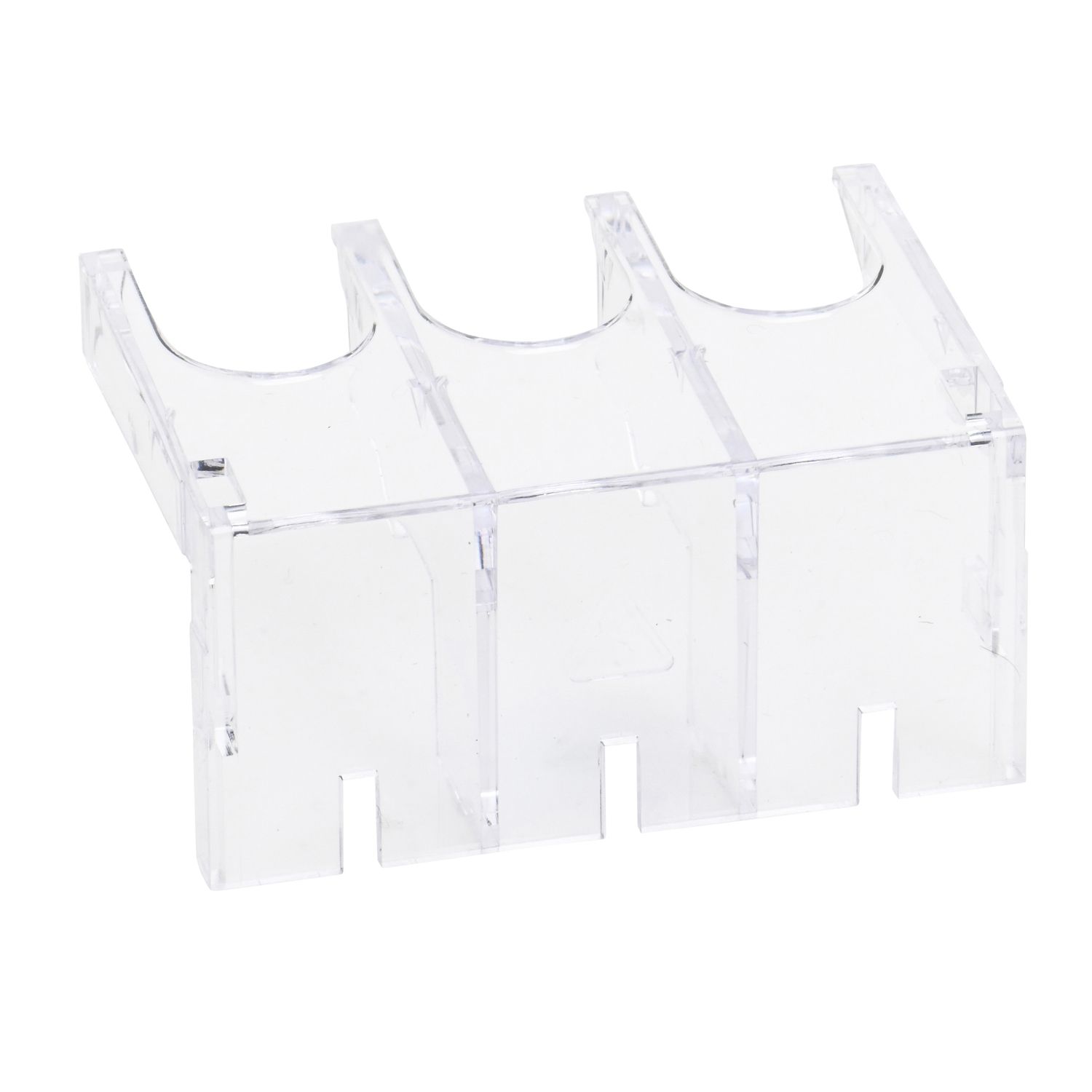

Disconnect switch, Tesys VLS, set of 2 terminal covers, for 3 pole unit terminals, 30A to 125A devices
Manufacturer: Schneider Electric
SKU: VLSC3P2
GTIN: 3606481157133
Old price: $39.05 inc GST
$15.50 inc GST
Supported cards
Supported cards

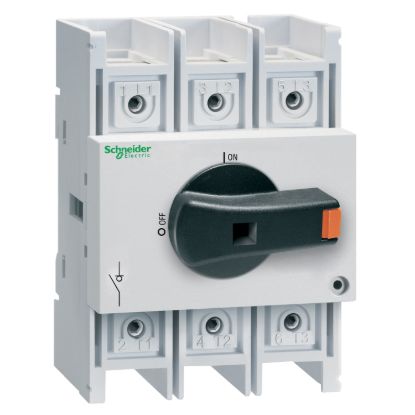

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This protective terminal cover is for the three poles of the main VLS disconnect switch. This protective cover can be added to a VLS3P032R2, VLS3P063R2, VLS3P080R2, VLS3P100R2 or VLS3P125R2 DIN rail mount disconnect switch. This protective cover can be added to a VLS3P032D2, VLS3P063D2, VLS3P080D2, VLS3P100D2 or VLS3P125D2 door mount disconnect switch. Each package has two of these terminal protective covers. This protective terminal cover is 1.46 inches tall, 2.76 inches wide and 1.81 inches deep. The switch weighs 0.07 lbs. This protective cover is cULus Listed and meets IEC 60947-3 requirements.

Products specifications

Attribute name Attribute value
Main
Device short name VLSC
Quantity per set set of 2
Poles description 3P
Range TeSys
Product or component type terminal cover
Accessory / separate part category protection accessory
Range compatibility TeSys TeSys VARIO LS VLS3P
Complementary
Depth 46 mm
Width 70 mm
Net weight 0.03 kg
Fixing mode clipped
Height 37 mm
