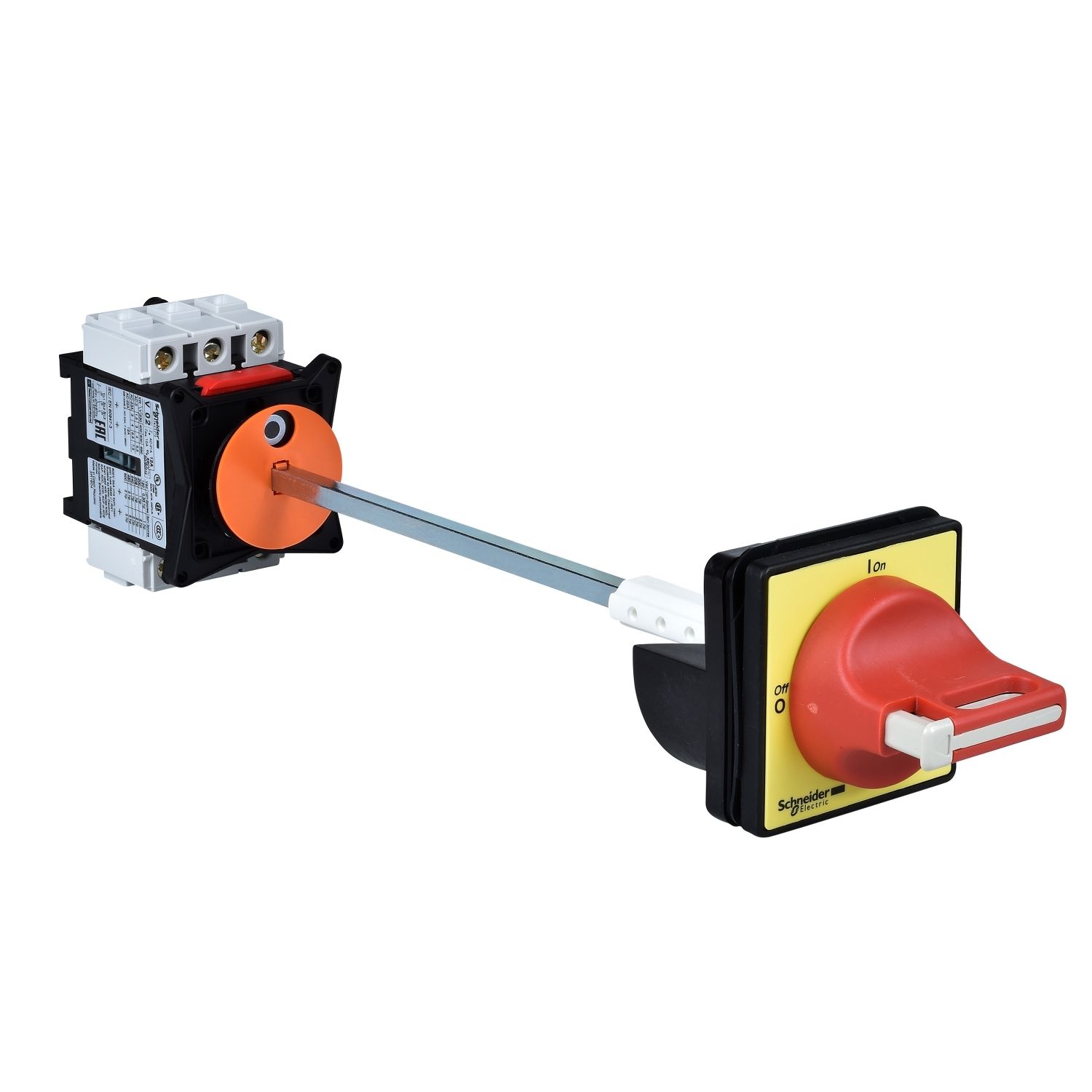

| Product or component type | emergency stop switch disconnector |
| Product name | TeSys VARIO |
| Range | TeSys |
| Device short name | VCCF |
| Complementary | |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Handle colour | red |
| Performance level | high performance |
| Making capacity | 400 A at 400 V AC-21A, 400 A at 400 V AC-22A, 400 A at 400 V AC-23A |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Connections - terminals | power circuit: screw clamp terminals10-10 mm² - solid, power circuit: screw clamp terminals6-6 mm² - flexible - with cable end |
| [Icm] rated short-circuit making capacity | 1 kA at 400 V at Ipeak |
| Poles description | 3P |
| Width | 60 mm |
| Breaking capacity | 320 A at 400 V (AC-21A), 320 A at 400 V (AC-22A), 320 A at 400 V (AC-23A) |
| [Ith] conventional free air thermal current | 40 A |
| Marking | 0 - 1 |
| Control type | rotary handle |
| Mechanical durability | 100000 cycles |
| Tightening torque | power circuit: 2.1-2.1 N.m - on screw clamp terminals |
| [Icw] rated short-time withstand current | 480 A at 400 V duration: 1 s |
| Rotary handle padlocking | 1 to 3 padlocks 4-8 mm |
| Network type | AC, DC |
| Handle front plate colour | yellow |
| [Ithe] conventional enclosed thermal current | 32 A |
| Net weight | 0.527 kg |
| Contacts type and composition | 3 NO |
| Suitability for isolation | yes |
| Mounting support | handle: door, switch: symmetrical rail, switch: plate |
| Device composition | handle, shaft extension, switch |
| Rated operational power in W | 11 kW at 690 V (AC-3), 15 kW at 690 V (AC-23A), 11 kW at 400...415 V (AC-3), 15 kW at 500 V (AC-3), 18.5 kW at 500 V (AC-23A), 5.5 kW at 230...240 V (AC-3), 7.5 kW at 230...240 V (AC-23A), 15 kW at 400...415 V (AC-23A) |
| Rated conditional short-circuit current | 10 kA at 400 V - associated fuse 50 A aM, 10 kA at 400 V - associated fuse 50 A gG |
| Rotary handle mounting style | extended |
| Height | 74 mm |
| Intermittent duty class | 30 |
| Fixing mode | by 4 screws for handle, by clips for switch, by screws for switch |
| Base dimension | 60 x 60 mm |
| Electrical durability | 100000 cycles AC-21, 30000 cycles DC-1...5 |
| [Ie] rated operational current | 29 A AC-23 Ue: 400 V |
| Environment | |
| Standards | IEC 60947-3 |
| Ambient air temperature for operation | -20-50 °C |
| IP degree of protection | IP20 conforming to IEC 60529, IP65 |
| Protective treatment | TC |
| Product certifications | UL, CSA, CCC, GL, UKCA |
| Compatibility code | main switch disconnector |
| Mechanical robustness | vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6, shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
| Contractual warranty | |
| Warranty | 18 |
