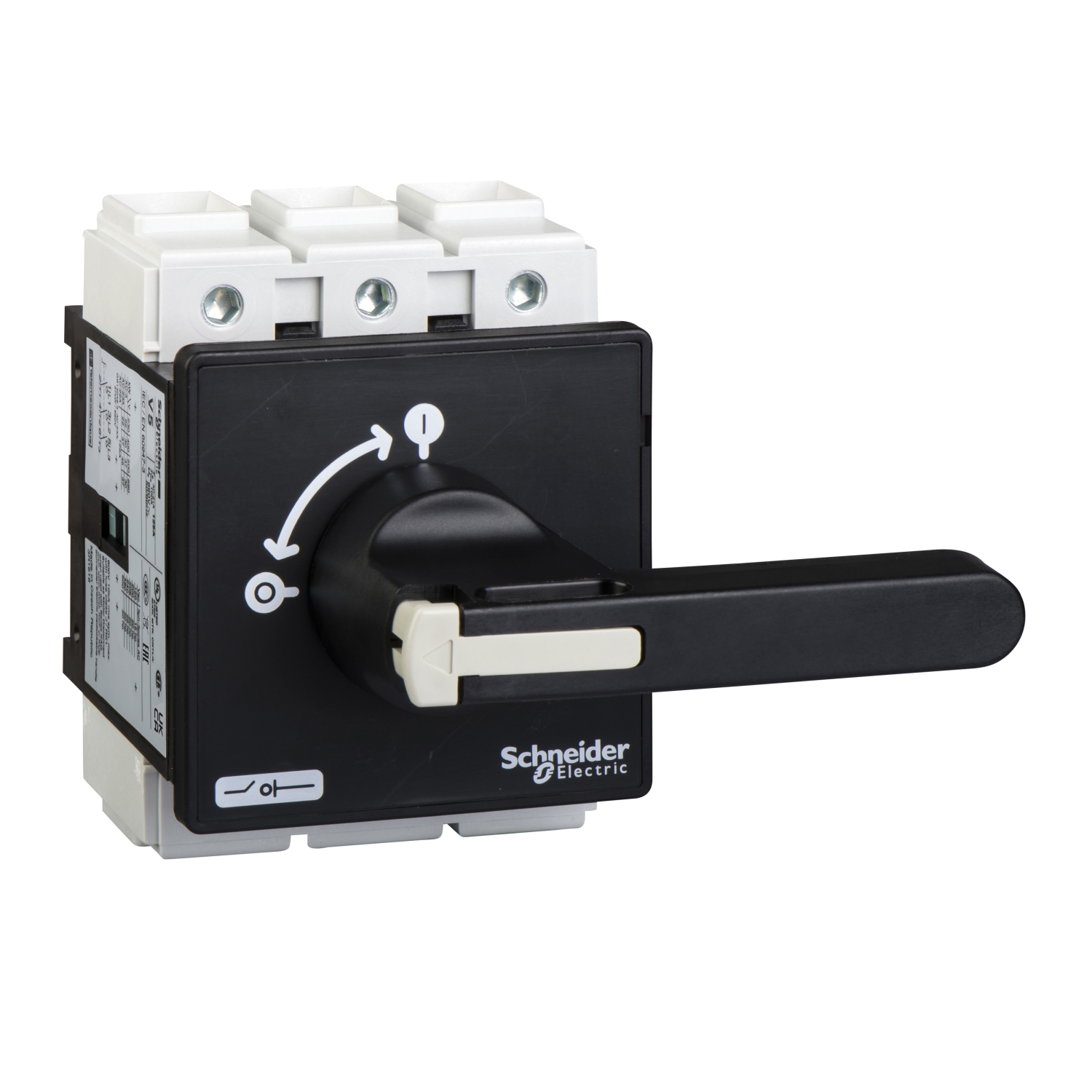

TeSys Vario switch disconnector for door mounting, 3 poles, 175A/690V, for motor switching applications up to 45kW@400V AC-23. Complete unit composed of a switch body V6, a black handle with black 90x90mm front plate KAF3PZ. Intended for main switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with 4 screws fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Environmental compliant (RoHS/REACh). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | VBF |
| Device application | preventive maintenance |
| Range | TeSys |
| Product name | TeSys VARIO |
| Product or component type | emergency stop switch disconnector |
| Complementary | |
| [Icw] rated short-time withstand current | 2100 A at 400 V duration: 1 s |
| Tightening torque | power circuit: 22.6-22.6 N.m - on screw clamp terminals |
| Mechanical durability | 30000 cycles |
| [Ie] rated operational current | 83 A AC-23 Ue: 400 V |
| Electrical durability | 30000 cycles DC-1...5, 30000 cycles AC-21 |
| Control type | rotary handle |
| Base dimension | 90 x 90 mm |
| Marking | 0 - 1 |
| Fixing mode | by 4 screws for handle |
| [Ith] conventional free air thermal current | 175 A |
| Intermittent duty class | 30 |
| Height | 125 mm |
| Rotary handle mounting style | direct |
| Rated conditional short-circuit current | 10 kA at 400 V - associated fuse 200 A gG, 10 kA at 400 V - associated fuse 200 A aM |
| Rated operational power in W | 45 kW at 400...415 V (AC-23A), 30 kW at 230...240 V (AC-23A), 55 kW at 500 V (AC-23A), 45 kW at 690 V (AC-23A), 45 kW at 500 V (AC-3), 37 kW at 690 V (AC-3), 37 kW at 400...415 V (AC-3), 30 kW at 230...240 V (AC-3) |
| Breaking capacity | 1400 A at 400 V (AC-23A), 1400 A at 400 V (AC-22A), 1400 A at 400 V (AC-21A) |
| Device composition | switch, handle |
| Width | 90 mm |
| Poles description | 3P |
| Mounting support | switch: door, handle: door |
| Suitability for isolation | yes |
| [Icm] rated short-circuit making capacity | 2.8 kA at 400 V at Ipeak |
| Contacts type and composition | 3 NO |
| Connections - terminals | power circuit: screw clamp terminals70-70 mm² - flexible - with cable end, power circuit: screw clamp terminals95-95 mm² - solid |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Making capacity | 1750 A at 400 V AC-23A, 1750 A at 400 V AC-22A, 1750 A at 400 V AC-21A |
| Performance level | high performance |
| Net weight | 1.2 kg |
| Handle colour | black |
| [Ithe] conventional enclosed thermal current | 140 A |
| Handle front plate colour | yellow |
| Network type | DC, AC |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Rotary handle padlocking | 1 to 3 padlocks 4-8 mm |
| Environment | |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
| Mechanical robustness | shocks 11 ms (30 Gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 |
| Compatibility code | main switch disconnector |
| Protective treatment | TC |
| IP degree of protection | IP65, IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -20-50 °C |
| Standards | IEC 60947-3 |
| Product certifications | UKCA, UL, CCC, CSA, GL |
