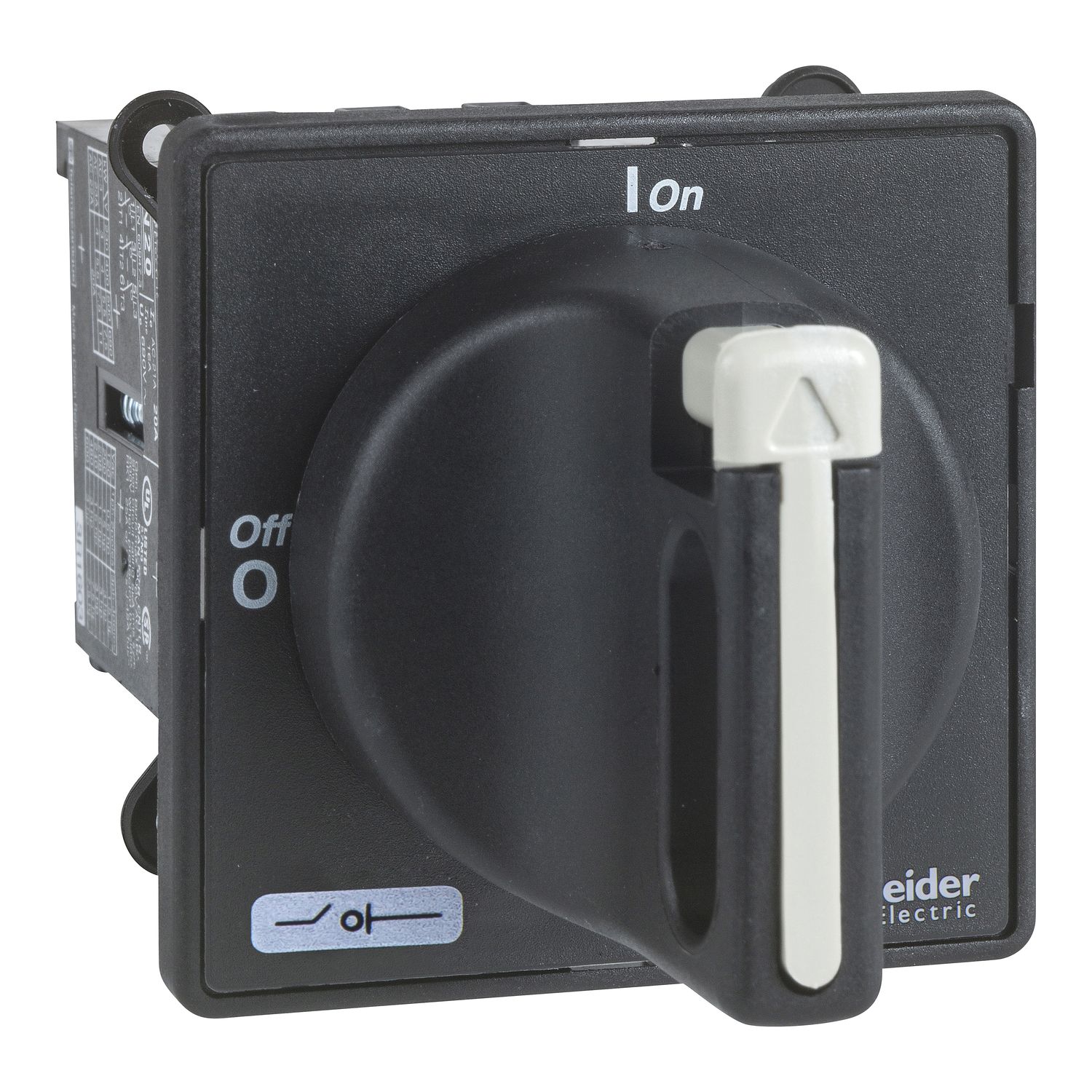

TeSys Vario switch disconnector for door mounting, 3 poles, 12A/690V, for motor switching applications up to 4kW@400V AC-23. Complete unit composed of a switch body VN12, a black handle with black 60x60mm front plate KAD1PZ. Intended for main switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing on door, ensuring IP65 to the mounting. Multi standards certified (IEC, UL, CSA), Environmental compliant (RoHS/REACh). Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | VBDN |
| Control type | rotary handle |
| Range | TeSys |
| Rotary handle mounting style | direct |
| Poles description | 3P |
| Contacts type and composition | 3 NO |
| Performance level | standard |
| Product name | TeSys Mini-VARIO |
| Product or component type | switch disconnector |
| Handle colour | black |
| Handle front plate colour | black |
| Network type | DC, AC |
| Rotary handle padlocking | 1 to 3 padlocks 4-8 mm |
| Complementary | |
| [Icw] rated short-time withstand current | 140 A at 400 V duration: 1 s |
| Tightening torque | power circuit: 0.7-0.7 N.m - on screw clamp terminals |
| Compatibility code | main switch disconnector |
| Mechanical durability | 50000 cycles |
| [Ie] rated operational current | 8.1 A (AC-23) at 400 V |
| Electrical durability | 50000 cycles AC-21, 30000 cycles DC-1...5 |
| Base dimension | 60 x 60 mm |
| Marking | 0 - 1 |
| Fixing mode | hole with 22.5 mm for handle |
| [Ith] conventional free air thermal current | 12 A |
| Intermittent duty class | 30 |
| Height | 60 mm |
| Rated conditional short-circuit current | 6 kA at 400 V - associated fuse 12 A gG, 6 kA at 400 V - associated fuse 12 A aM |
| Rated operational power in W | 4 kW at 690 V (AC-3), 4 kW at 500 V (AC-3), 3 kW at 400...415 V (AC-3), 1.5 kW at 230...240 V (AC-3), 7.5 kW at 690 V (AC-23A), 5.5 kW at 500 V (AC-23A), 4 kW at 400...415 V (AC-23A), 3 kW at 230...240 V (AC-23A) |
| Breaking capacity | 120 kA at 400 V (AC-23A), 120 kA at 400 V (AC-22A), 120 kA at 400 V (AC-21A) |
| Device composition | handle, switch |
| Width | 60 mm |
| Mounting support | switch: door, handle: door |
| Suitability for isolation | yes |
| [Icm] rated short-circuit making capacity | 0.5 kA at 400 V at Ipeak |
| Connections - terminals | power circuit: screw clamp terminals4-4 mm² - solid, power circuit: screw clamp terminals4-4 mm² - flexible - with cable end |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Making capacity | 120 A at 400 V AC-23A, 120 A at 400 V AC-22A, 120 A at 400 V AC-21A |
| Net weight | 0.177 kg |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Environment | |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
| Mechanical robustness | shocks 11 ms (15 gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (5 gn) conforming to IEC 60068-2-6 |
| Protective treatment | TC |
| IP degree of protection | IP65 |
| Ambient air temperature for operation | -20-50 °C |
| Standards | IEC 60947-3 |
| Product certifications | UKCA, CSA, CCC, GL, UL |
