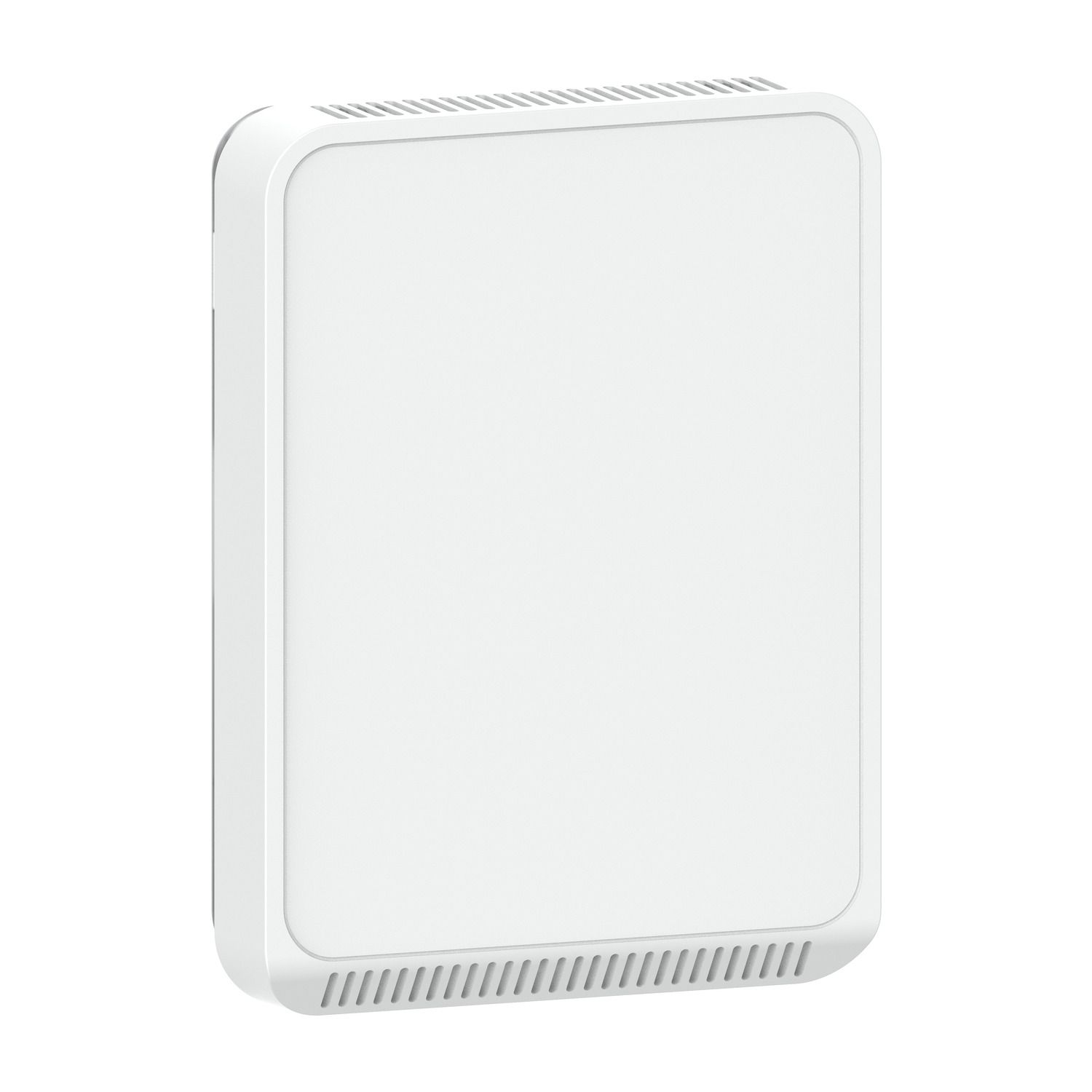

Veris TW2 Series Temperature Sensor, Wall, 1.8K Thermistor

Manufacturer: Veris Industries

SKU: TW2XAXN

GTIN: 3606481902580

PDF

Instruction sheet

Declaration of conformity

Catalog

Full Description

The Veris TW2 Series of temperature sensors for rooms is a versatile sensor platform for use with BAS controllers. It is designed to accept 4 to 20 mA, 0 to 5 V DC, 0 to 10 V DC or resistive thermistor outputs. The wall mounted sensor housing is medium matte white. No user interface, the device is protected by a blank cover. This air quality sensor include a 1.8K Thermistor element. The dimensions of the device are 115 mm in height, 85 mm in width and 24 mm in depth.

Availability: Out of stock

Old price: $154.88 inc GST

Price: $204.83 inc GST

Qty:

Supported cards

Specifications
Reviews

Products specifications

Attribute name	Attribute value
Main
Network frequency	50 Hz, 60 Hz
Mounting support	wall-mount
Type of measurement	temperature
Product or component type	sensor
Product name	SpaceLogic Room Unit
Sensor type	1.8 kOhm thermistor
Width	115 mm
Output type	analog
Depth	24 mm
Height	85 mm
Standards	UL 916, FCC part 15 class B
Surface finish	matt
Ambient air temperature for operation	0-50 °C
Location	living space
Range	SpaceLogic
Function available	with temperature sensor
Relative humidity	0-95 %
Colour	white
Device application	HVAC, temperature control, fan speed controller
Complementary
Communication network type	wired
Range compatibility	EcoStruxure Building Operation SmartX Room Purpose Controller programmable controllers
Connections - terminals	screw terminal - 2 cable(s) (AWG 24...AWG 18)
Material	ABS (acrylonitrile butadiene-styrene)
Communication port protocol	-
Display type	without display
Device presentation	complete product
[Us] rated supply voltage	24 V AC 50...60 Hz, 20...30 V DC
Measurement accuracy	typical +/- 0.2 %
Environment
Temperature setting range	10-35 °C, 0-50 °C
Measurement range	0...50 °C temperature
Product certifications	CE conforming to EN 61000-6-2, CE conforming to EN 61000-6-3, CE conforming to EN 61326-1, RCM, EAC, ICES-003, cULus
Contractual warranty
Warranty	18
