Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete output number | 16 |
| Discrete output voltage | 48 V DC positive conforming to EN/IEC 61131-2 38...60 V |
| Discrete output current | 0.25 A |

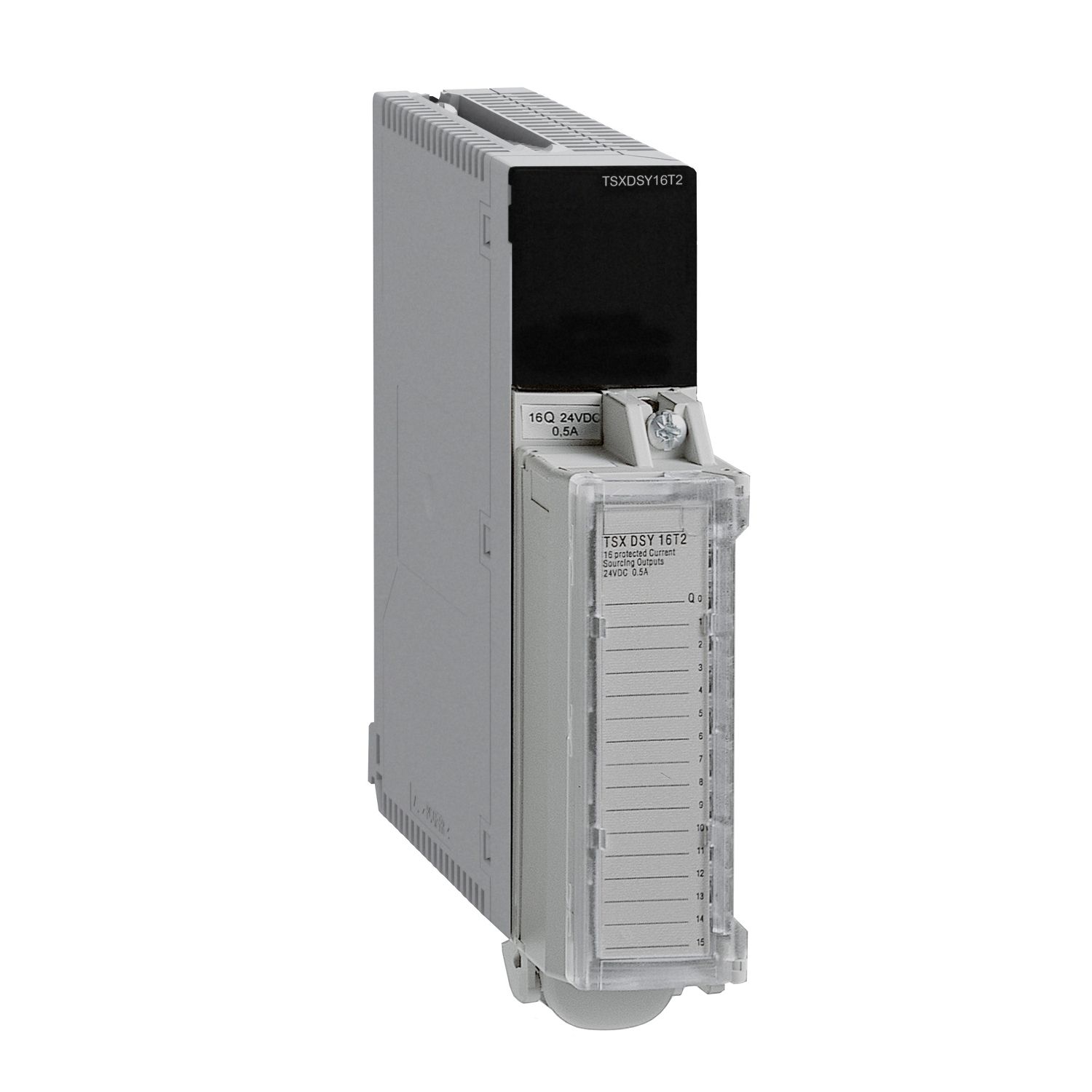

| Product or component type | discrete output module |
| Range of product | Modicon Premium Automation platform |
| Discrete output type | solid state protected |
| Complementary | |
| Reverse polarity protection | reverse mounted diode |
| Module format | standard |
| Minimum load impedance | 192 W |
| Preactuator voltage detection threshold | 34 V |
| Short-circuit protection | electronic tripping on reactivation |
| [Ures] residual voltage | 1.5 V |
| Maximum leakage current | 0.5 mA at state 0 |
| Net weight | 0.34 kg |
| Response time | 1.2 ms |
| Output overvoltage protection | by transil diode |
| Marking | CE |
| Output overload protection | electronic tripping on reactivation |
| Current consumption | 80 mA at 5 V DC |
| Insulation resistance | > 10 MOhm 500 V |
| Electrical connection | screw terminal block |
| Current per channel | 0.31 A |
| Switching frequency | 0.5/LI² Hz |
| Maximum current per module | 4 A |
| Power dissipation | (2.4 W + 0.85 W x No of outputs x current per module) |
| Environment | |
| Operating altitude | 0...2000 m |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Relative humidity | 5-95 % without condensation for storage, 10-95 % without condensation for operation |
| Ambient air temperature for storage | -25-70 °C |
| Dielectric strength | 1500 V 50/60 Hz 60 s |
| Pollution degree | 2 |
| Standards | 89/336/EEC, 93/68/EEC, CSA C22.2 No 213 Class I Division 2 Group C, CSA C22.2 No 213 Class I Division 2 Group A, CSA C22.2 No 213 Class I Division 2 Group B, IEC 61131-2, 92/31/EEC, 73/23/EEC, CSA C22.2 No 213 Class I Division 2 Group D, CSA C22.2 No 142, UL 508 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | GL, BV, RINA, DNV, RMRS, LR, ABS |
