Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete output number | 8 |
| Discrete output voltage | 48 V DC positive conforming to EN/IEC 61131-2 38...60 V |
| Discrete output current | 1 A |

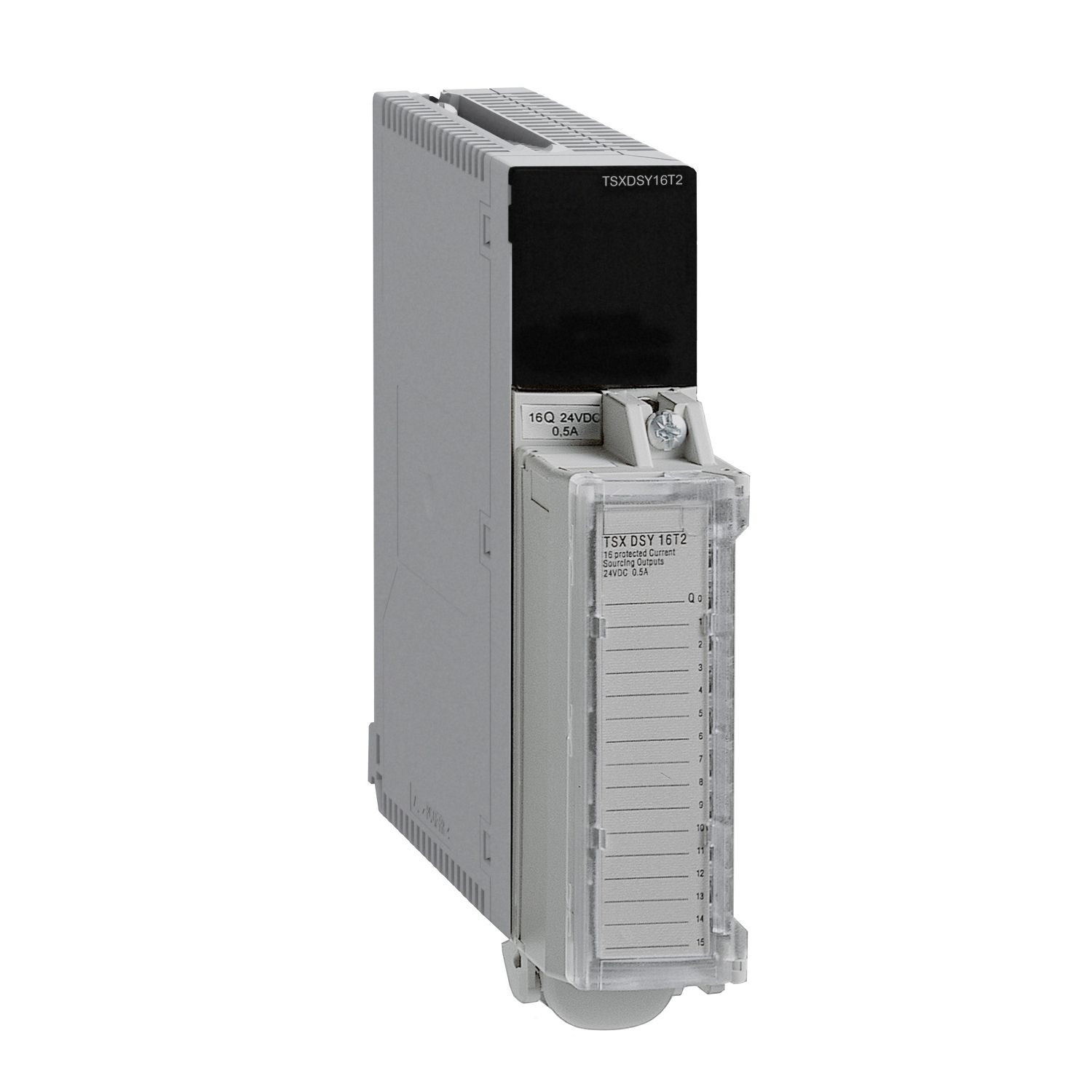

| Product or component type | discrete output module |
| Range of product | Modicon Premium Automation platform |
| Discrete output type | solid state protected |
| Complementary | |
| Reverse polarity protection | reverse mounted diode |
| Module format | standard |
| Minimum load impedance | 48 W |
| Preactuator voltage detection threshold | 34 V |
| Short-circuit protection | electronic tripping on reactivation |
| [Ures] residual voltage | 1 V |
| Maximum leakage current | 1 mA at state 0 |
| Net weight | 0.32 kg |
| Response time | 0.2 ms |
| Output overvoltage protection | by transil diode |
| Marking | CE |
| Output overload protection | electronic tripping on reactivation |
| Current consumption | 55 mA at 5 V DC |
| Insulation resistance | > 10 MOhm 500 V |
| Electrical connection | screw terminal block |
| Current per channel | 1.25 A |
| Switching frequency | 0.5/LI² Hz |
| Maximum current per module | 7 A |
| Power dissipation | (2.2 W + 0.55 W x No of outputs x current per module) |
| Environment | |
| Operating altitude | 0...2000 m |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Relative humidity | 5-95 % without condensation for storage, 10-95 % without condensation for operation |
| Ambient air temperature for storage | -25-70 °C |
| Dielectric strength | 1500 V 50/60 Hz 60 s |
| Pollution degree | 2 |
| Standards | UL 508, 73/23/EEC, 92/31/EEC, CSA C22.2 No 213 Class I Division 2 Group B, 89/336/EEC, 93/68/EEC, CSA C22.2 No 142, CSA C22.2 No 213 Class I Division 2 Group A, IEC 61131-2, CSA C22.2 No 213 Class I Division 2 Group D, CSA C22.2 No 213 Class I Division 2 Group C |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | DNV, ABS, RINA, BV, LR, RMRS, GL |
