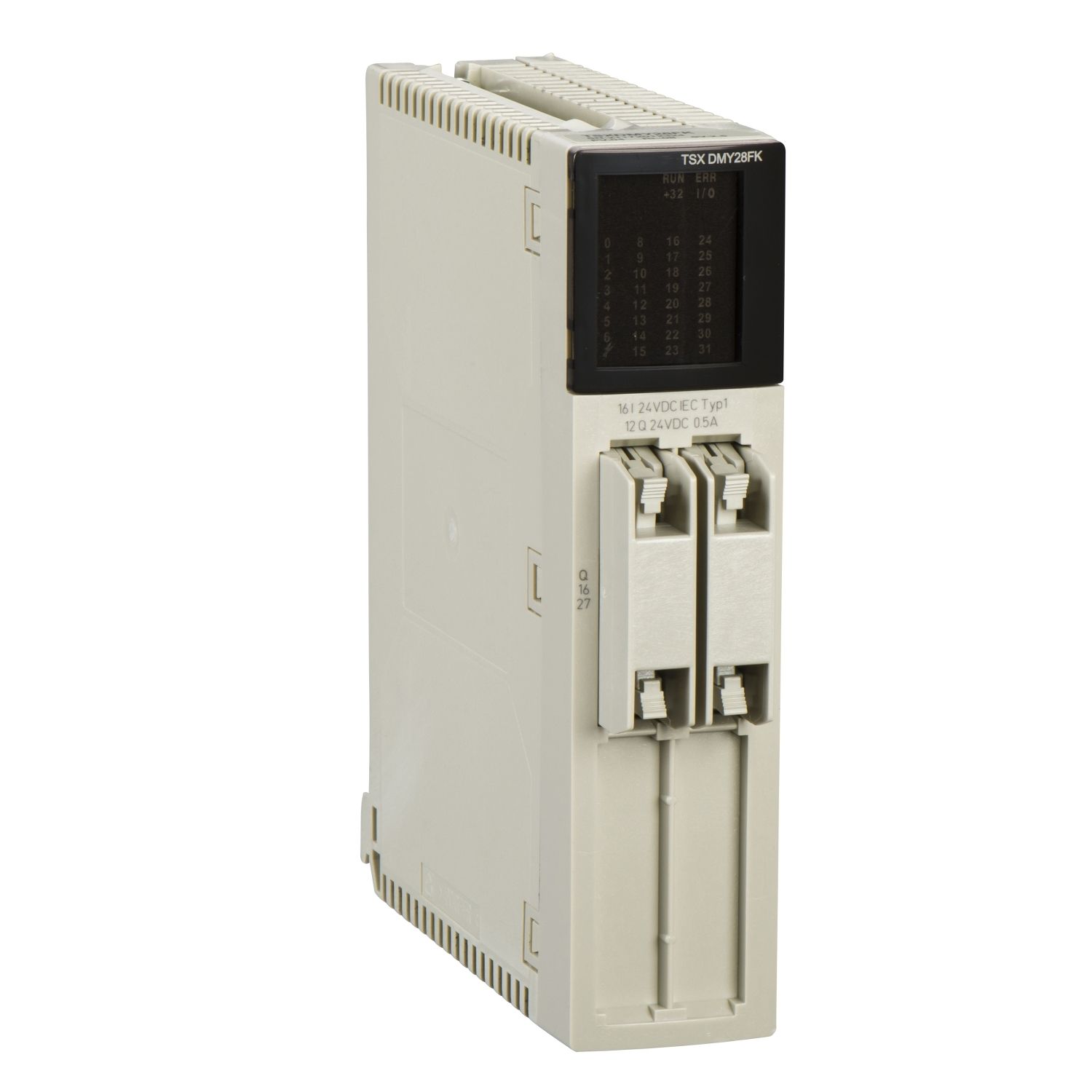

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete input number | 16 current sink fast input conforming to IEC 1131-2 Type 1 |
| Input voltage | 24 V 3.5 mA DC |
| Discrete I/O number | 28 |
| Input logic | positive |
| Product or component type | discrete I/O modules |
| Range of product | Modicon Premium Automation platform |
| Complementary | |
| Voltage state 1 guaranteed | >= 11 V |
| Reverse polarity protection | reversed diode |
| Maximum leakage current | 1 mA at state 0 |
| [Ures] residual voltage | 1.2 V at state 1 |
| Maximum tungsten load | <6 W for solid state output |
| Input compatibility | 2-wire/3-wire proximity sensor |
| Module format | standard |
| Maximum output current | 0.5 A by channel, 4 A by module |
| Output voltage limits | 19...30 V |
| Preactuator voltage detection threshold | 16 V |
| Discrete output number | 12 |
| Current state 1 guaranteed | >= 3 mA |
| Paralleling of inputs | yes |
| Minimum load impedance | 48 W |
| Insulation resistance | > 10 MOhm 500 V DC<LineBreak/> |
| Voltage state 0 guaranteed | <= 5 V |
| Current state 0 guaranteed | <= 1.5 mA |
| Output overvoltage protection | by transil diode |
| Current consumption | 75 mA at 24 V DC, 300 mA at 5 V DC |
| Filter time | 0.1 to 7.5 ms by configuration, 4 ms by default |
| Electrical connection | 2 connectors HE-10 |
| Response time on output | 0.6 ms |
| Output voltage | 24 V 0.5 A |
| Switching frequency | 0.5/LI² Hz |
| Discrete output type | reflex or time delayed |
| Power dissipation | 1.2 W + 0.1 x number of input at 1 |
| Sensor power supply | 19-30 V |
| Environment | |
| Dielectric strength | 1500 V 50/60 Hz for 1 minute |
| Operating altitude | <= 2000 m |
| Relative humidity | 5-95 % without condensation |
| Ambient air temperature for storage | -25-70 °C |
| Derating factor | 60 % of the maximum current of the module at 60 °C solid state output, 60 % of inputs at state 1 at 60 °C fast input |
| Ambient air temperature for operation | 0-60 °C |
