Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Analogue output number | 8 |
| Analog/digital conversion | 13 bits 4...20 mA, 13 bits 0...20 mA, 13 bits + sign +/- 10 V |

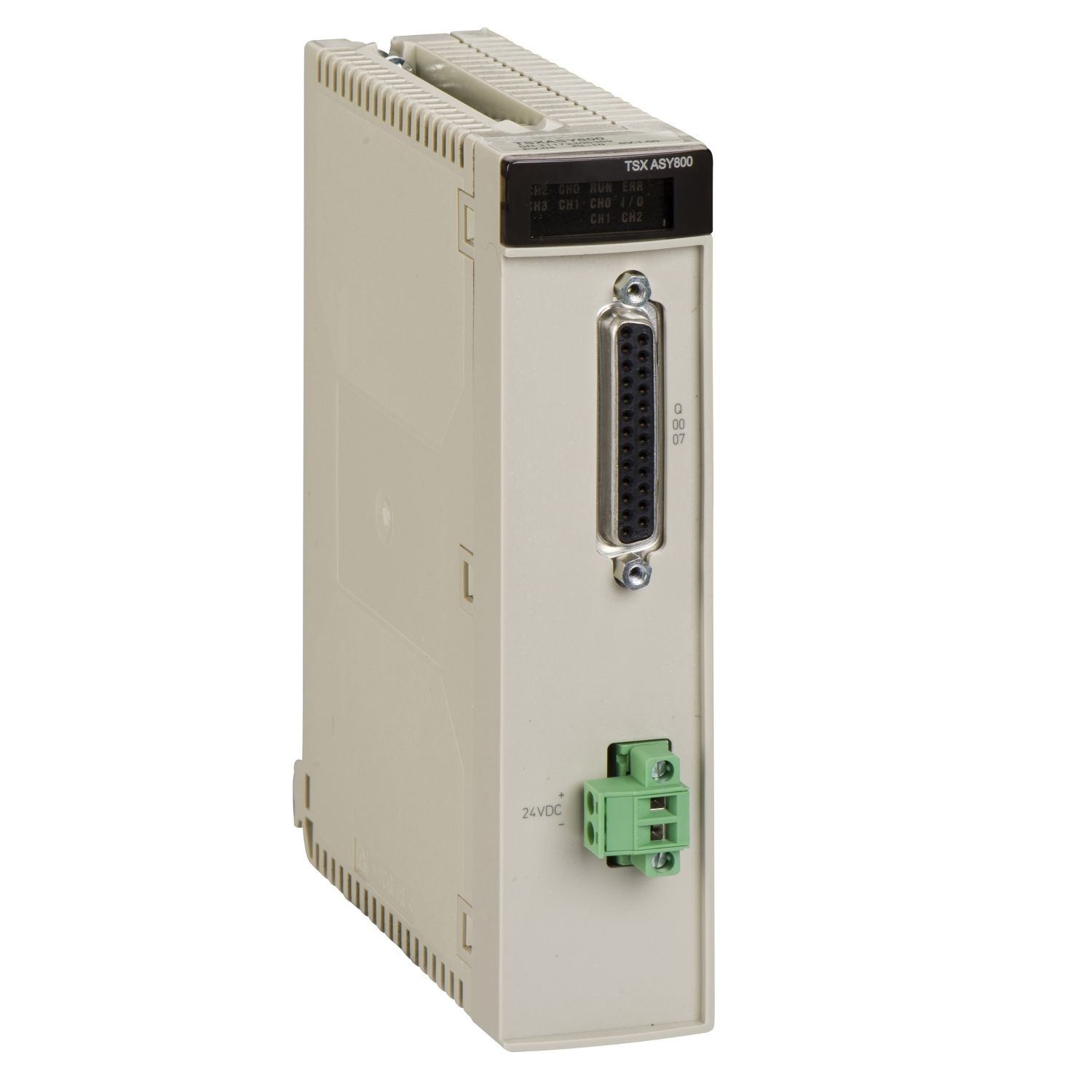

| Product or component type | analog output module |
| Analogue output type | voltage: +/- 10 V, current: 4...20 mA, current: 0...20 mA |
| Range of product | Modicon Premium Automation platform |
| Complementary | |
| Measurement resolution | 2.56 µA 4...20 mA, 2.56 µA 0...20 mA, 1.28 mV +/- 10 V |
| Maximum load capacitance | 0.1 µF |
| Conversion time | 5 ms |
| Module format | standard |
| Protection type | overload protection, short-circuit protection |
| Electrical connection | 1 SUB-D 25 connector |
| Output voltage limits | <= 30 V |
| Load impedance ohmic | > 1000 Ohm +/- 10 V, < 600 Ohm 4...20 mA, < 600 Ohm 0...20 mA |
| Maximum load inductance | 300 µH |
| Marking | CE |
| Isolation between channels | common point |
| Current consumption | 300 mA at 24 V DC, 200 mA at 5 V DC |
| Isolation between channels and bus | 1000 Vrms |
| Terminals description PLC n°1 | (21)OUT_ANA_VOLT#5, (7)OUT_ANA_VOLT#4, (2)OUT_ANA_CUR#0, (23)OUT_ANA_COM#6, (14)OUT_ANA_COM#0, PW_POS#, (10)OUT_ANA_VOLT#6, (22)OUT_ANA_CUR#5, (18)OUT_ANA_VOLT#3, (15)OUT_ANA_VOLT#1, (6)OUT_ANA_COM#3, (5)OUT_ANA_CUR#2, (12)OUT_ANA_COM#7, (3)OUT_ANA_COM#1, (25)OUT_ANA_CUR#7, PW_NEG#, (19)OUT_ANA_CUR#3, (11)OUT_ANA_CUR#6, (9)OUT_ANA_COM#5, (4)OUT_ANA_VOLT#2, (17)OUT_ANA_COM#2, (1)OUT_ANA_VOLT#0, (20)OUT_ANA_COM#4, (8)OUT_ANA_CUR#4, (24)OUT_ANA_VOLT#7, (13)IN_ANA_STD#, (16)OUT_ANA_CUR#1 |
| Measurement error | 0.52 % of full scale 4...20 mA 0...60 °C, 0.52 % of full scale 0...20 mA 0...60 °C, 0.28 % of full scale +/- 10 V 0...60 °C, 0.21 % of full scale 4...20 mA 25 °C, 0.21 % of full scale 0...20 mA 25 °C, 0.14 % of full scale +/- 10 V 25 °C |
| Isolation between channels and ground | 1000 Vrms |
| Environment | |
| Operating altitude | 0...2000 m |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Relative humidity | 5-95 % without condensation for storage, 10-95 % without condensation for operation |
| Ambient air temperature for storage | -25-70 °C |
| Pollution degree | 2 |
| Standards | CSA C22.2 No 213 Class I Division 2 Group C, 92/31/EEC, IEC 61131-2, UL 508, CSA C22.2 No 213 Class I Division 2 Group D, 89/336/EEC, CSA C22.2 No 213 Class I Division 2 Group B, 73/23/EEC, CSA C22.2 No 142, CSA C22.2 No 213 Class I Division 2 Group A, 93/68/EEC |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | GL, RMRS, ABS, LR, DNV, RINA, BV |
