Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Analogue input type | voltage 1...5 V, voltage 0...5 V, voltage 0...10 V, voltage +/- 10 V, current 4...20 mA, current 0...20 mA |
| Analog/digital conversion | 16 bits |
| Analogue input number | 4 |
| Input level | high level |

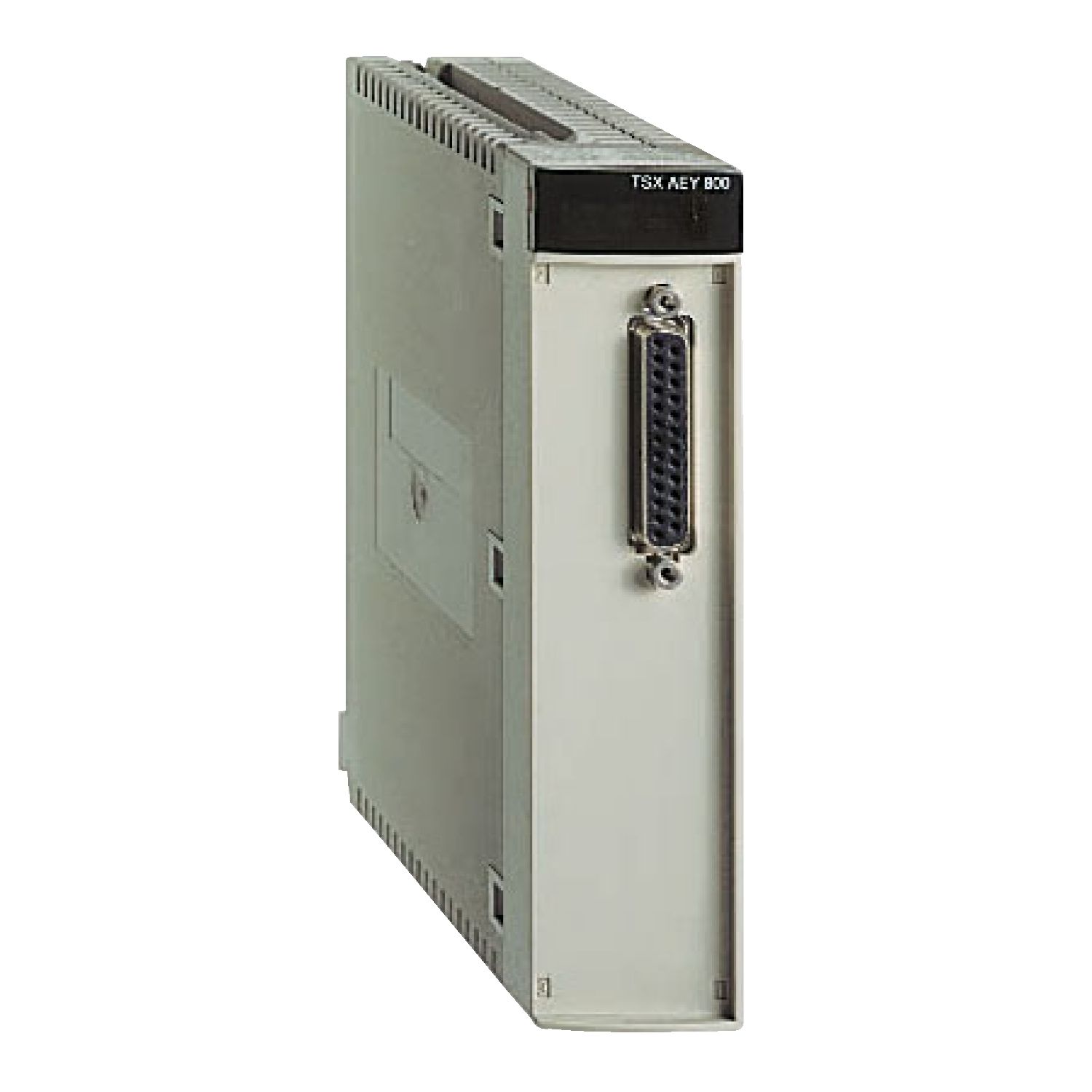

| Product or component type | analog input module |
| Range of product | Modicon Premium Automation platform |
| Complementary | |
| Module format | standard |
| Common mode between channels | none |
| Input overvoltage protection | -30-30 V at state 1 250 Ohm, -15-15 V at state 0 250 Ohm |
| Nominal read cycle time | 1 ms |
| Net weight | 0.33 kg |
| Marking | CE |
| Isolation between channels | common point |
| Overcurrent | -30-30 mA at state 1 250 kOhm |
| Current consumption | 500 mA at 5 V DC |
| Isolation between channels and bus | 1000 Vrms |
| Electrical connection | 1 connector SUB-D 25 |
| Measurement error | 0.4 % of full scale 0...20 mA 0...60 °C, 0.2 % of full scale 4...20 mA 25 °C, 0.2 % of full scale 1...5 V 25 °C, 0.2 % of full scale 0...5 V 25 °C, 0.2 % of full scale 0...20 mA 25 °C, 0.2 % of full scale 0...10 V 0...60 °C, 0.2 % of full scale +/- 10 V 0...60 °C, 0.1 % of full scale 0...10 V 25 °C, 0.4 % of full scale 4...20 mA 0...60 °C, 0.4 % of full scale 1...5 V 0...60 °C, 0.4 % of full scale 0...5 V 0...60 °C, 0.1 % of full scale +/- 10 V 25 °C |
| Isolation between channels and ground | 1000 Vrms |
| Environment | |
| Operating altitude | 0...2000 m |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Relative humidity | 5-95 % without condensation for storage, 10-95 % without condensation for operation |
| Ambient air temperature for storage | -25-70 °C |
| Pollution degree | 2 |
| Standards | IEC 1131 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | DNV, GL, RMRS, RINA, ABS, LR, BV |
