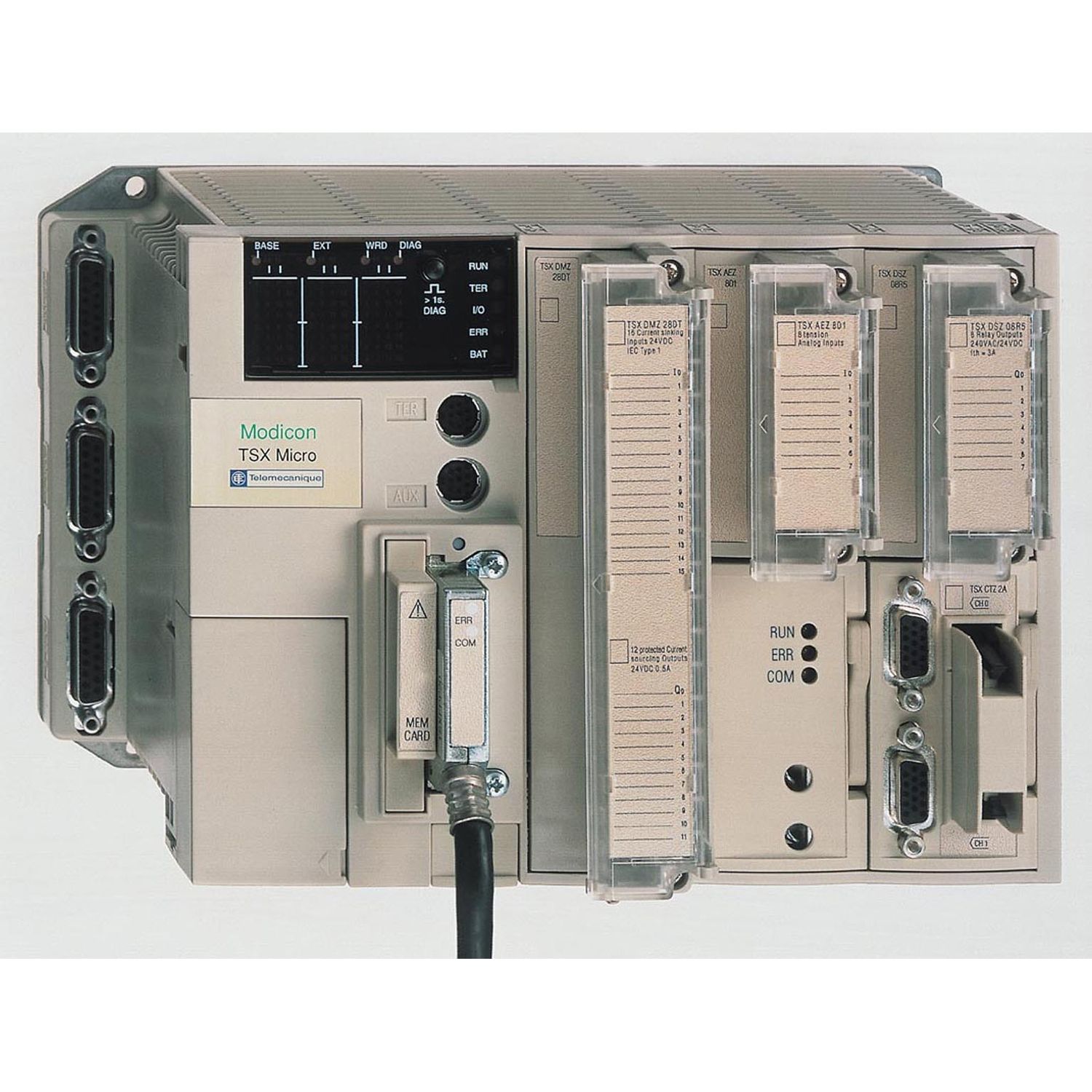

This product is part of the Modicon TSX Micro range, an offer of Programmable Logic Controllers (PLC). This modular base controller has 3 slots. It is a modular base controller with a primary voltage of 100V to 240V, 90V to 264V AC and 0.5A output current. Integrated connections are 1 serial link Uni-Telway 19.2kbps and 1 Modbus RTU 19.2kbps. Its dimensions are 341.4mm (width) x 152mm (depth) x 151mm (height) and weighs 1.75kg. It is suitable for infrastructures, machine and manufacturing control applications. The automation platform designed to enhance system's performance. With Micro's accuracy, flexibility and increased productivity, you have a real partner at the heart of the machine.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Primary voltage | 100...240 V 90-264 V AC |
| Input current | 2 mA 60 A |
| Immunity to microbreaks | 20 ms |
| Range of product | Modicon TSX Micro automation platform |
| Product or component type | modular base controller |
| Output current | 0.5 A |
| Complementary | |
| Memory description | internal RAM 128 Kwords data storage, internal RAM (with PCMCIA card) 128 Kwords program and data, internal RAM 20 Kwords data, flash 15 Kwords data |
| Protection type | short-circuit, overload protection |
| Realtime clock | with |
| Number of slots | 3 |
| Counting input type | incremental 1 10 Hz, discrete incremental counter 1 10 Hz |
| Maximum size of object areas | 1 %MWi internal words, 256 %Mi, 128 %KWi constant words |
| Application structure | 1 master task, 16 event tasks, 1 fast task |
| Electromagnetic compatibility | immunity to electromagnetic interference conforming to IEC 61131-2, damped oscillatory wave conforming to IEC 1000-4-12, immunity to impulse waves conforming to IEC 1000-4-5, resistance to fast transient conforming to IEC 1000-4-4 level 3, electromagnetic field immunity test conforming to IEC 1000-4-3 level 3, electrostatic discharge conforming to IEC 1000-4-2 level 3 |
| Execution time for 1 KInstruction | 0.266 65 % Boolean and 35 % numerical with PCMCIA card, 4 100 % Boolean with PCMCIA card, 0.27 65 % Boolean and 35 % numerical without PCMCIA card, 5.88 100 % Boolean without PCMCIA card |
| Analogue input type | 0...10 V 8 |
| Integrated connection type | 1 Modbus Modbus RTU 19.2 kbit/s, 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s |
| Execution time per instruction | 4.5 µs arithmetic REAL floating with PCMCIA card, 0.19 µs Boolean with PCMCIA card, 4.5 µs arithmetic REAL floating without PCMCIA card, 0.13 µs Boolean without PCMCIA card |
| System overhead | 2.3 ms for master task |
| Total useful secondary power | 24 W |
| Analogue output type | 0...10 V 1 |
| Network frequency | 50...60 Hz |
| Environment | |
| Relative humidity | 5-95 % without condensation for operation, 10-95 % without condensation for operation |
| Ambient air temperature for storage | -25-70 °C |
| Ambient air temperature for operation | 0-60 °C |
| Height | 151 mm |
| Operating altitude | 0...2000 m |
| Depth | 152 mm |
| Width | 341.4 mm |
| Net weight | 1.75 kg |
