Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Primary voltage | 100...240 V 90-264 V AC |
| Input current | 2 mA 60 A |
| Immunity to microbreaks | 20 ms |

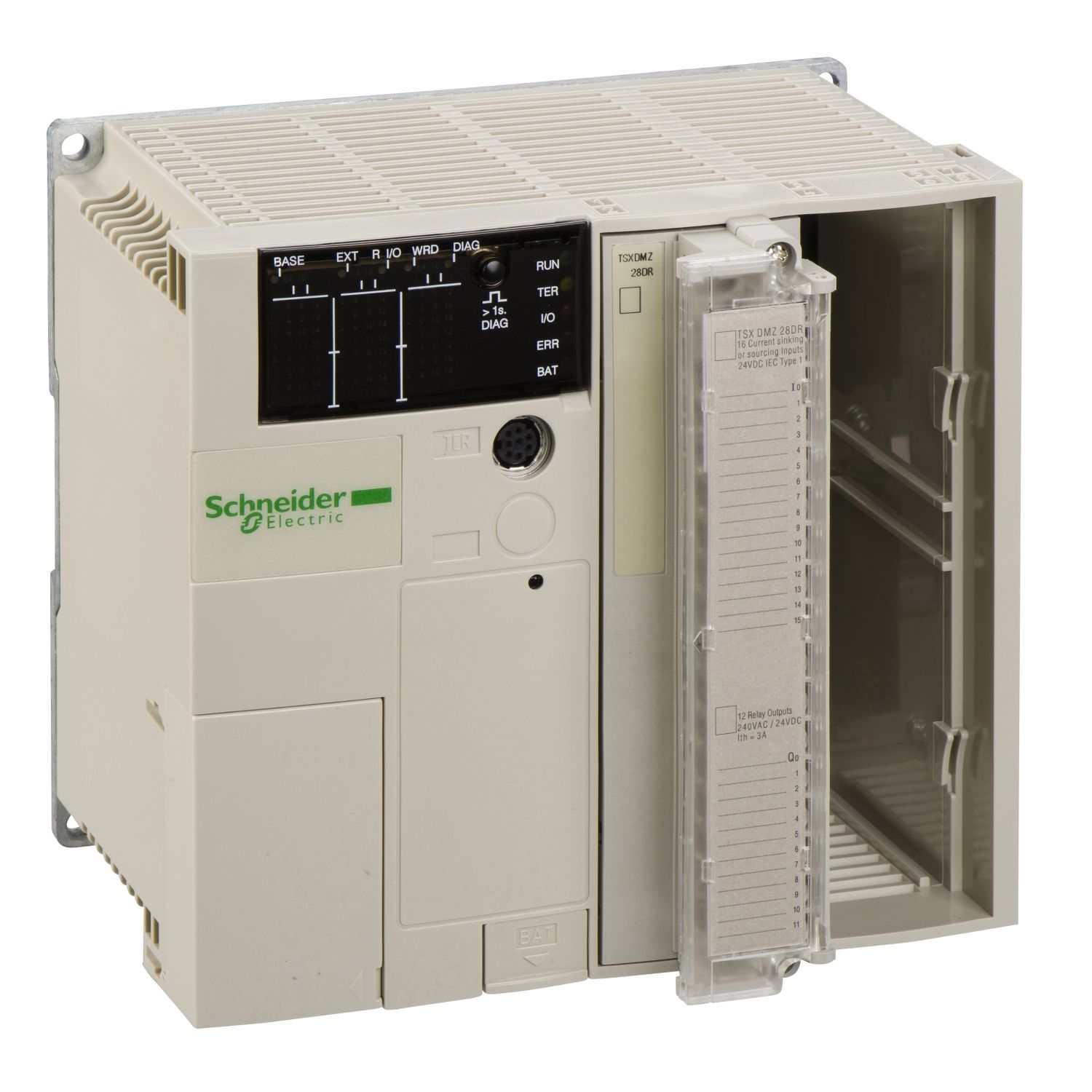

| Range of product | Modicon TSX Micro automation platform |
| Product or component type | modular base controller |
| Output current | 0.5 A |
| Complementary | |
| Memory description | internal RAM 128 Kwords data storage, internal RAM (with PCMCIA card) 128 Kwords program and data, internal RAM 20 Kwords data, flash 15 Kwords data |
| Protection type | short-circuit, overload protection |
| Realtime clock | with |
| Number of slots | 3 |
| Maximum size of object areas | 1 %MWi internal words, 256 %Mi, 128 %KWi constant words |
| Application structure | 1 fast task, 1 master task, 16 event tasks |
| Electromagnetic compatibility | immunity to electromagnetic interference conforming to IEC 61131-2, damped oscillatory wave conforming to IEC 1000-4-12, immunity to impulse waves conforming to IEC 1000-4-5, resistance to fast transient conforming to IEC 1000-4-4 level 3, electromagnetic field immunity test conforming to IEC 1000-4-3 level 3, electrostatic discharge conforming to IEC 1000-4-2 level 3 |
| Execution time for 1 KInstruction | 0.266 65 % Boolean and 35 % numerical with PCMCIA card, 4 100 % Boolean with PCMCIA card, 0.27 65 % Boolean and 35 % numerical without PCMCIA card, 5.88 100 % Boolean without PCMCIA card |
| Integrated connection type | 1 Modbus Modbus RTU 19.2 kbit/s, 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s |
| Execution time per instruction | 4.5 µs arithmetic REAL floating with PCMCIA card, 0.19 µs Boolean with PCMCIA card, 4.5 µs arithmetic REAL floating without PCMCIA card, 0.13 µs Boolean without PCMCIA card |
| System overhead | 1.6 ms for master task |
| Total useful secondary power | 16 W |
| Environment | |
| Relative humidity | 5-95 % without condensation for operation, 10-95 % without condensation for operation |
| Ambient air temperature for storage | -25-70 °C |
| Ambient air temperature for operation | 0-60 °C |
| Height | 151 mm |
| Operating altitude | 0...2000 m |
| Depth | 152 mm |
| Width | 341.4 mm |
| Net weight | 1.72 kg |
