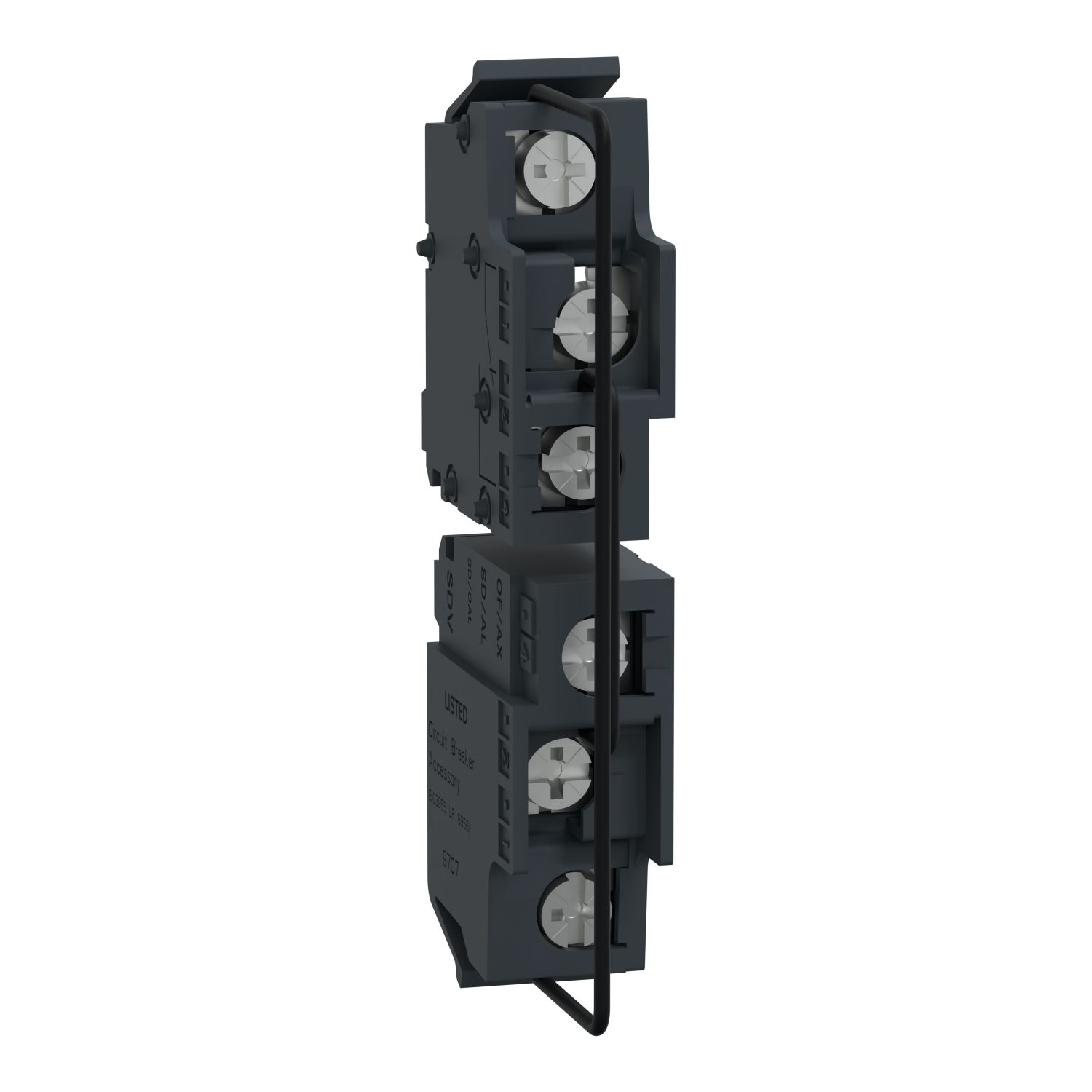

TPSAUX44 is auxiliary contact as signal accessory used to ATSE in TransferPacT series. It is acted as status indication for switch mechanical position on OFF poisition for TransferPacT transfer switch. This contact compostion of signalling is 2NC+2NO. The minimum load current is provided 100mA@24VDC. It is mounted mode "clip-on" inside of front cover on transfer switch. This spring terminal is fitted with 0.5-1.5 mm²(20-16 AWG) cables.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | signalling |
| Product or component type | Auxiliary Contact Module |
| Range of product | TransferPacT |
| Complementary | |
| Minimum load | 100 mA at 24 V DC |
| Product compatibility | TR63, TA63, TR25, TA25 |
| Mounting position | inside front cover |
| [Ie] rated operational current | AC-15: 0.1 A at 660/690 V AC 50/60 Hz, AC-15: 1.5 A at 480 V AC 50/60 Hz, AC-15: 2 A at 380/440 V AC 50/60 Hz, AC-15: 4 A at 220/240 V AC 50/60 Hz, AC-15: 5 A at 110 V AC 50/60 Hz, AC-15: 6 A at 48 V AC 50/60 Hz, AC-15: 6 A at 24 V AC 50/60 Hz, AC-12: 6 A at 660/690 V AC 50/60 Hz, AC-12: 6 A at 480 V AC 50/60 Hz, AC-12: 6 A at 380/440 V AC 50/60 Hz, AC-12: 6 A at 220/240 V AC 50/60 Hz, AC-12: 6 A at 110 V AC 50/60 Hz, AC-12: 6 A at 48 V AC 50/60 Hz, AC-12: 6 A at 24 V AC 50/60 Hz |
| Mounting mode | clip-on |
| Accessory / separate part category | signalling accessory |
| [Ith] conventional free air thermal current | 5 A |
| Auxiliary connection terminal | spring 0.5-1.5 mm² (AWG 20...AWG 16) |
| Tightening torque | 0.6 N.m +/- 0.1 N.m |
| Auxiliary contact composition | 2 NO + 2 NC |
| Signalling function | switch position (off) |
| Environment | |
| IP degree of protection | IP20 |
| Pollution degree | 3 |
