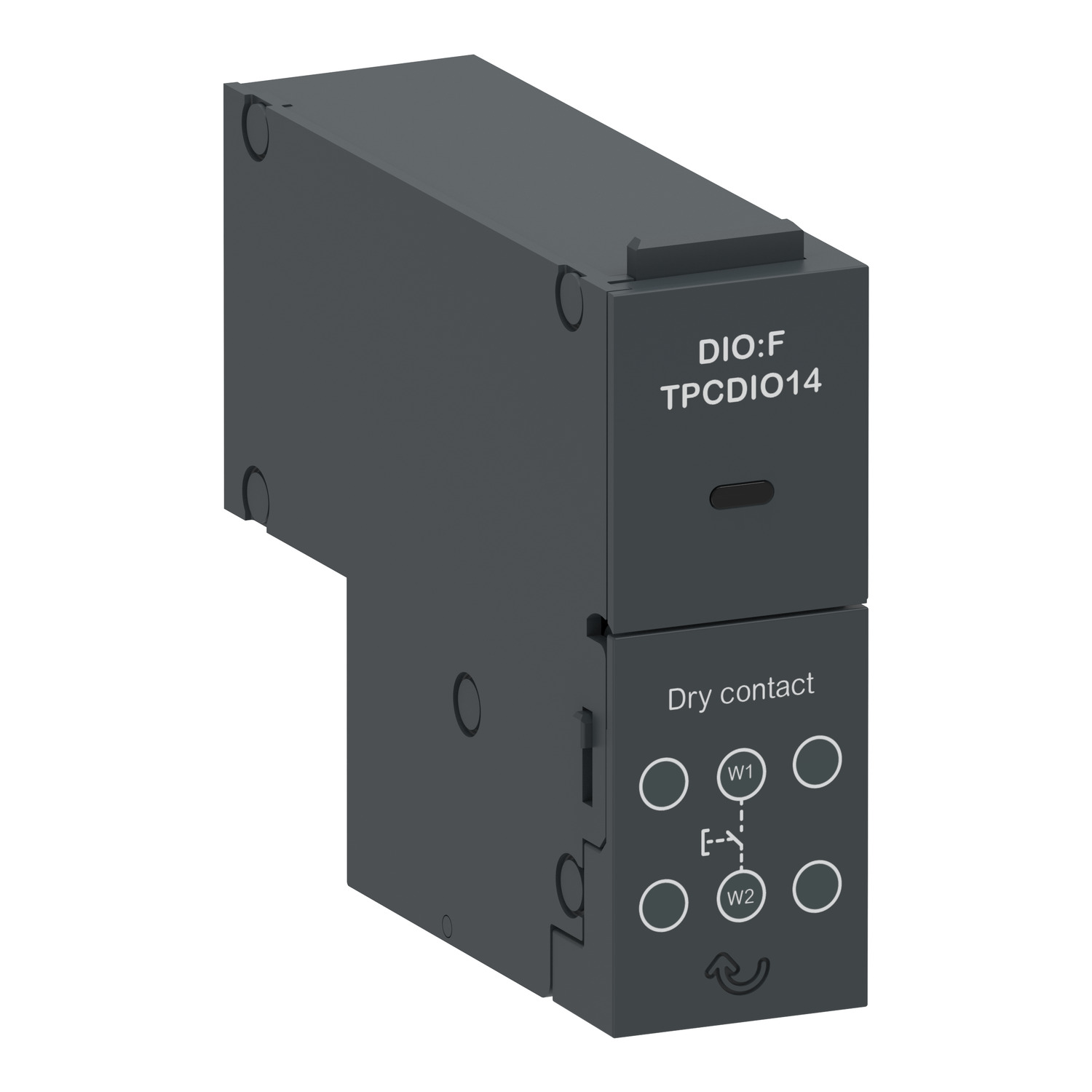

TPCDIO14 is input module as signalling accessory. It is provided 24VDC pulse signal for fire protection. The fire protection signal can transfer ATSE to off position when there is fire emergency and protect power continuity for crtical loads.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device application | signalling |
| Product or component type | Dry contact, I/O module |
| Range of product | TransferPacT |
| Complementary | |
| [Ui] rated insulation voltage | 30 V DC |
| Depth | 69 mm |
| Width | 20 mm |
| Mounting position | left-bottom |
| Mounting mode | plug-in |
| Accessory / separate part category | signalling accessory |
| Input current | 5 mA |
| Auxiliary connection terminal | screw clamp terminal 0.05-2.6 mm² |
| Tightening torque | 0.6 N.m +/- 0.1 N.m |
| Auxiliary contact composition | 1 NO |
| Height | 56.5 mm |
| Signalling function | fire protection (transfer to off position) |
| Environment | |
| IP degree of protection | IP20 |
| Pollution degree | 3 |
