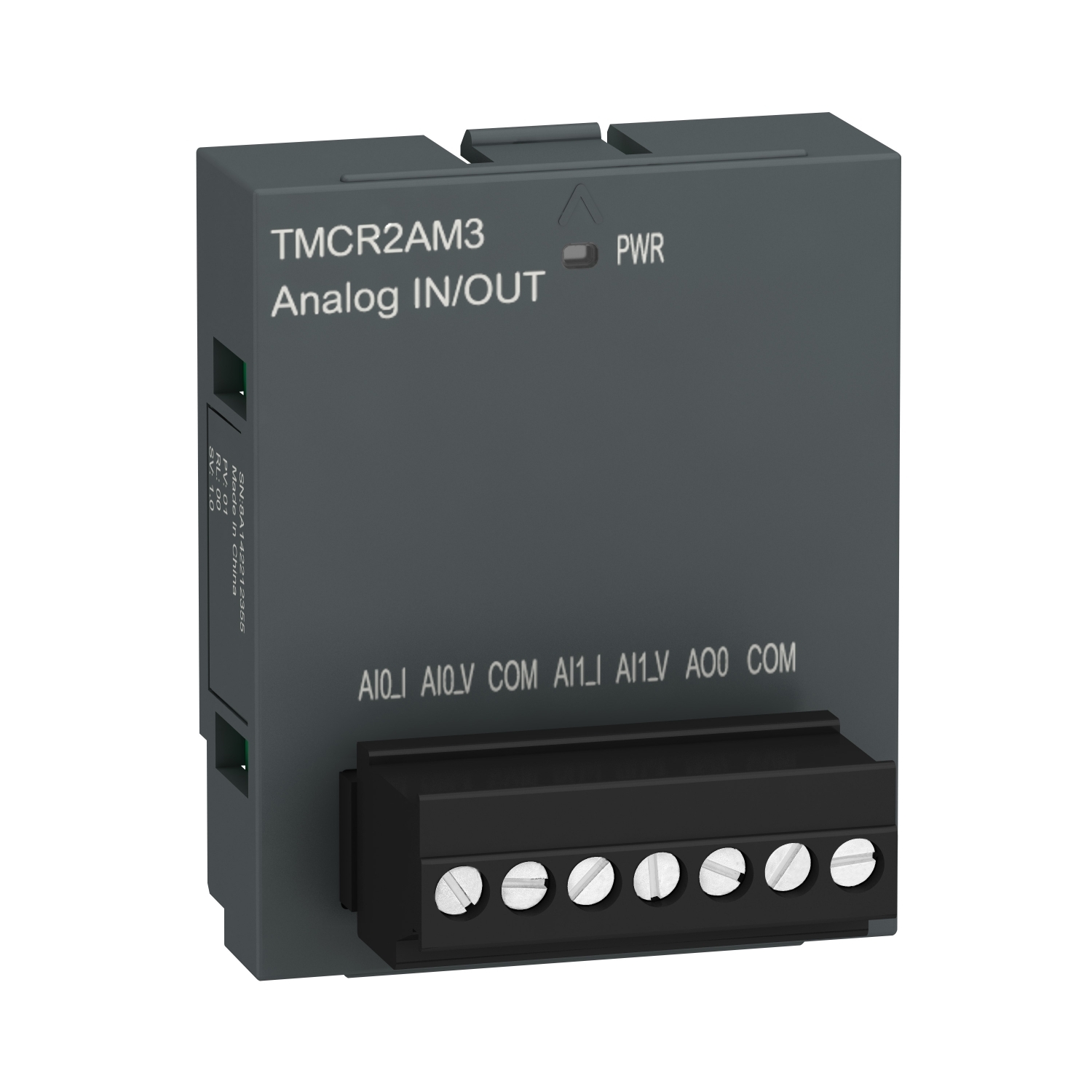

This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 IO. This optional cartridge provides 2 additional analog inputs and 1 analog output. The analog IOs can be configured as current 4mA to 20mA or 0mA to 20mA, or voltage 0V to 10V or 0V to 5V. This IO cartridge provides additional analog IOs (16bits resolution) to the controller. The data conversion time is 2ms, the sampling duration is 1ms. The IOs are wired with twisted shielded pairs cable on the screw terminal block of the cartridge. It is 41mm high, 15mm deep, and 35mm wide. It weighs 0.024kg. This optional cartridge provides 2 additional analog inputs and 1 analog ouput to the controller. This product is marqued CE, and certified by IEC/EN 61131-2, UL 508, and IEC/EN 61010-2-201. This cartridge is an optional part of Modicon M200 logic controller. It installs in a specific slot on controller, when removing the cartridge cover. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | Easy Modicon M200 |
| Analogue input number | 2 |
| Product or component type | analogue I/O cartridge |
| Range of product | Easy Modicon M200 |
| Complementary | |
| Analogue input type | voltage 0...5 V, voltage 0...10 V, current 0...20 mA, current 4...20 mA |
| Sampling duration | 1 ms |
| Insulation | between output and internal logic |
| Conversion time | 2 ms |
| Depth | 15 mm |
| Width | 35 mm |
| Cross talk | 80 dB |
| Local signalling | 1 LED (green) for PWR |
| Load impedance ohmic | >= 2 kOhm, <= 500 Ohm |
| Analogue output number | 1 |
| Stabilisation time | 40 ms |
| Analogue output resolution | 16 bits |
| Absolute accuracy error | +/- 1 % of full scale at 55 °C |
| Type of cable | twisted shielded pairs cable |
| Net weight | 0.024 kg |
| Analogue input resolution | 16 bits |
| Permissible continuous overload | 30 V, analogue input type: voltage, 40 mA, analogue input type: current |
| LSB value | 1 mV 4...20 mAcurrent 0...10 V voltage, 1 mV 0...20 mAcurrent 0...5 V voltage, 2 µA 0...10 Vvoltage 0...20 mA current, 2 µA 0...5 Vvoltage 4...20 mA current |
| Analogue output type | voltage: 0...5 V, current: 0...20 mA, voltage: 0...10 V, current: 4...20 mA |
| Load type | resistive |
| Input impedance | >= 1 MOhm voltage, <= 250 Ohm current |
| Height | 41 mm |
| Maximum cable distance between devices | twisted shielded pairs cable: <30 m for input/output |
| Electrical connection | 7 x 1.5 mm² screw terminal block with pitch 3.5 mm adjustment for inputs and outputs |
