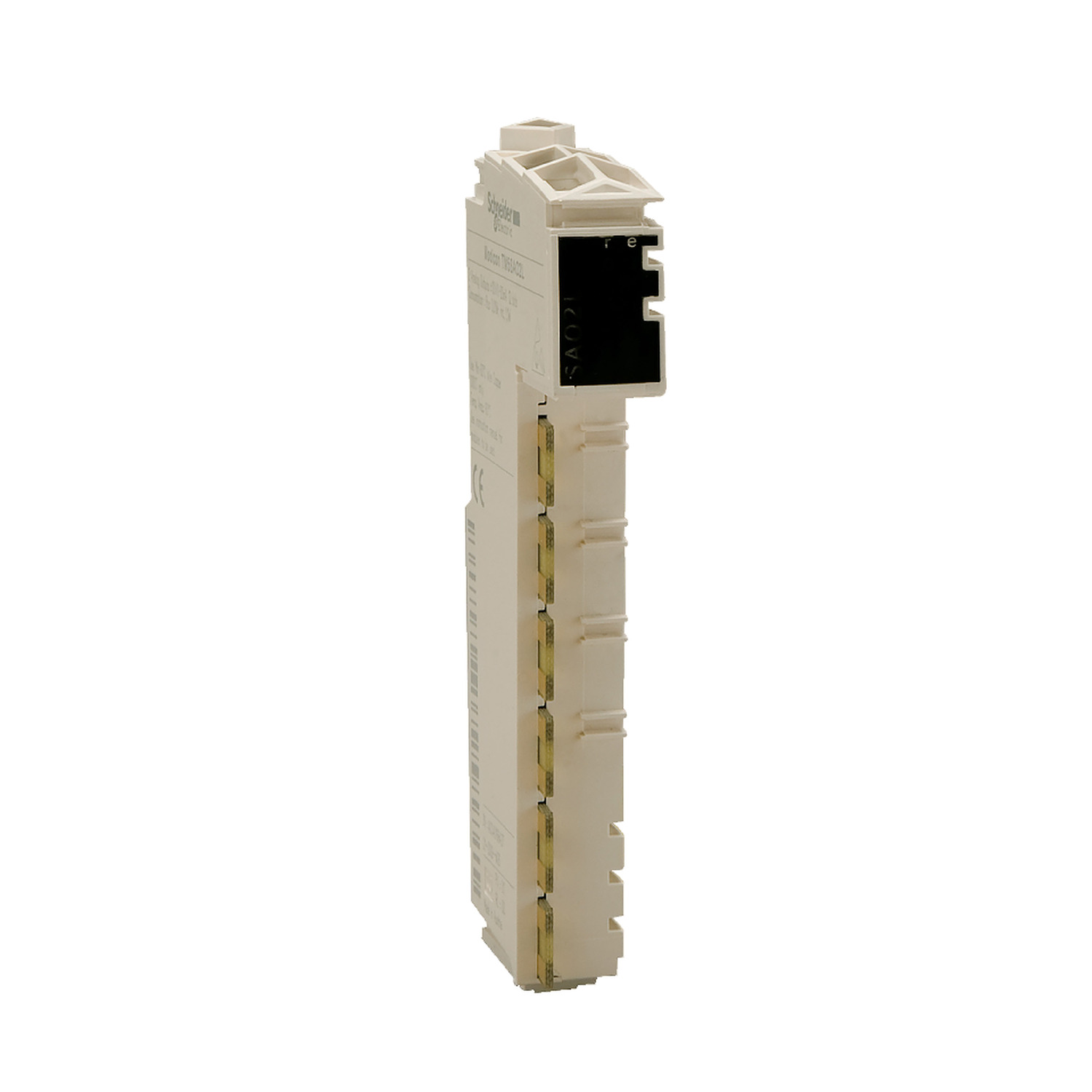

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This IO module features 4 discrete inputs sink logic, 1 analog input -10/+10V DC, 2 discrete transistor outputs 0.5A source logic, 1 analog output 0…20mA. There is an isolation between channel and bus at 500V AC. This product is part of a flexible and scalable I/O configuration for automation solutions. It features 2 LEDs for power supply, 2 LEDs for safety status and 20 LEDs for input status signaling. It is furnished with 2 wires for electrical connection. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | logic controller, motion controller |
| Range of product | Modicon TM5 |
| Range compatibility | Modicon M258, Modicon LMC058 |
| Product or component type | mixed I/O module |
| Complementary | |
| Voltage state 1 guaranteed | >= 15 V |
| Protection type | against short-circuits for analog output, thermal overload protection for digital output, against short-circuits for digital output, against reverse polarity for digital output |
| Measurement resolution | 4.883 µA, 0...20 mA/4...20 mA, 0...20 mA, 2.441 mV, +/- 10 V, +/- 10 V |
| Temperature coefficient | +/- 0.02 %FS/°C (output: +/- 10 V) , +/- 0.02 %FS/°C (output: 0...20 mA) , +/-0.006 %FS/°C (input: +/- 10 V) , +/- 0.009 %FS/°C (input: 0...20 mA/4...20 mA) |
| Common mode rejection | 70 dB 50 Hz for analog input, 70 dB DC for analog input |
| Isolation | 500 Vrms AC insulation between channel and bus, no insulation between channels |
| Load impedance ohmic | <= 300 Ohm (input: 0...20 mA/4...20 mA) , <= 300 Ohm (output: 0...20 mA) at 55-60 °C, <= 400 Ohm (output: 0...20 mA) at 0-55 °C |
| Discrete input logic | sink |
| Colour | white |
| Analogue output number | 1 |
| Maximum power dissipation in W | 1.75 W |
| Conversion time | 300 µs for analog output |
| Type of cable | shielded cable |
| Discrete output current | <= 1 A, <= 0.5 A per output |
| Input voltage limits | 20.4...28.8 V |
| Marking | CE |
| Response time | 1 ms for analog output, <= 250 µs from state 1 to state 0 for digital output, <= 250 µs from state 0 to state 1 for digital output |
| Wiring mode | 1 wire for digital input/output |
| Discrete output logic | source |
| Measurement error | < 0.15 % of full scale (output: 0...20 mA) at 25 °C, < 0.15 % of full scale (output: +/- 10 V) at 25 °C, < 0.08 % of full scale (input: 0...20 mA/4...20 mA) at 25 °C, < 0.08 % of full scale (input: +/- 10 V) at 25 °C |
| Discrete output type | transistor |
| [Us] rated supply voltage | 24 V DC -15...20 % |
| Sampling duration | 300 µs for analog input |
| Switching frequency | 100 Hz, resistive for digital output |
| Input filtering | <= 25 ms configurable by software, 1 ms by default, <= 2 µs hardware |
| Analogue input type | current, input range: 0...20 mA/4...20 mA, voltage, input range: +/- 10 V |
| Peak output current | 14 A |
| Analogue output resolution | 12 bits, 0...20 mA, 12 bits + sign, +/- 10 V |
| Local signalling | 1 LED (green), 1 LED (orange), 2 LEDs (orange) for digital output status, 4 LEDs (green) for digital input status, 1 LED (red) for power supply (OFF), 1 LED (green) for power supply (ON) |
| Discrete input number | 4 |
| Output voltage limits | 20.4...28.8 V |
| Discrete output number | 2 |
| Analogue input number | 1 |
| Current consumption | 73 mA at 24 V DC inputs/outputs, 2 mA at 5 V DC bus |
| Input impedance | >= 1 MOhm analog, +/- 10 V, 7.18 kOhm digital |
| Maximum leakage current | 5 µA (when switched off) for digital output |
| Voltage state 0 guaranteed | <= 5 V |
| Net weight | 0.025 kg |
| Analogue input resolution | 12 bits for current, 12 bits + sign for voltage |
| Discrete input current | 3.3 mA |
| Supply | internal |
| Non-linearity | +/- 0.1 %FS (output: +/- 10 V) , +/- 0.1 %FS (output: 0...20 mA) , +/- 0.02 %FS (input: +/- 10 V) , +/- 0.02 %FS (input: 0...20 mA/4...20 mA) |
| Discrete input voltage type | DC |
| Analogue output type | current: 0...20 mA, voltage: +/- 10 V |
| Discrete input voltage | 24 V |
| Minimum output impedance | 10 kOhm +/- 10 V 55-60 °C, 1 kOhm +/- 10 V 0-55 °C |
| Output voltage | 24 V DC |
| Environment | |
| Resistance to fast transients | 2 kV (power lines) conforming to IEC 61000-4-4, 1 kV (shielded cable) conforming to IEC 61000-4-4, 1 kV (I/O) conforming to IEC 61000-4-4 |
| Resistance to electrostatic discharge | 8 kV in air conforming to IEC 61000-4-2, 4 kV on contact conforming to IEC 61000-4-2 |
| Relative humidity | 5-95 % without condensation |
| Ambient air temperature for storage | -25-70 °C |
| Surge withstand | 1 kV common mode conforming to IEC 61000-4-5, 0.5 kV differential mode conforming to IEC 61000-4-5 |
| Pollution degree | 2 conforming to IEC 60664 |
| Electromagnetic compatibility | EN/IEC 61000-4-6 |
| Disturbance radiated/conducted | CISPR 11 |
| IP degree of protection | IP20 conforming to IEC 61131-2 |
| Ambient air temperature for operation | 0-50 °C (vertical installation), 55-60 °C with derating factor (horizontal installation), 0-55 °C without derating (horizontal installation) |
| Resistance to electromagnetic fields | 10 V/m 80...2000 MHz conforming to IEC 61000-4-3, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3 |
| Operating altitude | 0...2000 m |
| Shock resistance | 15 gn for 11 ms |
| Vibration resistance | 3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail |
| Storage altitude | 0-3000 m |
| Standards | CSA C22.2 No 213, UL 508, CSA C22.2 No 142, IEC 61131-2 |
| Product certifications | GOST-R, cULus, CSA, C-Tick |
