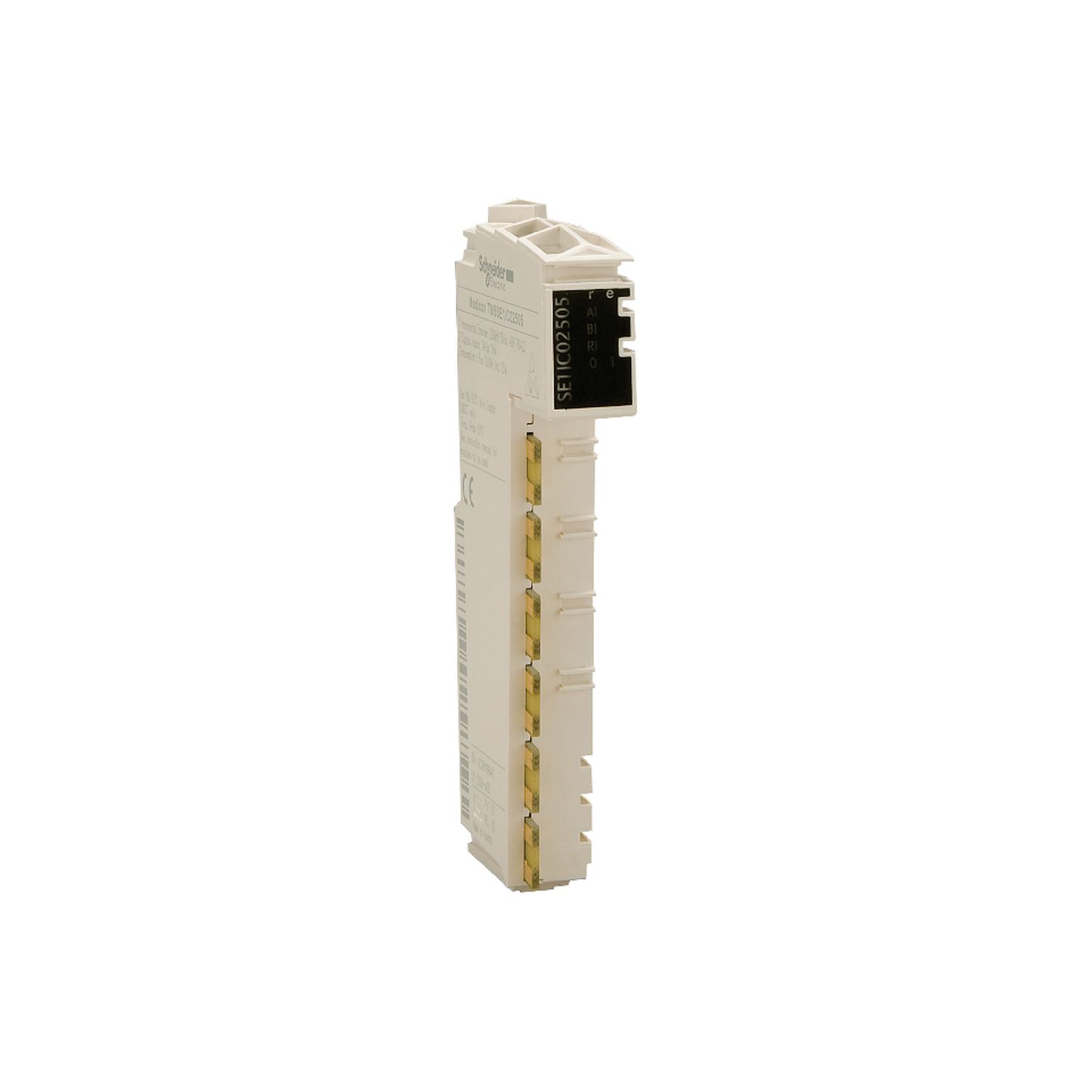

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. This counter module provides 1 HSC incremental input. Its counting frequency is 250kHz per channel. This product is part of a flexible and scalable I/O configuration for automation solutions. There is an insulation between channel and bus at 500Vrms AC and no insulation between channels. The maximum cycle time is 2ms and counter input resolution is 16bit/32bit. It is an IP20 rated product. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Function of module | 24 V DC encoder power supply, 2 x 24 V DC RS422 sink auxiliary inputs |
| Discrete input number | 1 |
| Product or component type | counter module |
| Counting frequency | 250 kHz |
| Encoder type | 1 incremental encoder |
| Range of product | Modicon TM5 |
| Complementary | |
| Input filtering | <= 200 ms |
| Product compatibility | logic controller, motion controller |
| Range compatibility | Modicon M258, Modicon LMC058 |
| Discrete input current | 3.3 mA at 24 V |
| Isolation | 500 Vrms AC insulation between channel and bus |
| Discrete input logic | sink |
| Maximum power dissipation in W | 1.51 W |
| Input resistance | 7.19 kOhm |
| Input compatibility | 1 incremental encoder (5 V) |
| Current consumption | 63 mA at 24 V DC input/output, 2 mA at 5 V DC bus |
| Counter inputs resolution | 16 bits/32 bits |
| Marking | CE |
| Discrete input voltage | 24 V DC |
| Maximum cycle time | 2 ms |
| Environment | |
| Operating altitude | 0...2000 m |
| Resistance to fast transients | 2 kV (power lines) conforming to IEC 61000-4-4, 1 kV (shielded cable) conforming to IEC 61000-4-4, 1 kV (I/O) conforming to IEC 61000-4-4 |
| Resistance to electrostatic discharge | 8 kV in air conforming to IEC 61000-4-2, 4 kV on contact conforming to IEC 61000-4-2 |
| Relative humidity | 5-95 % without condensation |
| Ambient air temperature for storage | -25-70 °C |
| Surge withstand | 1 kV common mode conforming to IEC 61000-4-5, 0.5 kV differential mode conforming to IEC 61000-4-5 |
| Pollution degree | 2 conforming to IEC 60664 |
| Electromagnetic compatibility | EN/IEC 61000-4-6 |
| Disturbance radiated/conducted | CISPR 11 |
| Shock resistance | 15 gn for 11 ms |
| Vibration resistance | 3.5 mm at 5-8.4 Hz on DIN rail, 1 gn at 8.4-150 Hz on DIN rail |
| IP degree of protection | IP20 conforming to IEC 61131-2 |
| Ambient air temperature for operation | 0-50 °C (vertical installation), 0-60 °C with derating factor (horizontal installation), 0-55 °C without derating (horizontal installation) |
| Storage altitude | 0-3000 m |
| Standards | IEC 61131-2, CSA C22.2 No 213, CSA C22.2 No 142, UL 508 |
| Resistance to electromagnetic fields | 10 V/m 80...2000 MHz conforming to IEC 61000-4-3, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3 |
| Product certifications | CSA, GOST-R, C-Tick, cULus |
