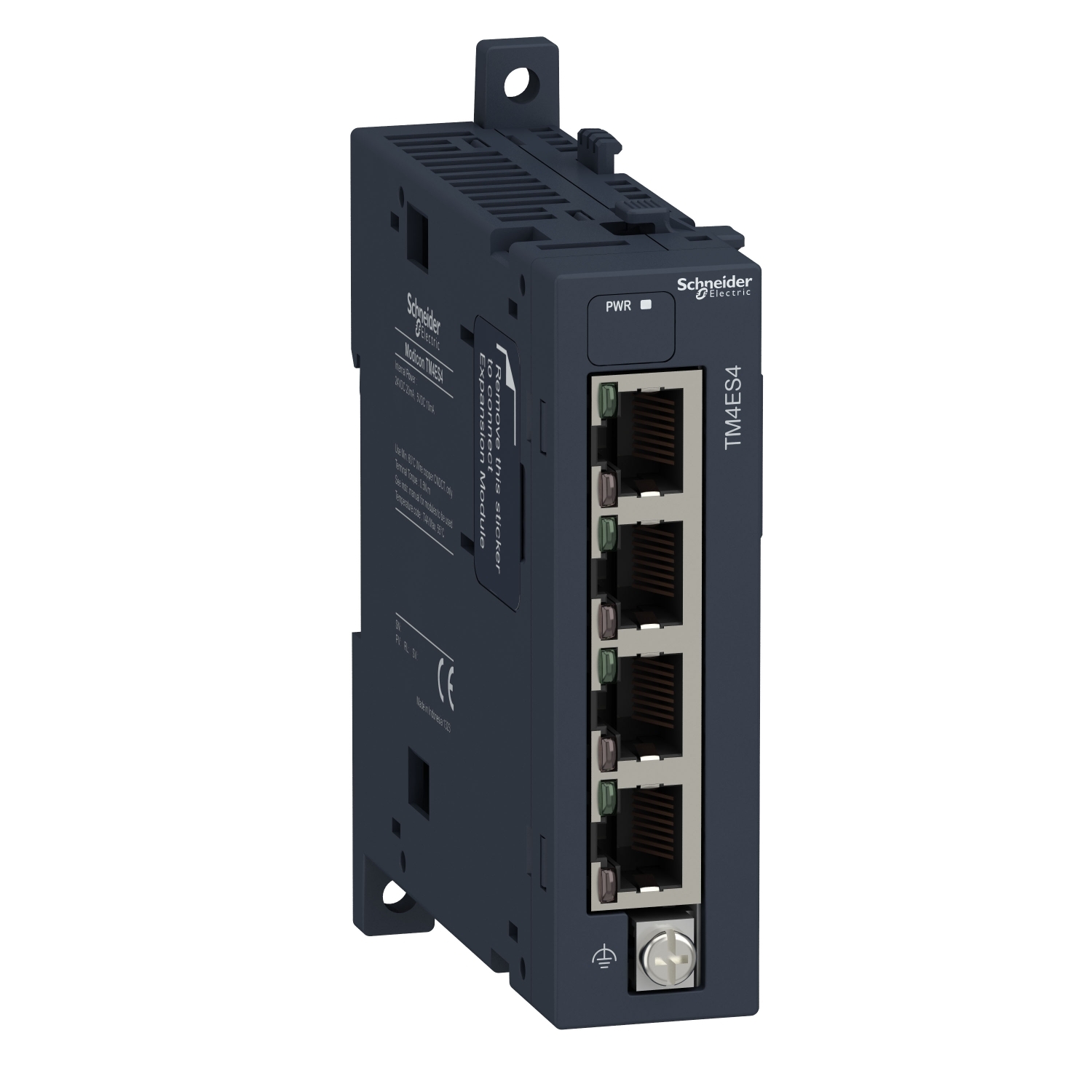

This communication module is proposed as an option Modicon M241/251 controllers. This module provides an Ethernet connection with 4 ports on controllers without embedded Ethernet. It also provides a second Ethernet connection with 4 ports on controllers with embedded Ethernet (except on TM241CEC24x). It is equipped with 4 x RJ45 connectors (10/100 Mbps, MDI/MDIX).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product or component type | Ethernet unmanaged switch |
| Complementary | |
| Web services | web server |
| Surge withstand | 0.5 kV I/O differential mode conforming to IEC 61000-4-5, 1 kV relay output differential mode conforming to IEC 61000-4-5, 1 kV power lines (AC) differential mode conforming to IEC 61000-4-5, 0.5 kV power lines (DC) differential mode conforming to IEC 61000-4-5, 1 kV shielded cable common mode conforming to IEC 61000-4-5, 1 kV I/O common mode conforming to IEC 61000-4-5, 2 kV relay output common mode conforming to IEC 61000-4-5, 2 kV power lines (AC) common mode conforming to IEC 61000-4-5, 1 kV power lines (DC) common mode conforming to IEC 61000-4-5 |
| Marking | CE |
| Transmission rate | 10/100 Mbit/s |
| Communication service | DHCP client, Ethernet/IP slave device, updating firmware, downloading, Modbus TCP client, SNMP, programming, IEC VAR ACCESS, monitoring, NGVL, FTP, Modbus TCP slave device, Modbus TCP server |
| Height | 90 mm |
| Electrical connection | screw connector terminal for connecting the functional ground, RJ45 4 connectors for connecting Ethernet network |
| Depth | 90 mm |
| Maximum number of connections | 16 Ethernet/IP device, 8 Modbus server |
| Width | 25 mm |
| Range compatibility | Modicon M241, Modicon M251 |
| Local signalling | 1 LED per channel (green) for Ethernet port activity, 1 LED per channel (green/yellow) for Ethernet link, 1 LED (green) for PWR |
| Mounting support | plate or panel with fixing kit, top hat type TH35-7.5 rail conforming to IEC 60715, top hat type TH35-15 rail conforming to IEC 60715 |
| Product compatibility | Modicon M251 logic controller, Modicon M241 logic controller |
| Communication port protocol | SNMP, UDP (User Datagram Protocol), TCP (Transmission Control Protocol), Ethernet IP/Modbus TCP |
| Current consumption | 360 mA at 5 V DC for communication bus |
| Net weight | 0.125 kg |
| Redundancy | no |
| Port Ethernet | 10BASE-T/100BASE-TX - 4 port(s) copper cable |
| Integrated connection type | Ethernet: 4 RJ45 connector |
| Environment | |
| Resistance to fast transients | 1 kV (serial link) conforming to IEC 61000-4-4, 1 kV (Ethernet line) conforming to IEC 61000-4-4, 1.5 kV (I/O) conforming to IEC 61000-4-4, 2 kV (relay output) conforming to IEC 61000-4-4, 2 kV (power lines) conforming to IEC 61000-4-4 |
| Resistance to electrostatic discharge | 6 kV on contact conforming to Marine specification (LR, ABS, DNV, GL), 8 kV in air conforming to Marine specification (LR, ABS, DNV, GL), 4 kV on contact conforming to IEC 61000-4-2, 8 kV in air conforming to IEC 61000-4-2 |
| IP degree of protection | IP20 with protective cover in place |
| Relative humidity | 10-95 %, without condensation (in storage), 10-95 %, without condensation (in operation) |
| Ambient air temperature for storage | -25-70 °C |
| Pollution degree | 2 |
| Ambient air temperature for operation | -10-50 °C vertical installation, -10-55 °C horizontal installation |
| Resistance to electromagnetic fields | 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz conforming to IEC 61000-4-3, 10 V/m 80 MHz...1 GHz conforming to IEC 61000-4-3 |
| Resistance to conducted disturbances | 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL), 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL), 10 V 0.15...80 MHz conforming to IEC 61000-4-6 |
| Electromagnetic emission | radiated emissions - test level: 54 dBμV/m QP at 100-2000 MHz conforming to Marine specification (LR, ABS, DNV, GL), radiated emissions - test level: 80...50 dμV/m QP at 150-30000 kHz conforming to Marine specification (LR, ABS, DNV, GL), radiated emissions - test level: 47 dBμV/m QP class A at 230-1000 MHz conforming to IEC 55011, conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150-1500 kHz conforming to IEC 55011, radiated emissions - test level: 24 dBμV/m QP at 156-165 MHz conforming to Marine specification (LR, ABS, DNV, GL), radiated emissions - test level: 60...54 dBμV/m QP at 30-100 MHz conforming to Marine specification (LR, ABS, DNV, GL), radiated emissions - test level: 40 dBμV/m QP class A at 30-230 MHz conforming to IEC 55011, conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5-30 MHz conforming to IEC 55011, conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10-150 kHz conforming to IEC 55011, conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5-300 MHz conforming to IEC 55011, conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15-0.5 MHz conforming to IEC 55011 |
| Operating altitude | 0...2000 m |
| Vibration resistance | 0.7 gn at 13.2-100 Hz on panel mounting, 1 mm at 5-13.2 Hz on panel mounting, 3 gn at 8.7-150 Hz on symmetrical rail, 1 mm at 5-13.2 Hz on symmetrical rail |
| Shock resistance | 15 gn for 11 ms |
| Storage altitude | 0-3000 m |
| Standards | IEC 61131-2, UL 508 |
| Product certifications | C-Tick, cULus |
